Pinpoint Test E: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

E1 CHECK CIRCUIT 70 (LB/WH) BETWEEN THE DLC C251 AND THE RCM C310a FOR AN OPEN
- Key in OFF position.
- Deactivate the air bag system.
- Refer to AIR BAG RESTRAINT SYSTEMS .
- Disconnect: RCM C310a.
- Measure the resistance between the RCM C310a-11, circuit 70 (LB/WH), harness side and the DLC C251-7, circuit 70 (LB/WH), harness side.

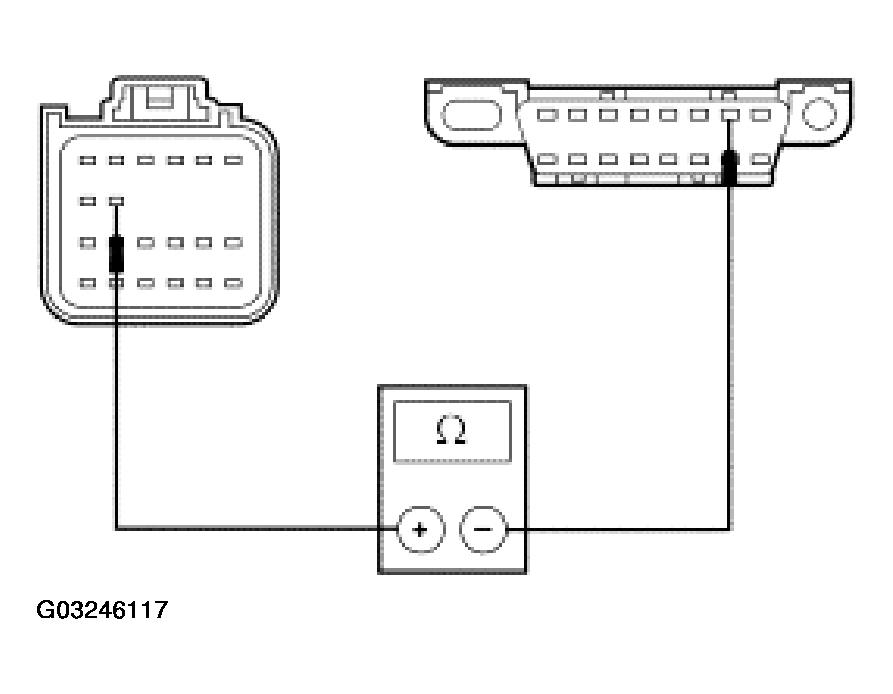

  Fig 1: Measuring Resistance Between RCM C310a-11, Circuit 70 (LB/WH), Harness Side And DLC C251-7, Circuit 70 (LB/WH), Harness Side
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
Yes

GO to E2

No

REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test. CARRY OUT the data link diagnostics test.
E2 CHECK FOR CORRECT RCM OPERATION
- Disconnect all the RCM connectors.
- Check for:
  - Corrosion
  - push-out pins
- Connect all the RCM connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
Yes

INSTALL a new RCM. Refer to AIR BAG RESTRAINT SYSTEMS CLEAR the DTCs. REPEAT the self-test. CARRY OUT the data link diagnostics test.

No

The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test. CARRY OUT the data link diagnostics test.
