Piston - Pin Diameter

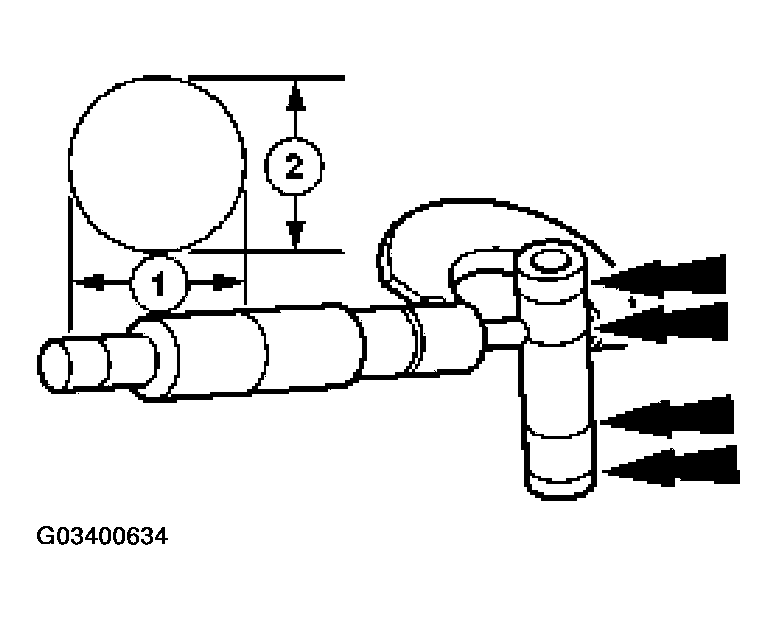

- Measure the piston pin diameter in two directions at the points shown in Fig 1. Verify the diameter is within specification.
- Refer to GENERAL SPECIFICATIONS for 3.8L engines or GENERAL SPECIFICATIONS for 4.6L engines.
- If out of specification, install new components as necessary. Refer to PISTON for 3.8L engines or PISTON for 4.6L engines.
