Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clips.

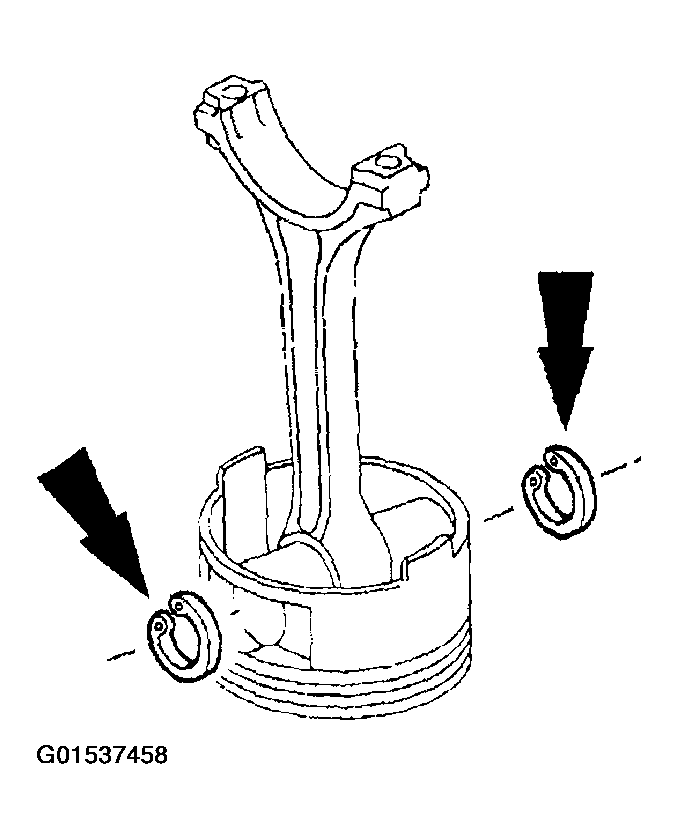

Fig 1: Removing Piston Pin Retaining Clips
Courtesy of FORD MOTOR CO.
Remove the piston pin from the piston and connecting rod assembly.

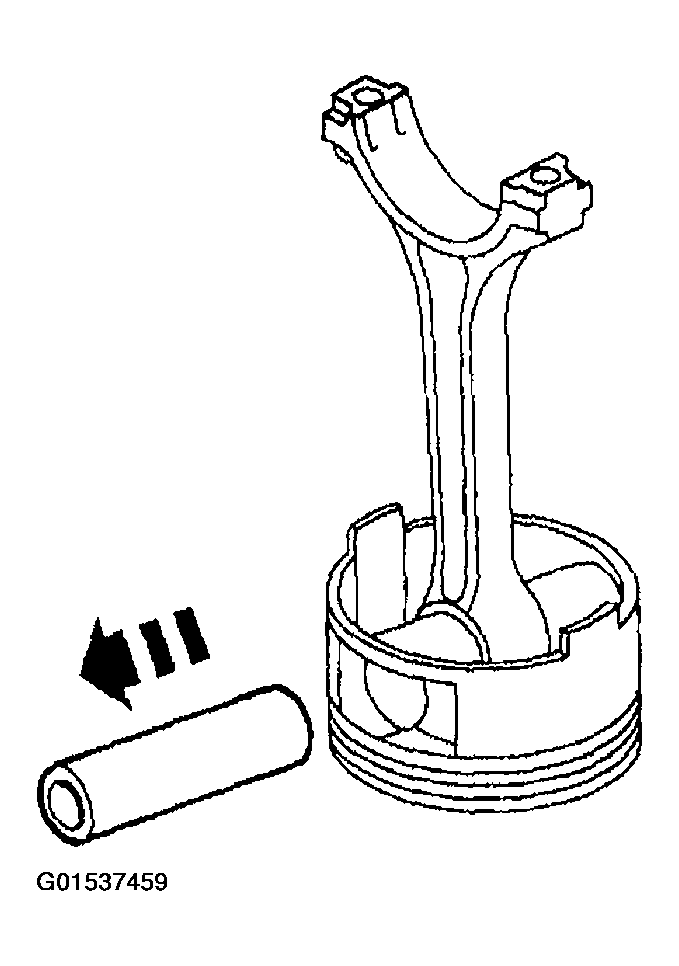

Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Remove the connecting rod from the piston.

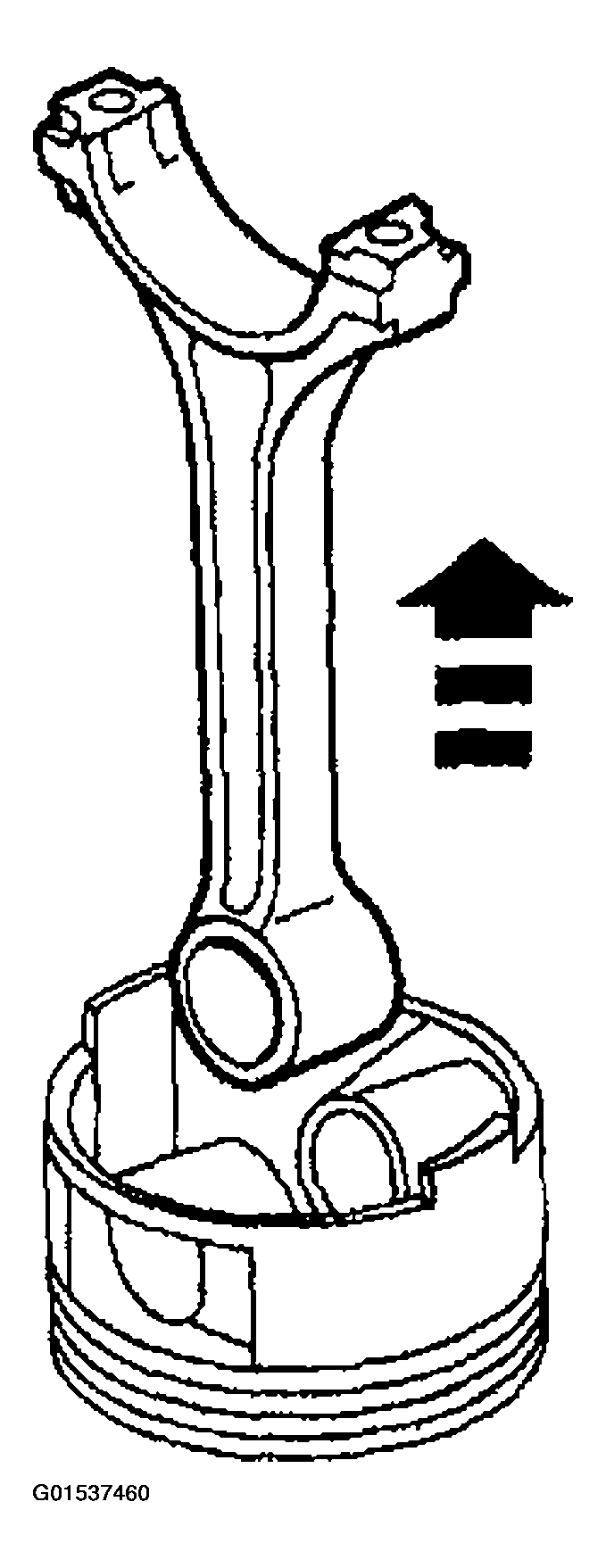

Fig 3: Removing Connecting Rod From Piston
Courtesy of FORD MOTOR CO.
Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
