Timing Drive Components: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Since the engine is not free-wheeling, if the crankshaft or the camshafts are moved in any manner during removal and installation, the crankshaft and camshaft must be resynchronized. These steps are located in Engine Assembly.

Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
Remove the crankshaft sensor ring from the crankshaft.

Fig 1: Removing Crankshaft Sensor Ring From Crankshaft
Courtesy of FORD MOTOR CO.

CAUTION: The caps must be marked for installation in their original location or damage to the engine may occur.

Fig 2: Removing Balance Shaft Bearing Caps

Courtesy of FORD MOTOR CO.

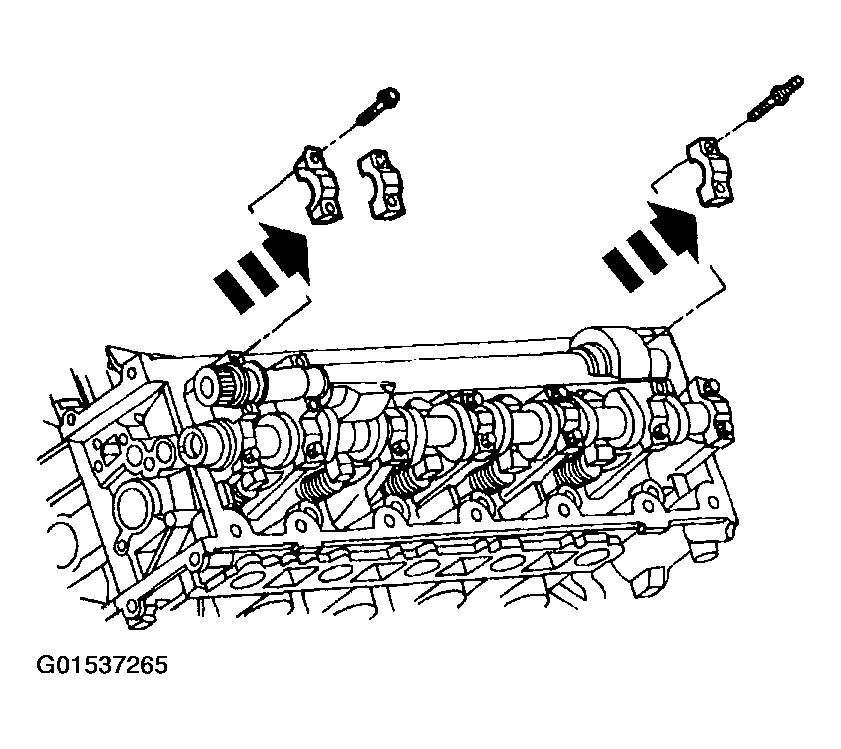

Remove the six bolts and remove the balance shaft bearing caps.

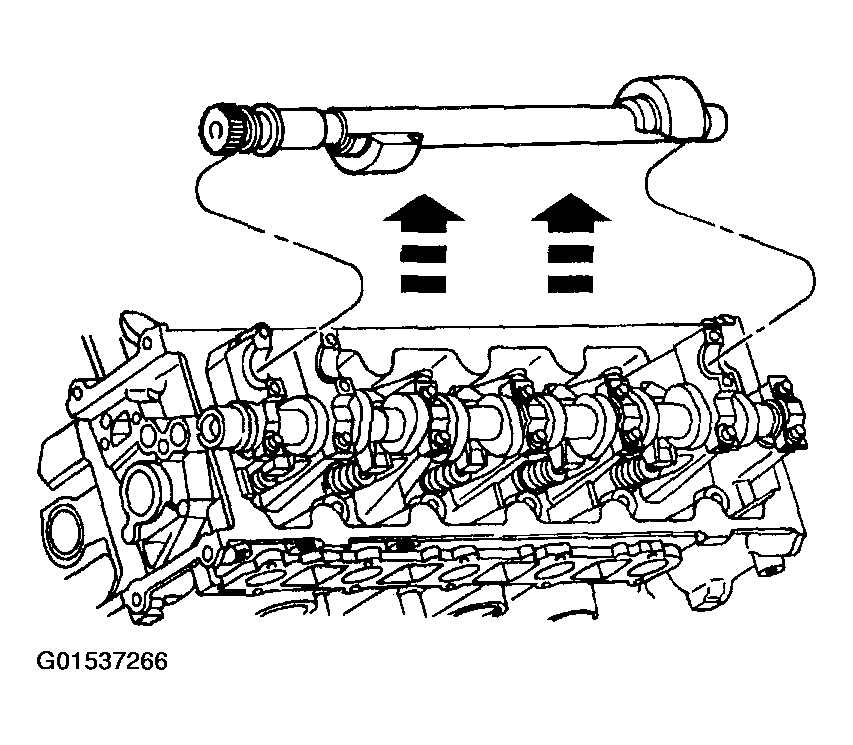

Remove the balance shaft.

Fig 3: Removing Balance Shaft
Courtesy of FORD MOTOR CO.

CAUTION: Unless otherwise instructed, at no time when the timing chains are removed and the cylinder heads are installed may the crankshaft or camshaft be rotated. Severe piston and valve damage will occur.

Fig 4: Rotating Crankshaft For Aligning Timing Mark On RH Camshaft Sprocket And LH Camshaft Sprocket

Courtesy of FORD MOTOR CO.

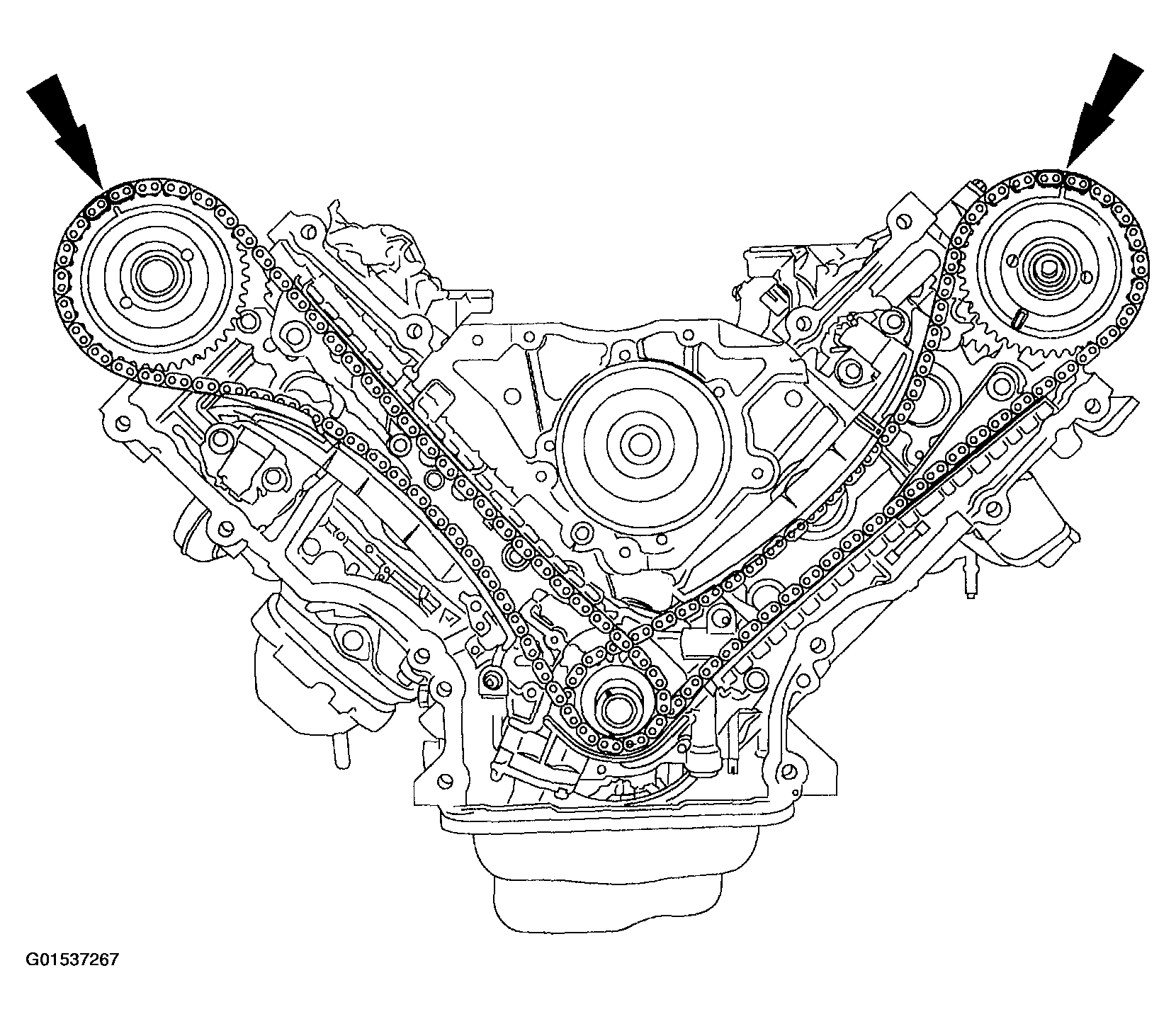

Rotate the crankshaft until the timing mark on the RH camshaft sprocket is approximately at the 11 o'clock position and the timing mark on the LH camshaft sprocket is approximately at the 12 o'clock position.

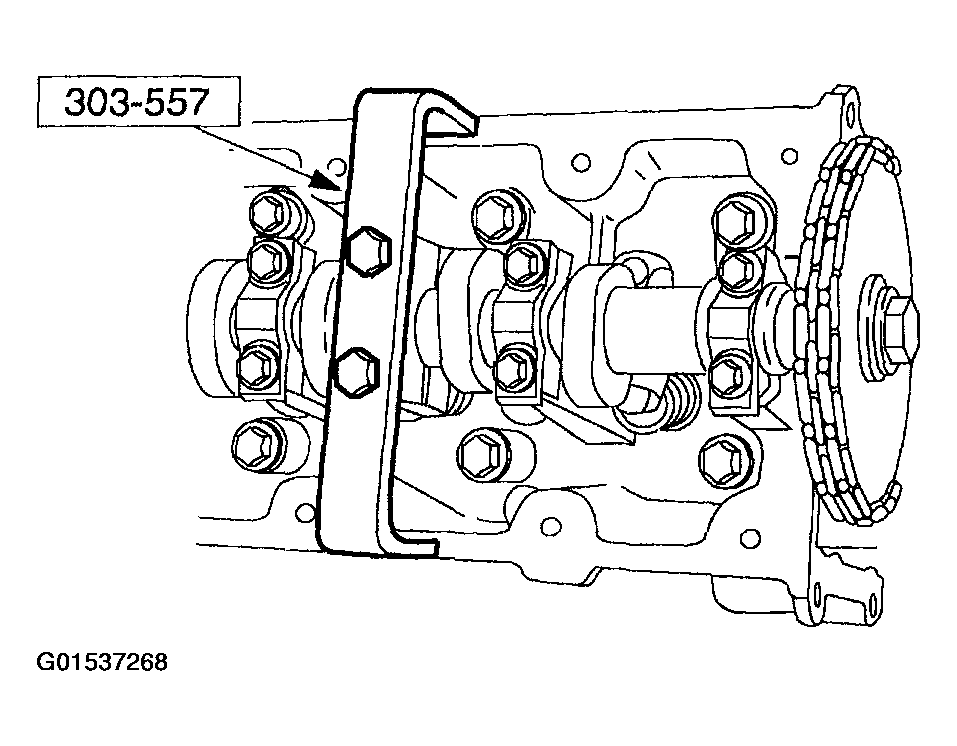

Install and carefully tighten the special tools on the camshafts.

Fig 5: Tightening Special Tools On Camshafts
Courtesy of FORD MOTOR CO.

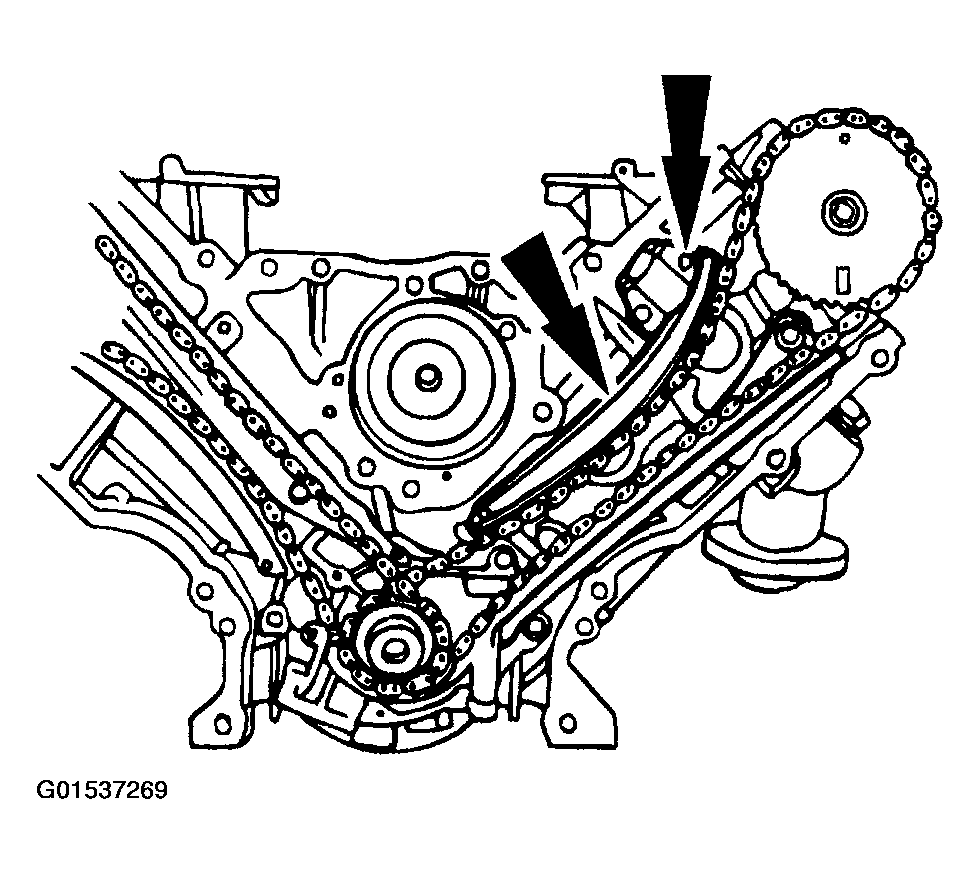

Remove the bolts and the timing chain tensioners. Remove the timing chain tensioner arms from the dowel pins.

Fig 6: Removing Timing Chain Tensioner Arms From Dowel Pins
Courtesy of FORD MOTOR CO.

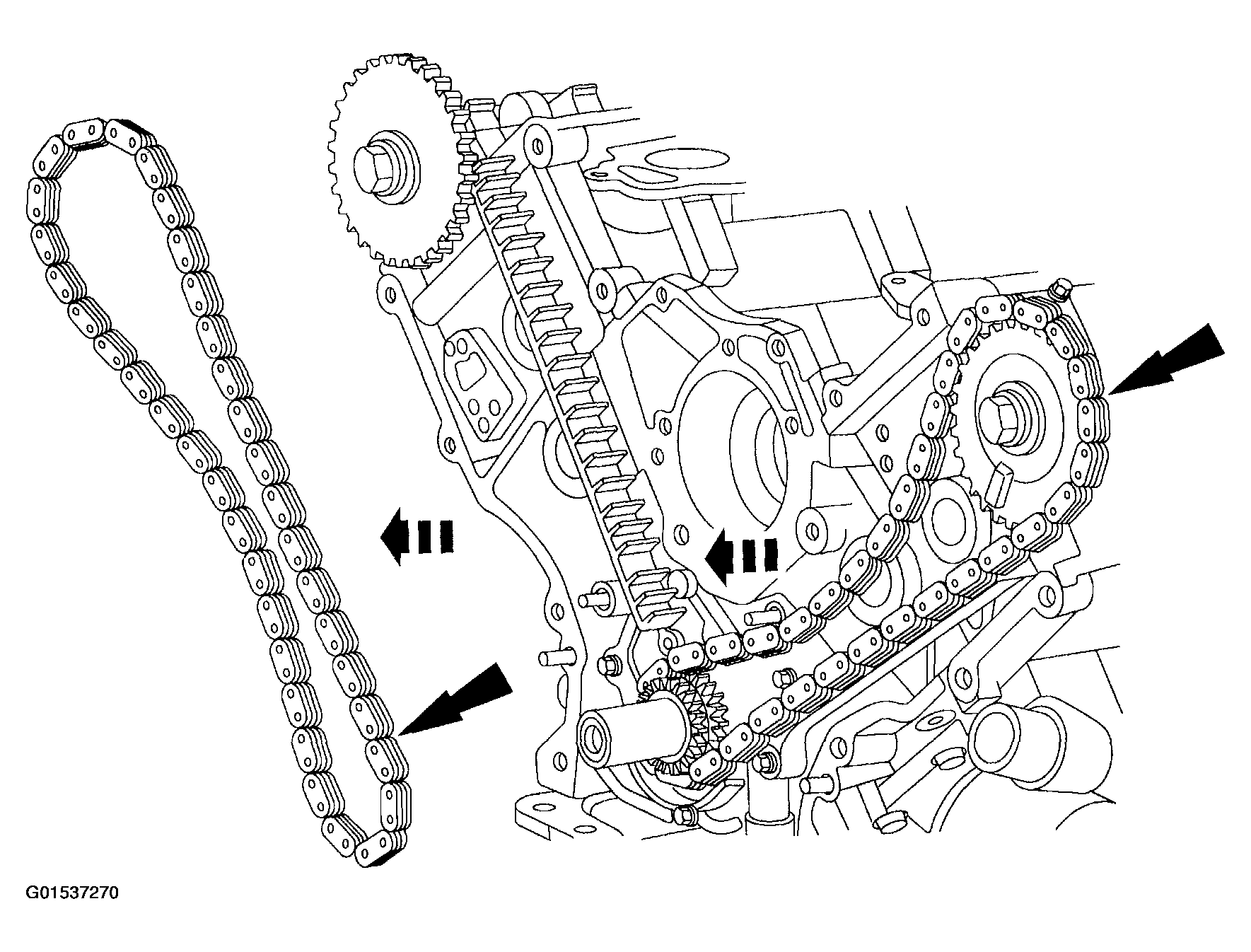

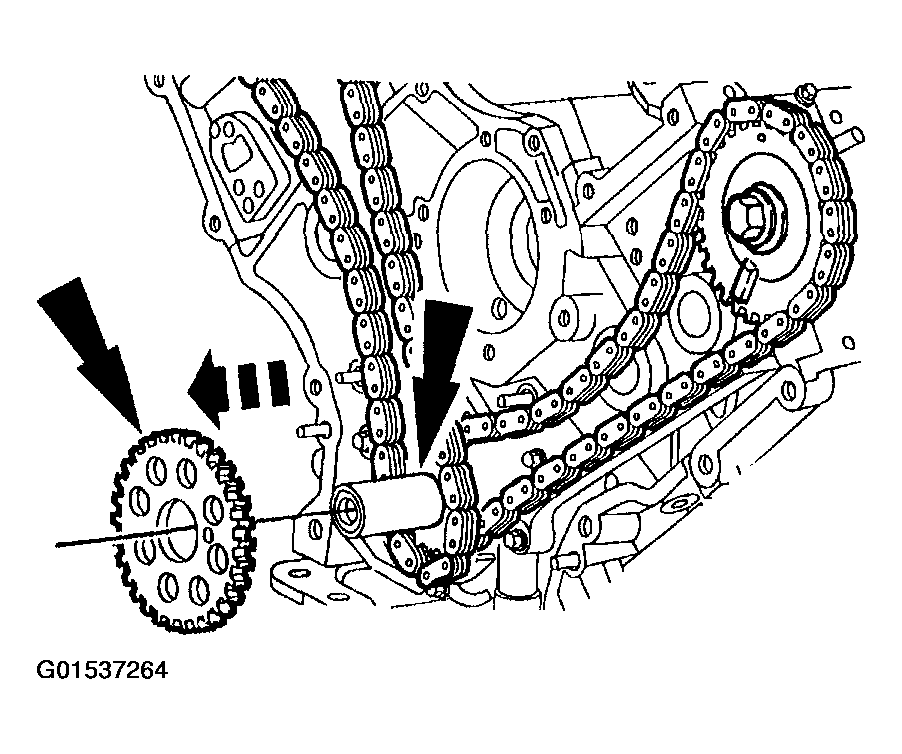

Remove the LH and RH timing chain and the crankshaft sprockets.
- Remove the RH timing chain from the camshaft sprocket.
- Remove the RH timing chain from the crankshaft sprocket.
- Remove the LH timing chain from the camshaft sprocket.
- Remove the LH timing chain and crankshaft sprocket.
Fig 7: Removing LH And RH Timing Chain And Crankshaft Sprockets
Courtesy of FORD MOTOR CO.

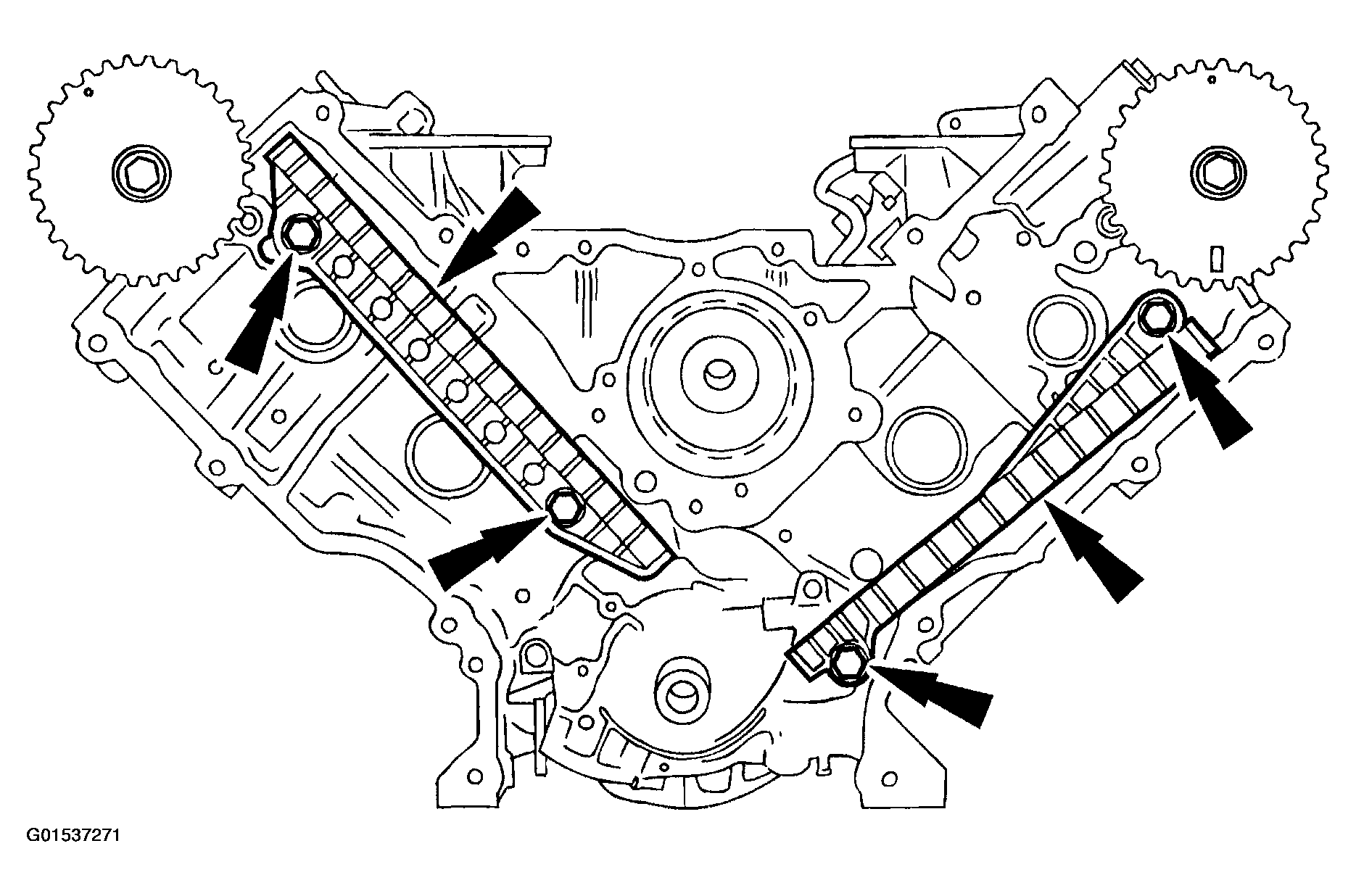

Remove the timing chain guides.
- Remove the bolts.
- Remove the timing chain guides.
Fig 8: Removing Timing Chain Guides
Courtesy of FORD MOTOR CO.
