Generic Electronic Module (Gem) Connector End View (C201e)

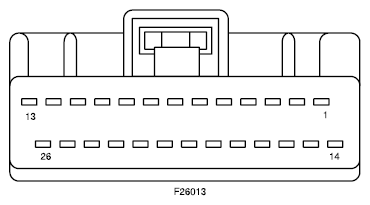

Fig 1: Identifying Generic Electronic Module (GEM) Connector (C201E)
G10356965Courtesy of FORD MOTOR CO.
Pin Circuit Circuit function
1 ... not used
2 ... not used
3 ... not used
4 ... not used
5 682 (DB) Wiper/washer, return
6 70 (LB/WH) ISO Bus
7 14 (BN) Power, Exterior lamps
8 911 (WH/LG) Voltage supplied in Start and Run (overload protected)
9 158 (BK/PK) Key warning switch (11A127), input
10 1083 (LB/BK) Air bag, tone driver
11 1032 (WH/BK) Park lamp relay, control
12 6 (YE/LG) Horn relay, control
13 128 (VT/YE) Brake indicator, control
14 ... not used
15 ... not used
16 ... not used
17 ... not used
18 684 (PK/YE) Wiper/washer, input
19 680 (LB/OG) Wiper/washer, delay input
20 140 (BK/PK) Voltage supplied in reverse
21 706 (GY) Power, input, Main light switch (11654), to, Generic Electronic Module (GEM) (14B205)
22 1002 (BK/PK) Voltage in Run or Accessory (overload protected)
23 190 (WH/OG) not used
24 ... not used
25 599 (PK/LG) Luggage compartment lid release relay, control
26 450 (DG/LG) Safety belt indicator, feed
