Pinpoint Test A: Steering System Noise

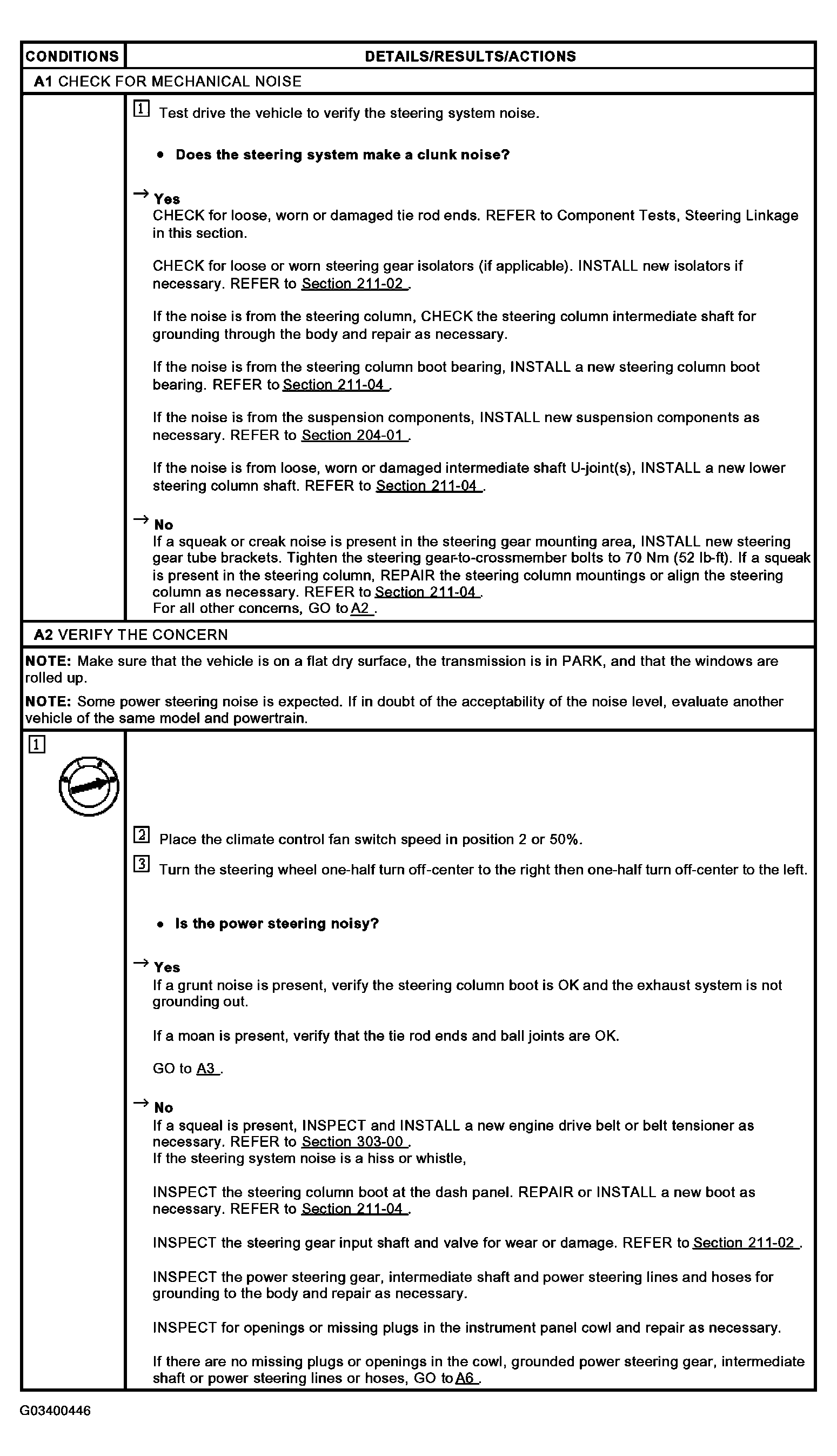

Fig 1: Identifying Pinpoint Test Chart A: Steering System Noise (A1-A2)
G03400446Courtesy of FORD MOTOR CO.

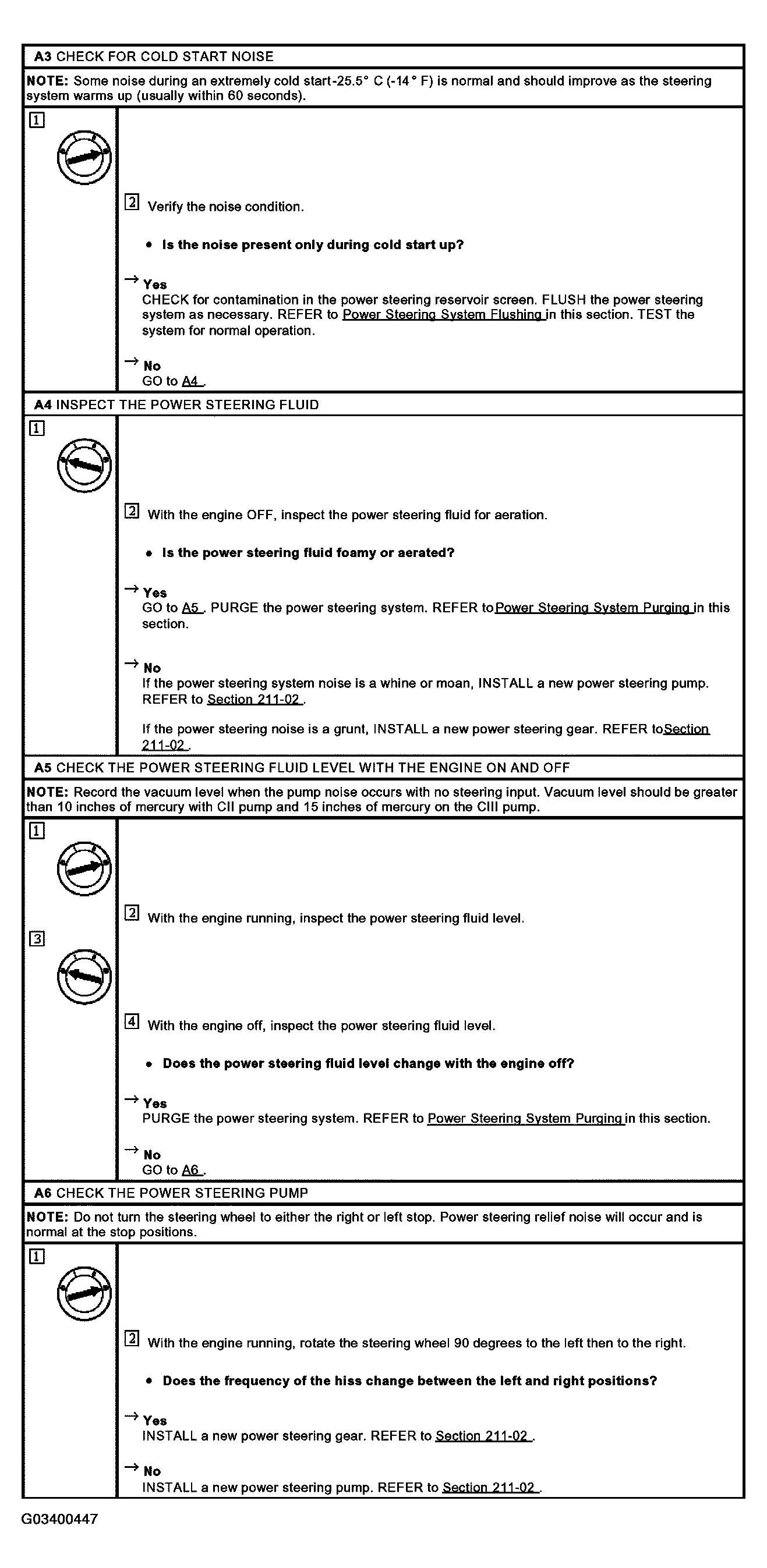

Fig 2: Identifying Pinpoint Test Chart A: Steering System Noise (A3-A6)
G03400447Courtesy of FORD MOTOR CO.
