WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

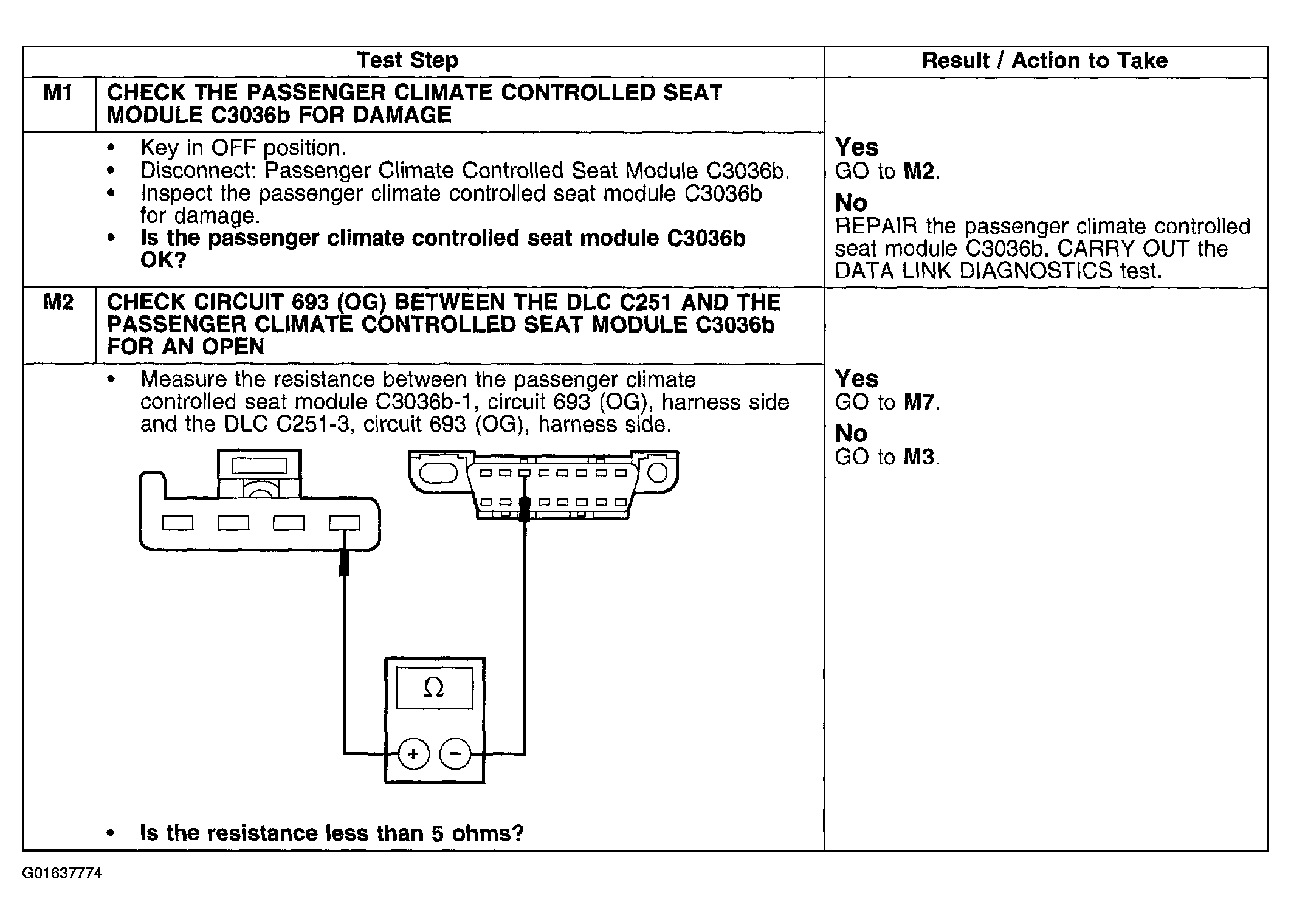

Fig 1: Pinpoint Test M: The Passenger Climate Controlled Seat Module Does Not Respond To The Diagnostic Tool (Steps M1 & M2)
Courtesy of FORD MOTOR CO.

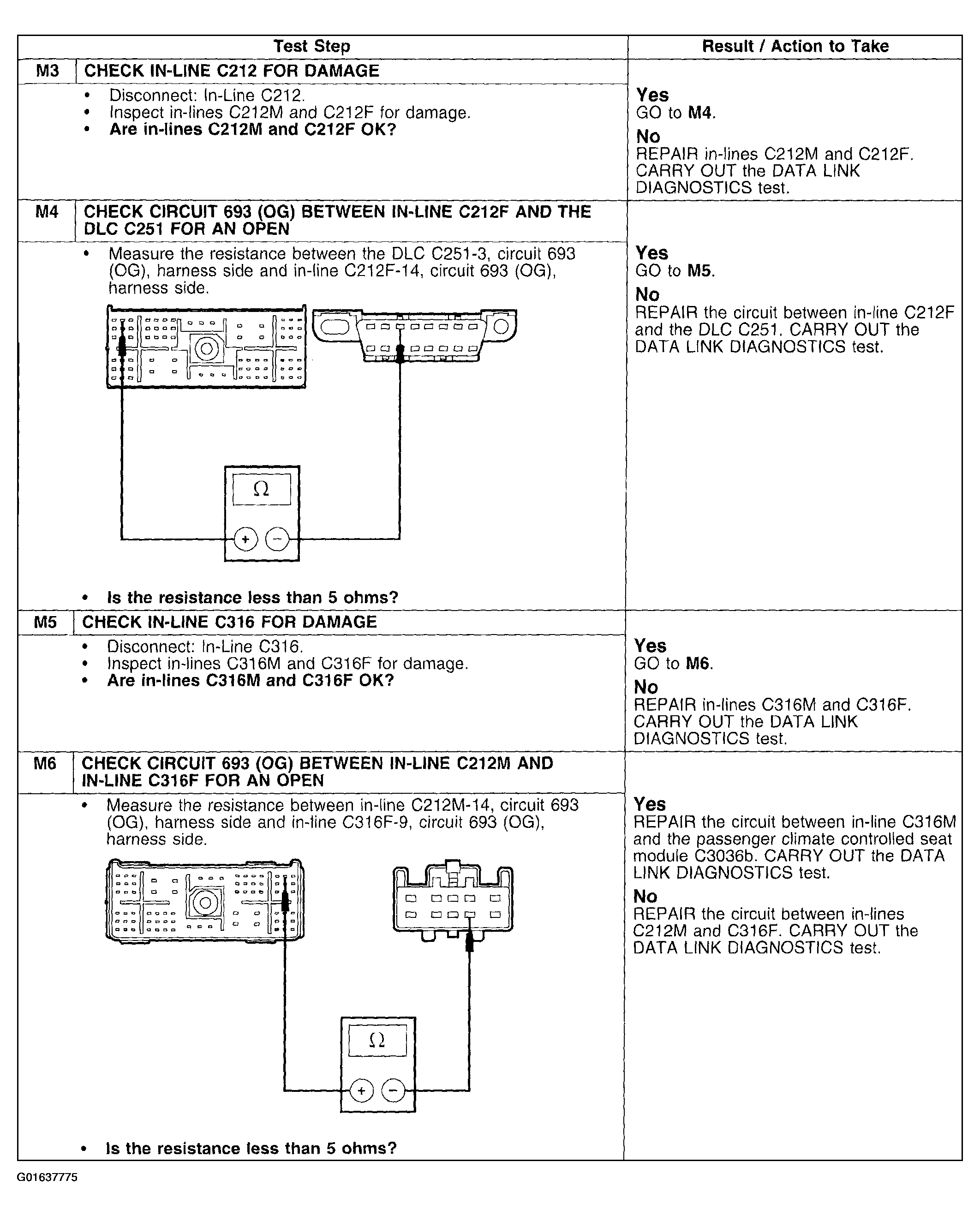

Fig 2: Pinpoint Test M: The Passenger Climate Controlled Seat Module Does Not Respond To The Diagnostic Tool (Steps M3-M6)
Courtesy of FORD MOTOR CO.

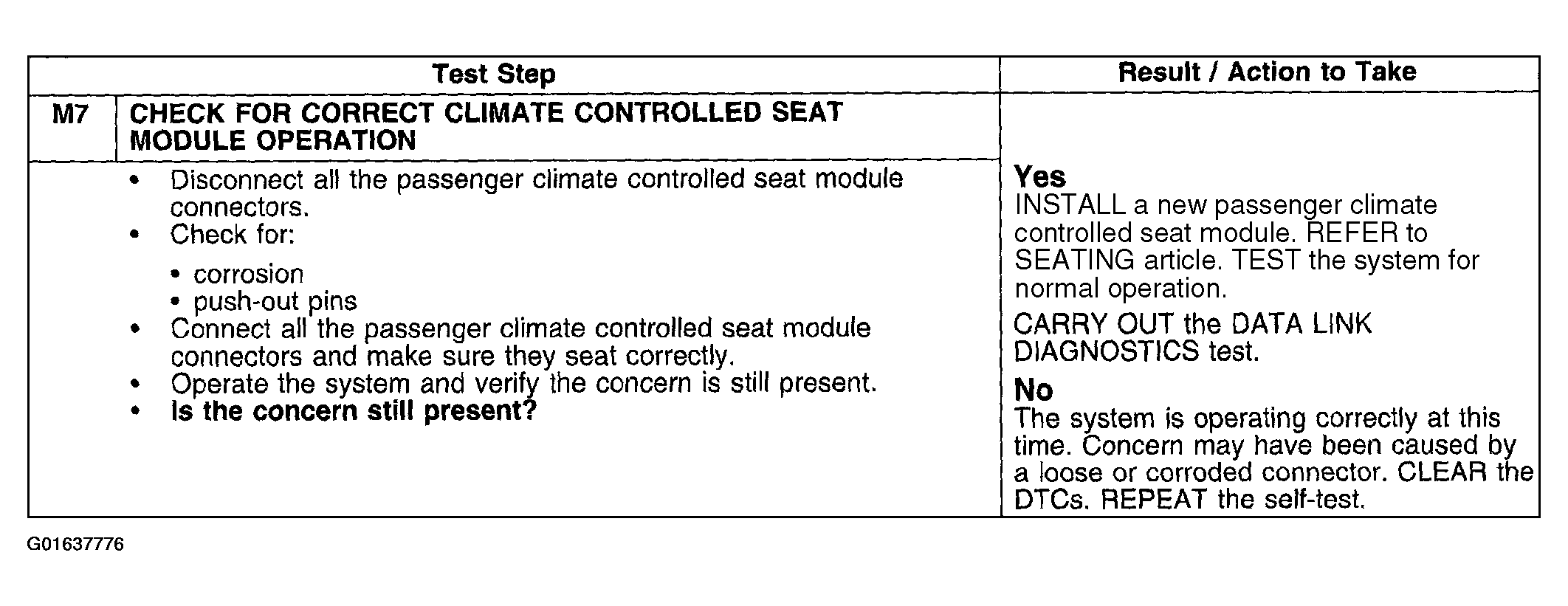

Fig 3: Pinpoint Test M: The Passenger Climate Controlled Seat Module Does Not Respond To The Diagnostic Tool (Step M7)
