WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

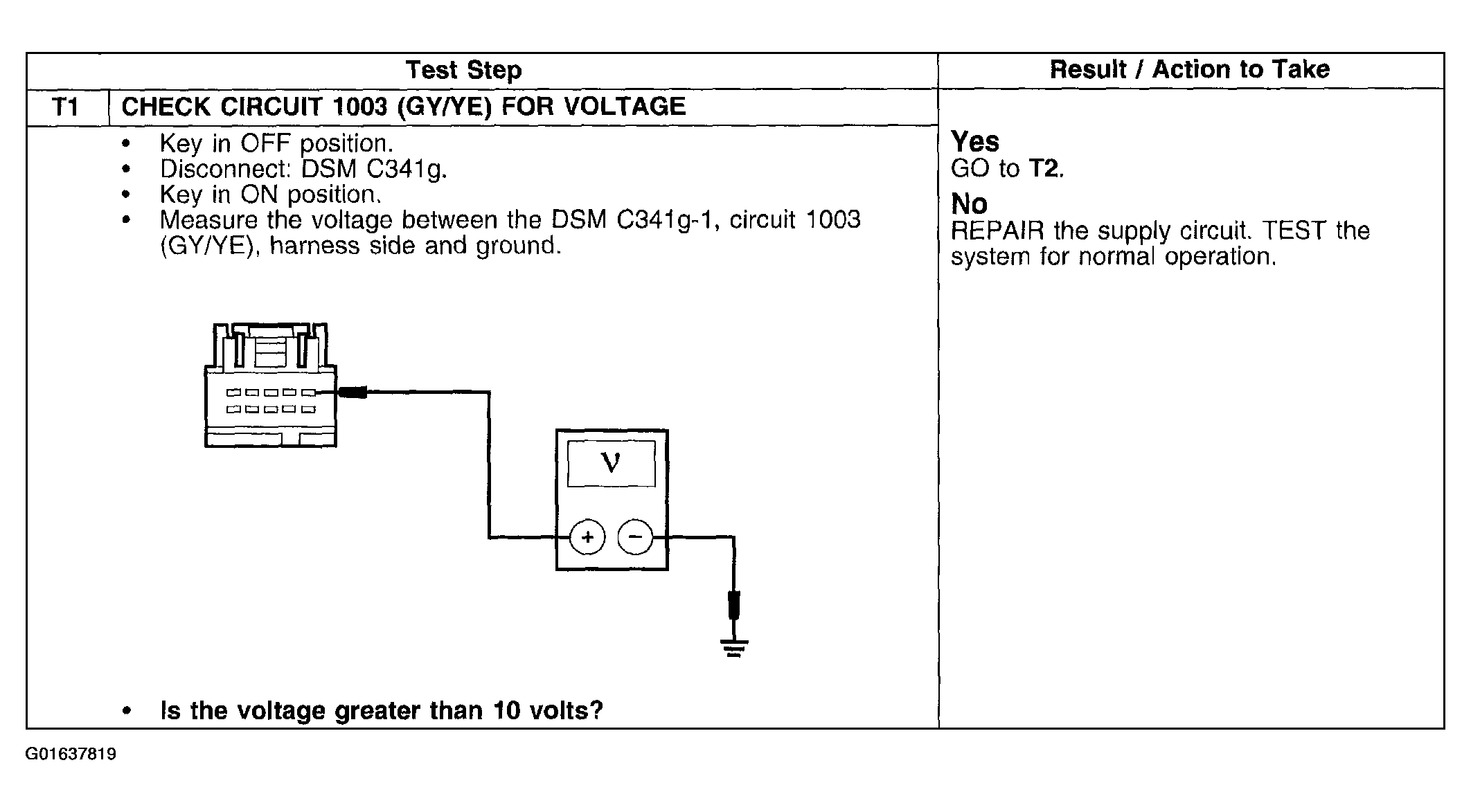

Fig 1: Pinpoint Test T: No Communication With The Driver Seat Module (DSM) (Step T1)
Courtesy of FORD MOTOR CO.

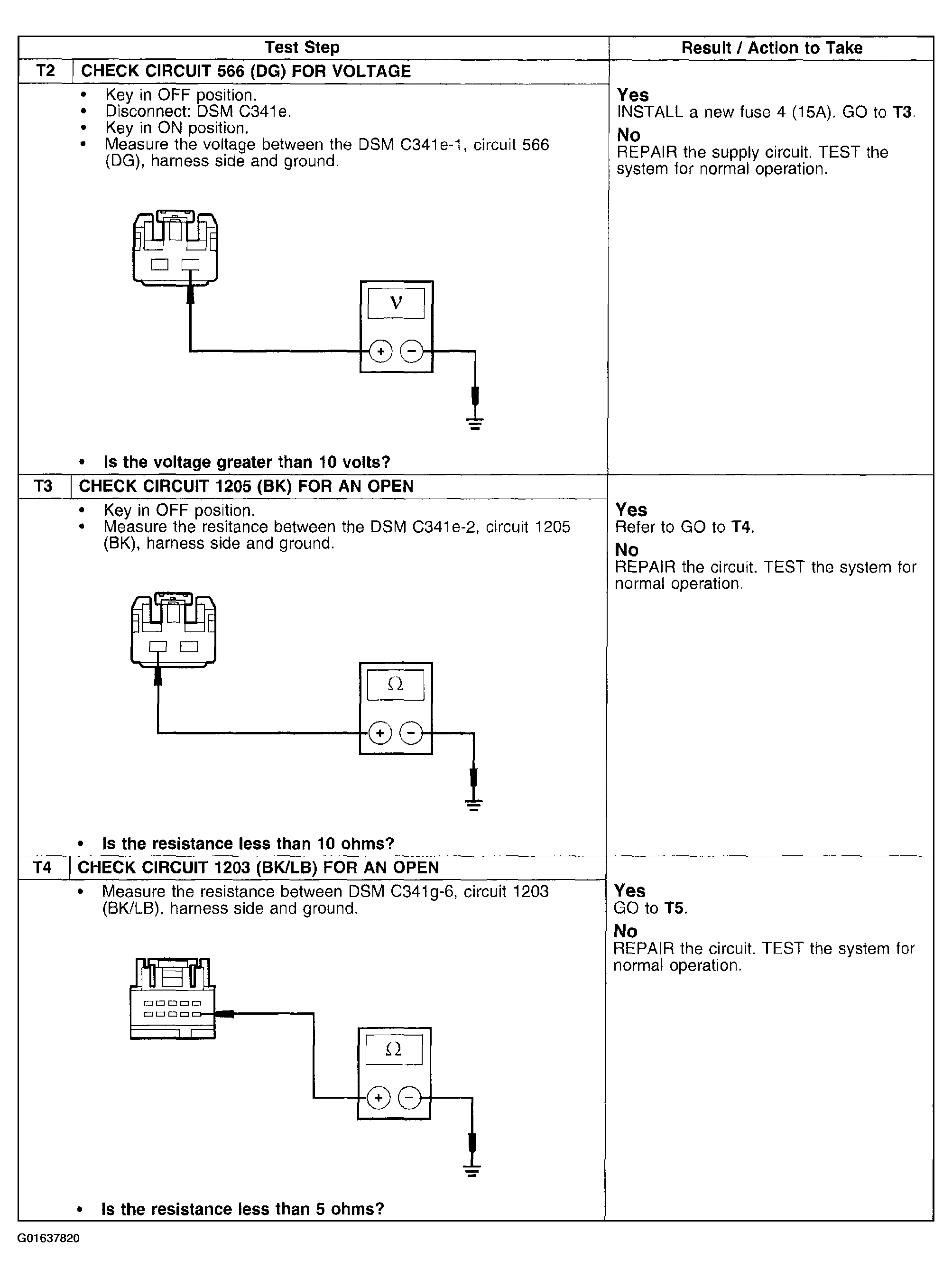

Fig 2: Pinpoint Test T: No Communication With The Driver Seat Module (DSM) (Steps T2-T4)
Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test T: No Communication With The Driver Seat Module (DSM) (Steps T2-T4)
