Pinpoint Test A: Steering System Noise

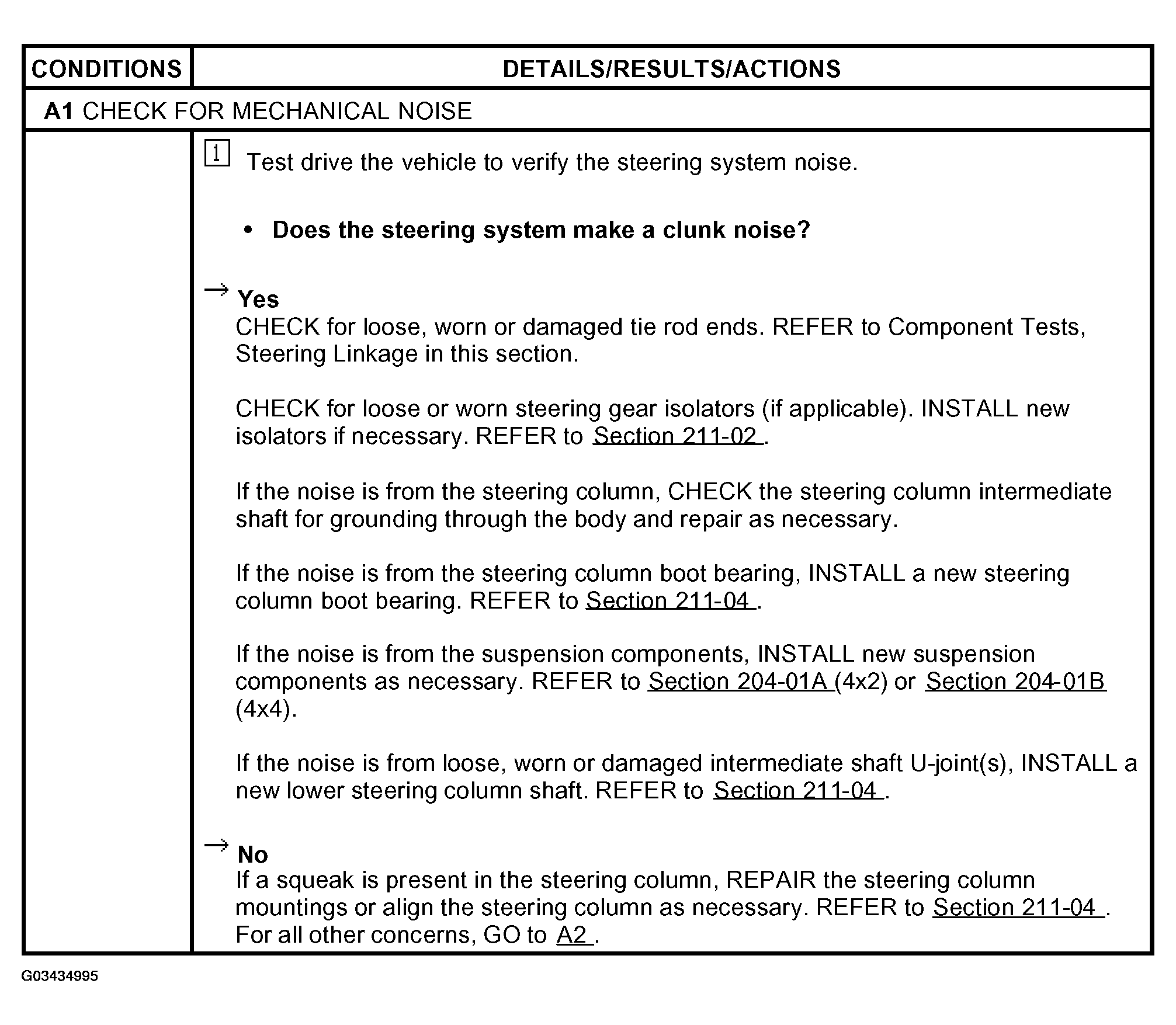

Fig 1: Pinpoint Test A: Steering System Noise (A1)
G03434995Courtesy of FORD MOTOR CO.

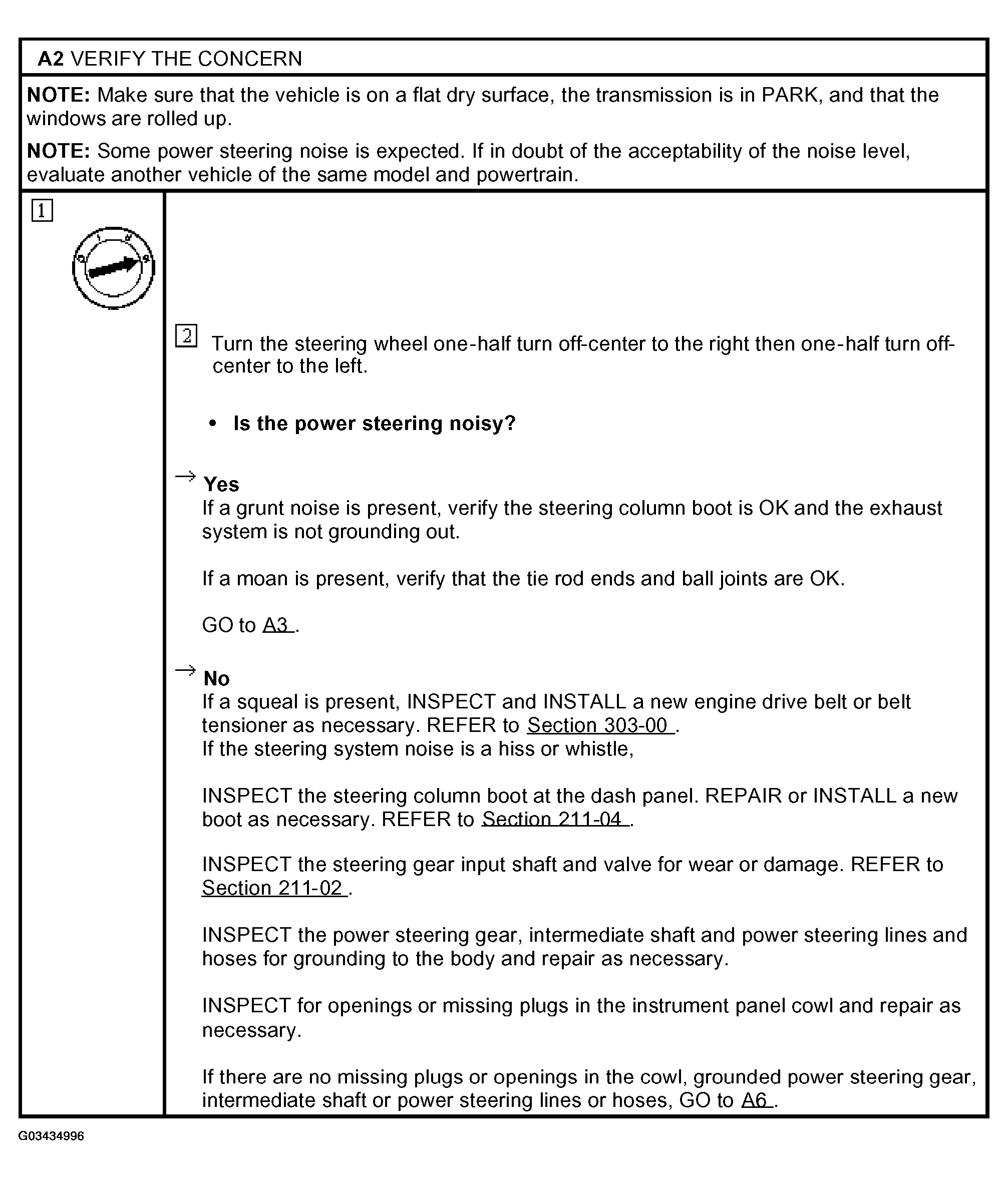

Fig 2: Pinpoint Test A: Steering System Noise (A2)
G03434996Courtesy of FORD MOTOR CO.

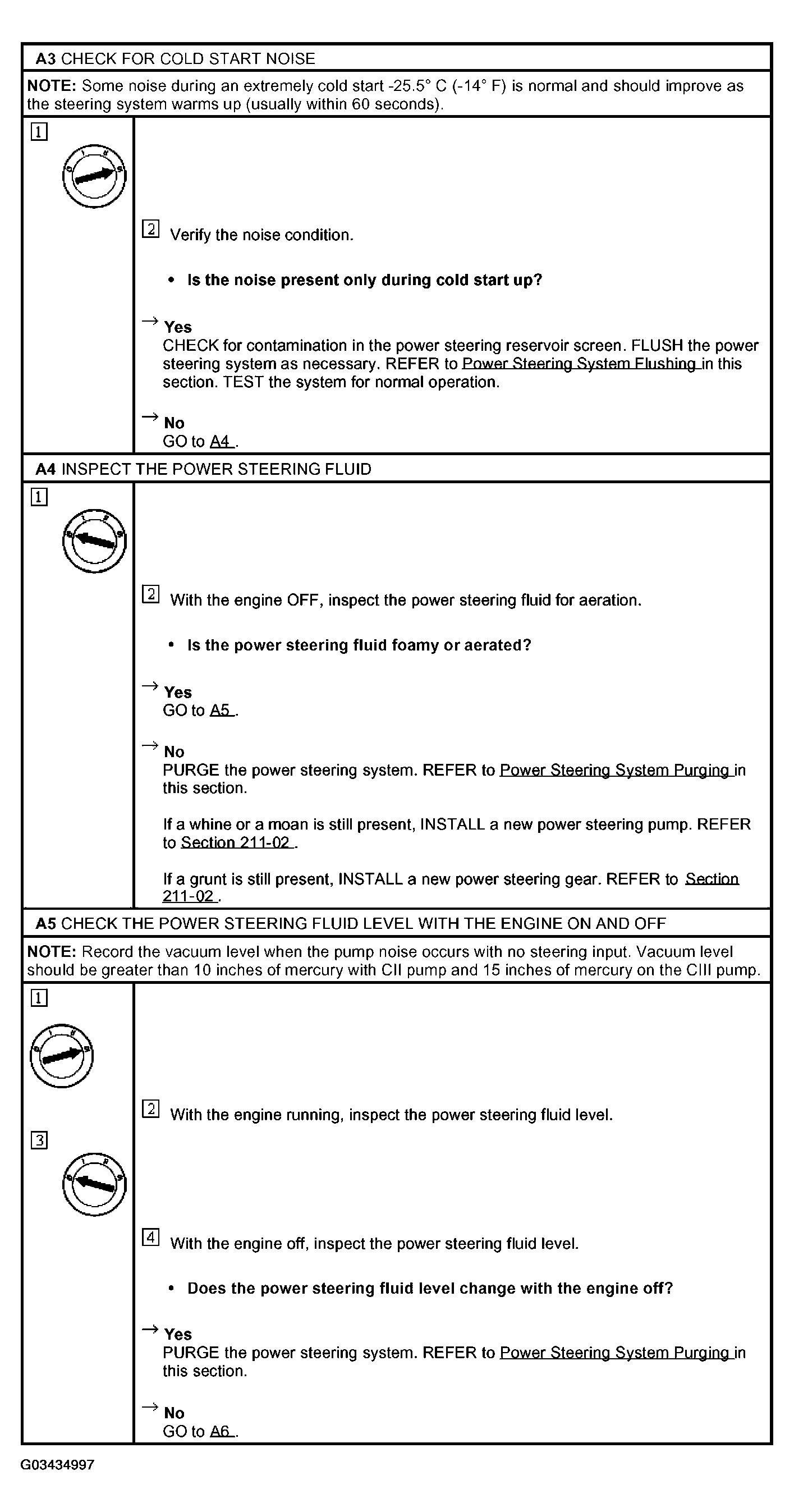

Fig 3: Pinpoint Test A: Steering System Noise (A3-A5)
G03434997Courtesy of FORD MOTOR CO.

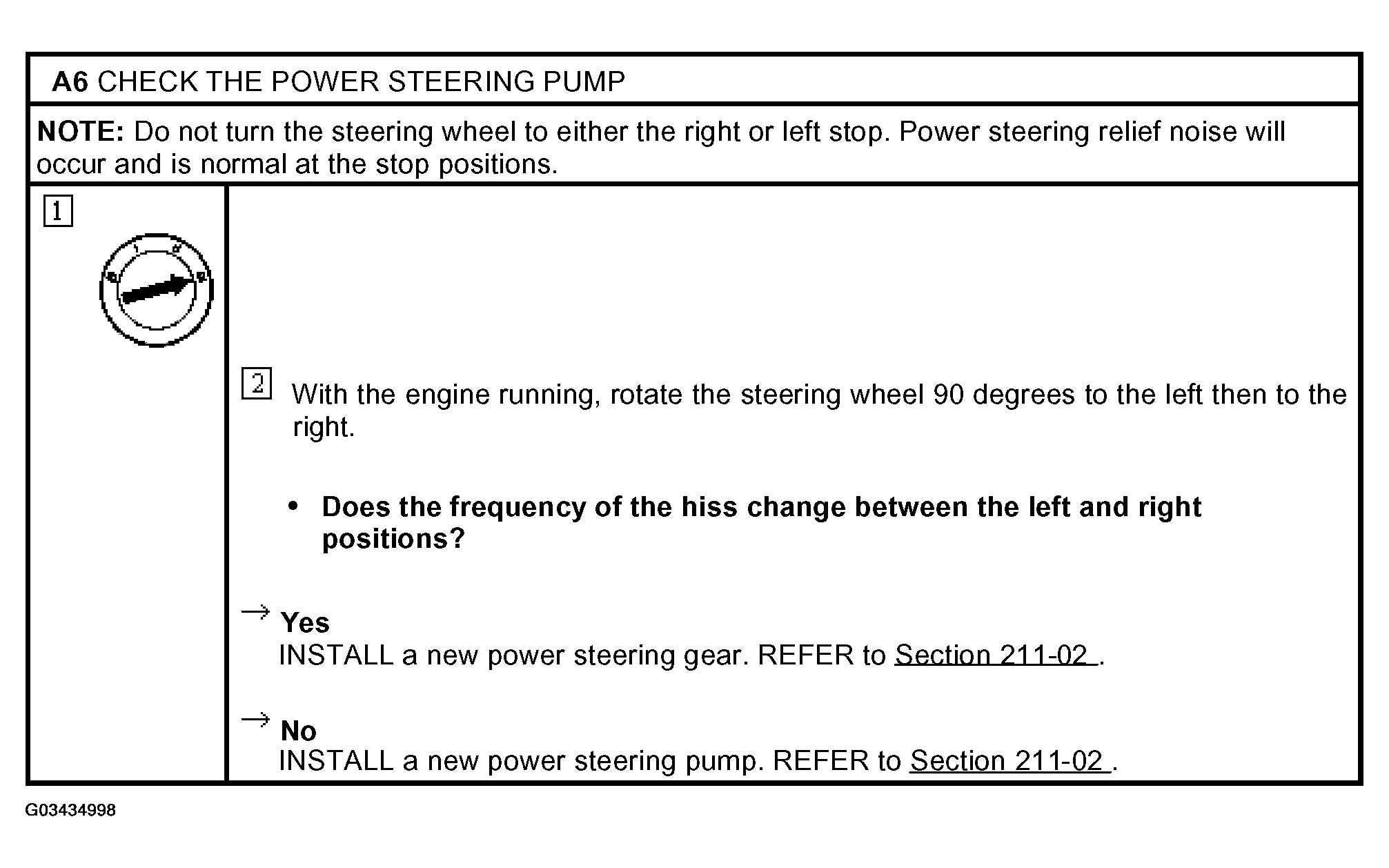

Fig 4: Pinpoint Test A: Steering System Noise (A6)
G03434998Courtesy of FORD MOTOR CO.
