Pinpoint Test B: Steering Is Very Difficult/Very Easy

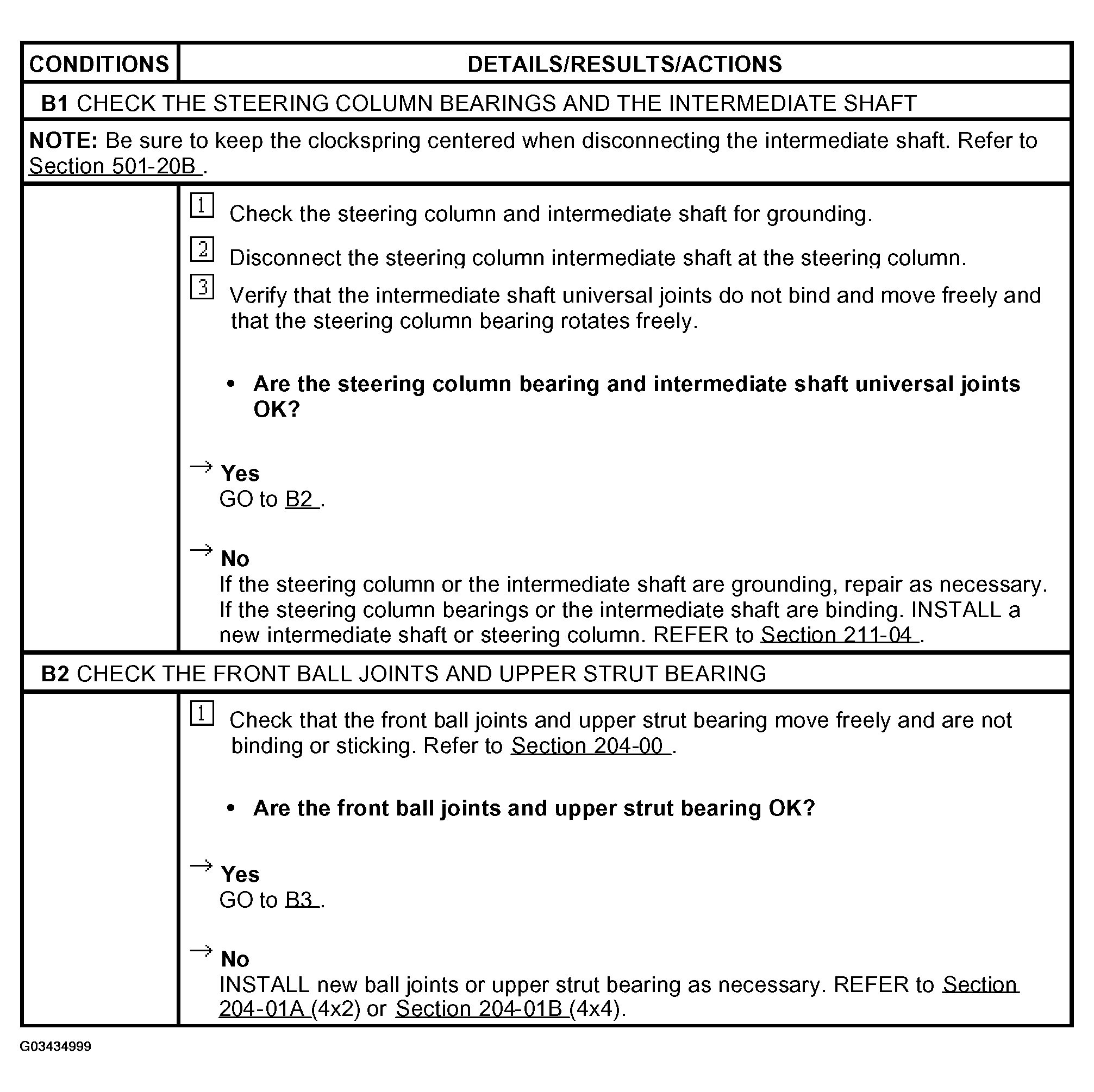

Fig 1: Pinpoint Test B: Steering Is Very Difficult/Very Easy (B1)
G03434999Courtesy of FORD MOTOR CO.

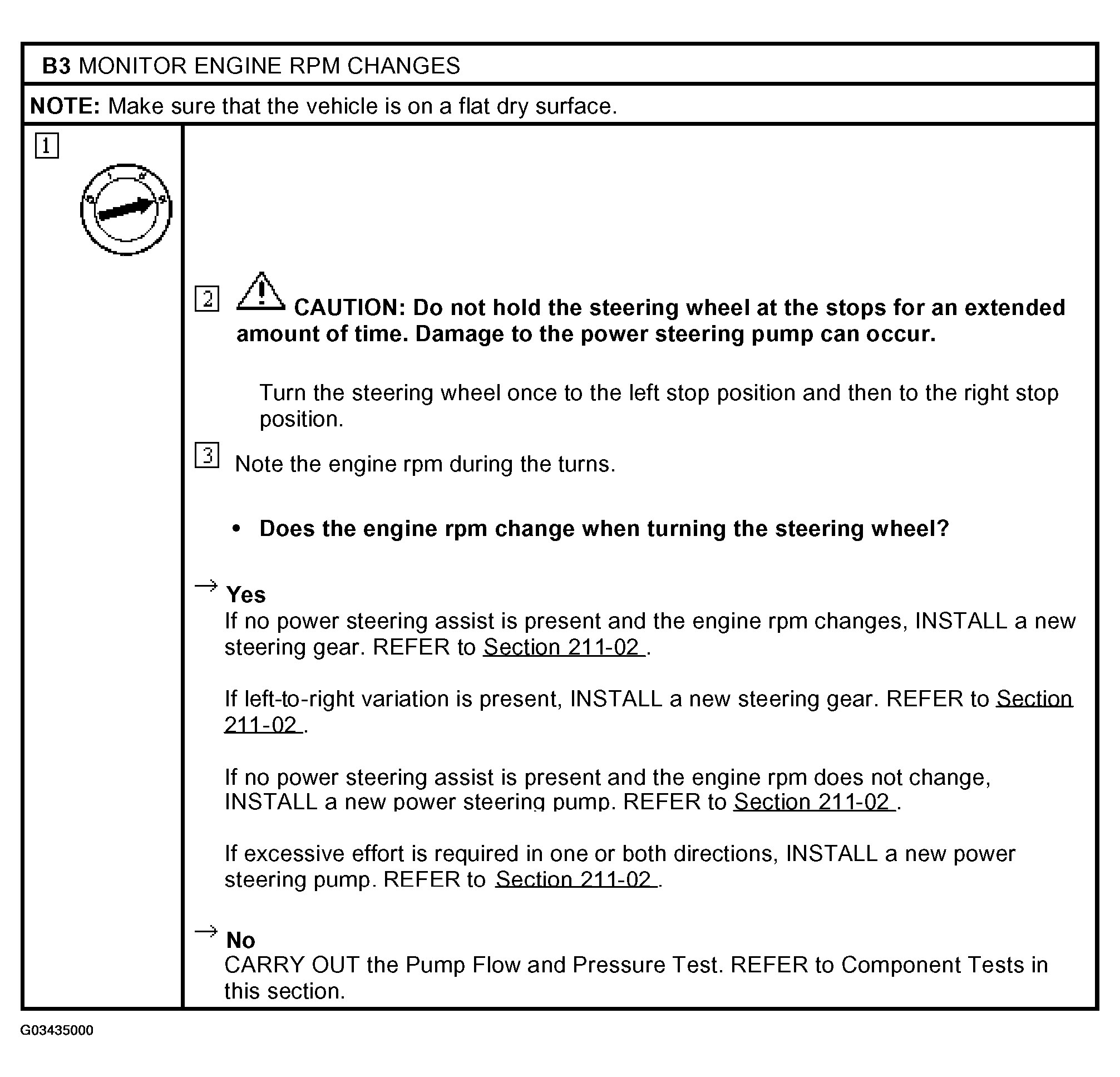

Fig 2: Pinpoint Test B: Steering Is Very Difficult/Very Easy (B2)
G03435000Courtesy of FORD MOTOR CO.
