Pinpoint Test D: Steering System Drift/Pull/Wander

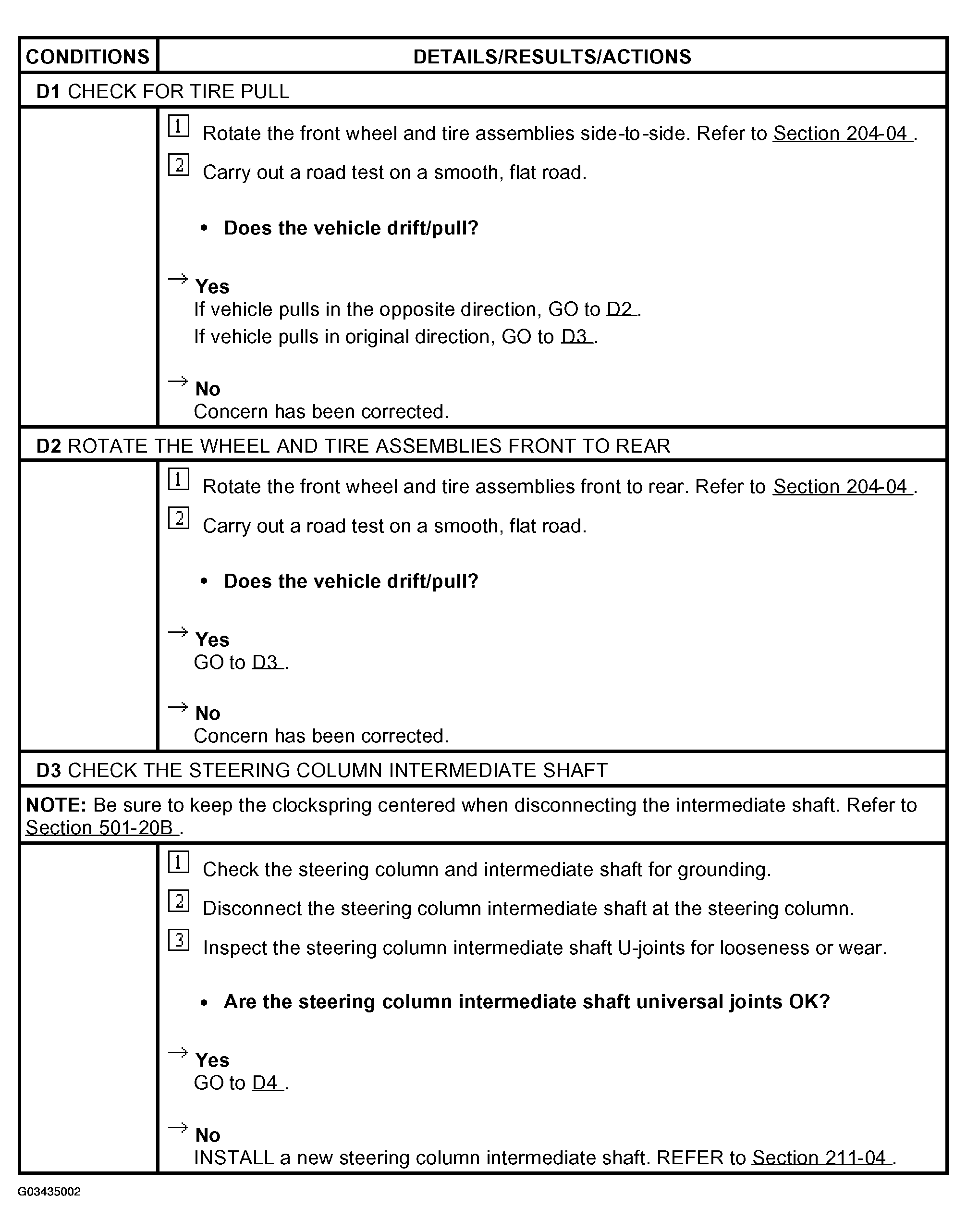

Fig 1: Pinpoint Test D: Steering System Drift/Pull/Wander (D1-D3)
G03435002Courtesy of FORD MOTOR CO.

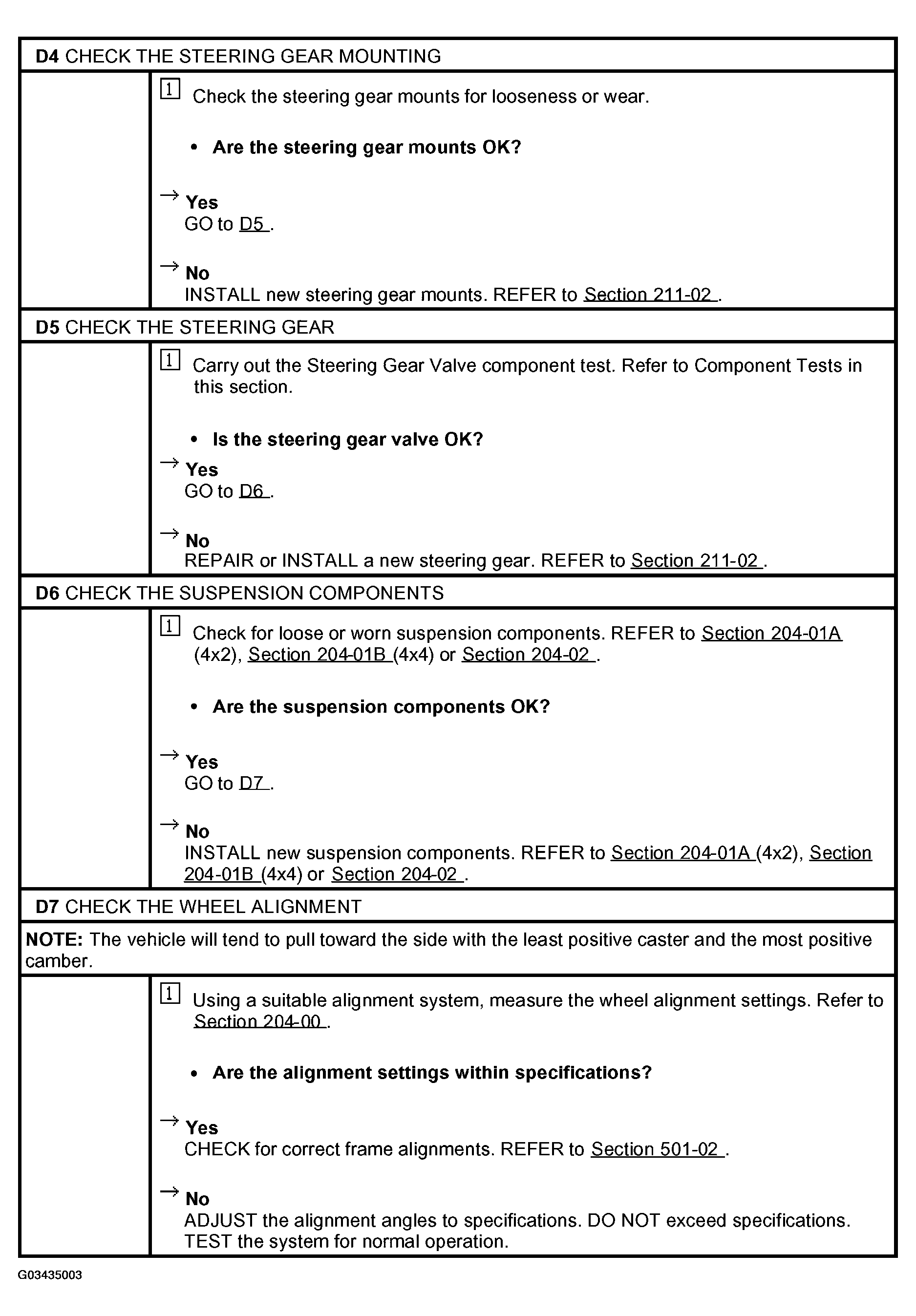

Fig 2: Pinpoint Test D: Steering System Drift/Pull/Wander (D4-D7)
G03435003Courtesy of FORD MOTOR CO.
