Central Security Module

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the passenger air bag module.

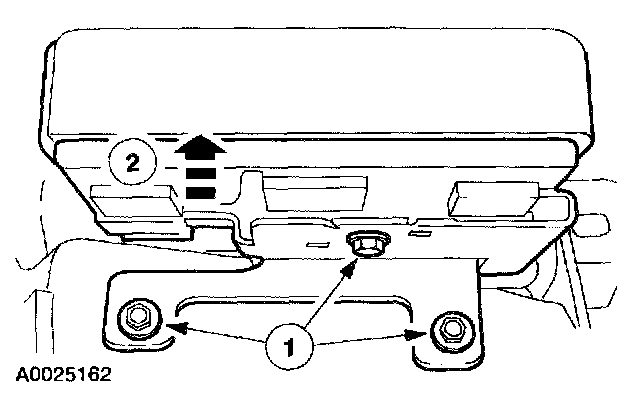

3. Reposition the central security module.
1 Remove the three screws.
2 Pull the central security module straight out from the bracket.

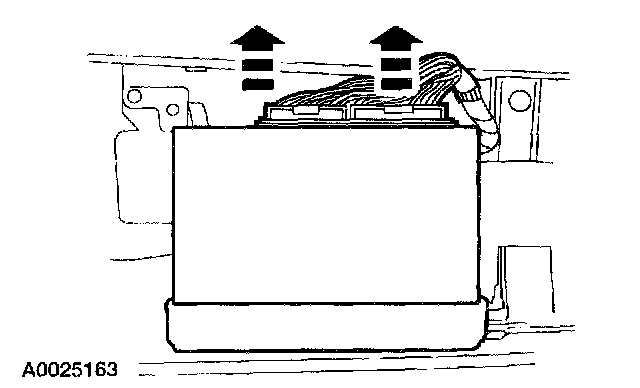

4. Disconnect the two electrical connectors.

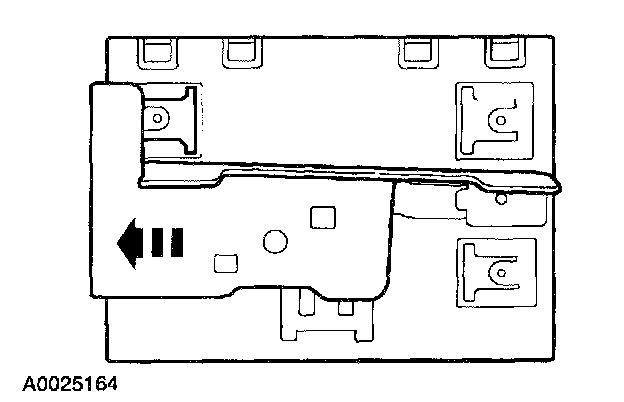

5. Remove the bracket from the central security module.

INSTALLATION
1. To install, reverse the removal procedure.
