Home >> Ford >> 2002 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Accessories and Optional Equipment >> General Module >> Testing and Inspection >> Pinpoint Tests >> Generic Electronic Module (GEM)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Generic Electronic Module (GEM)

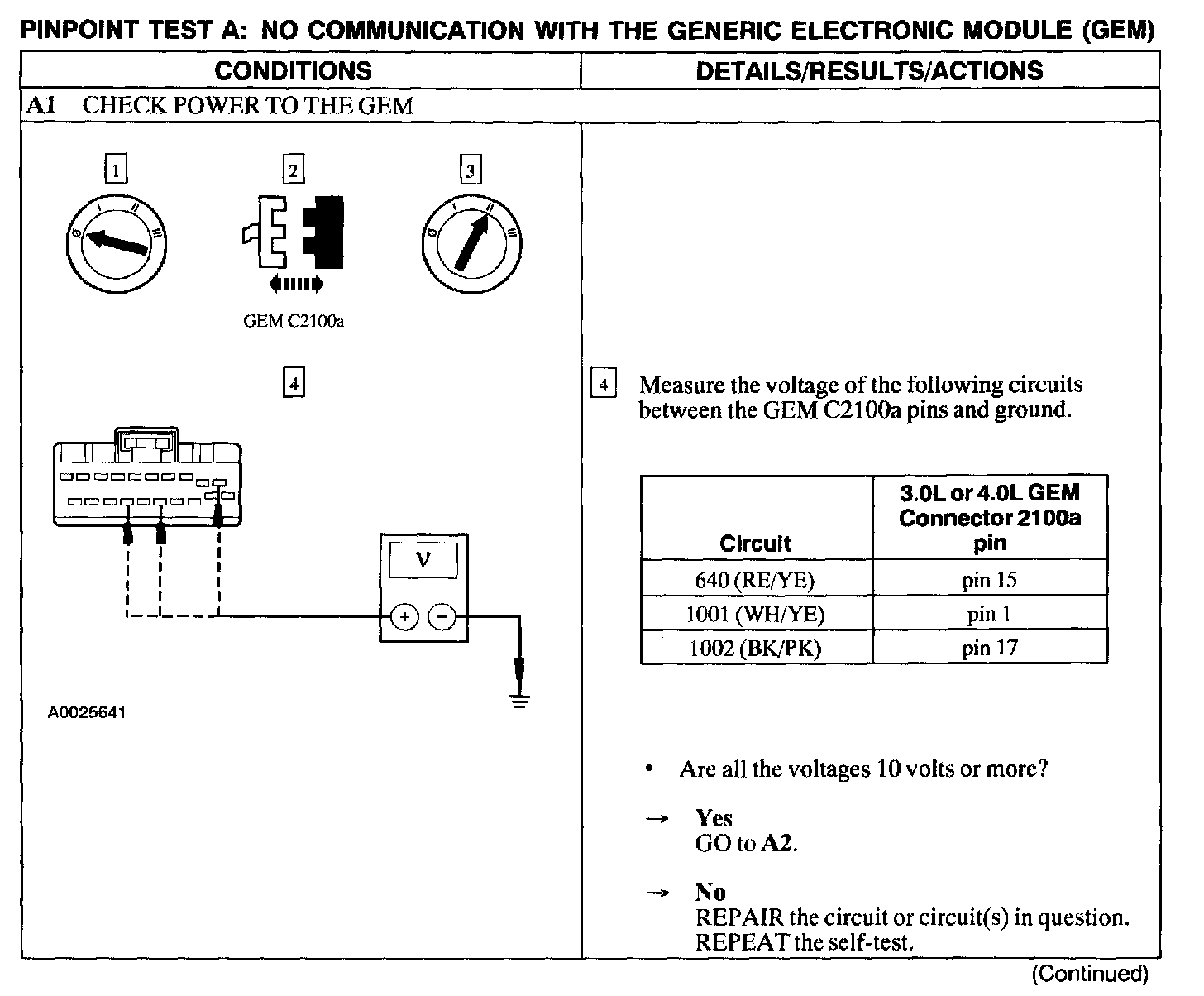

A1:

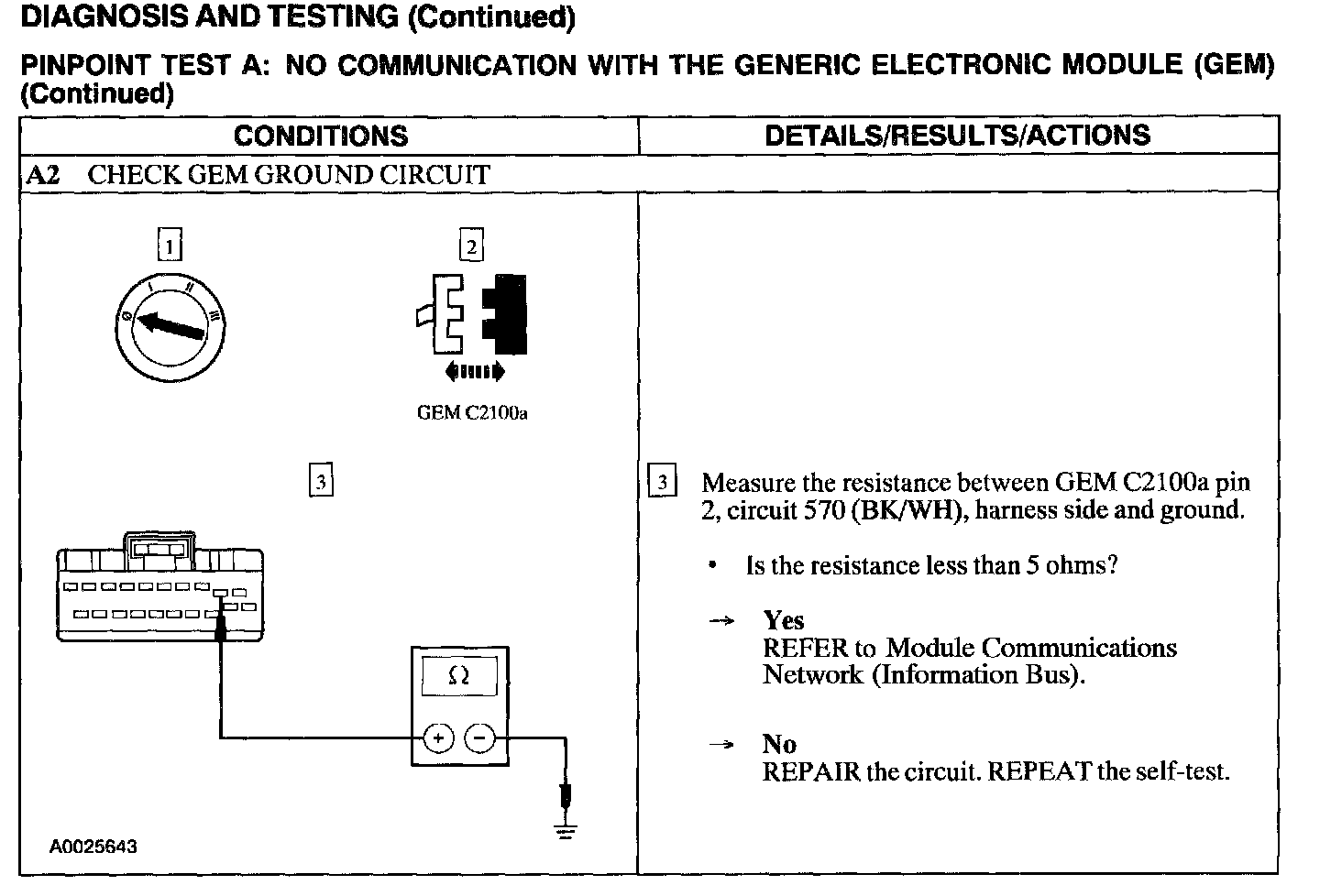

A2:
