Test G: No Module/Network Communication - ISO 9141 Network

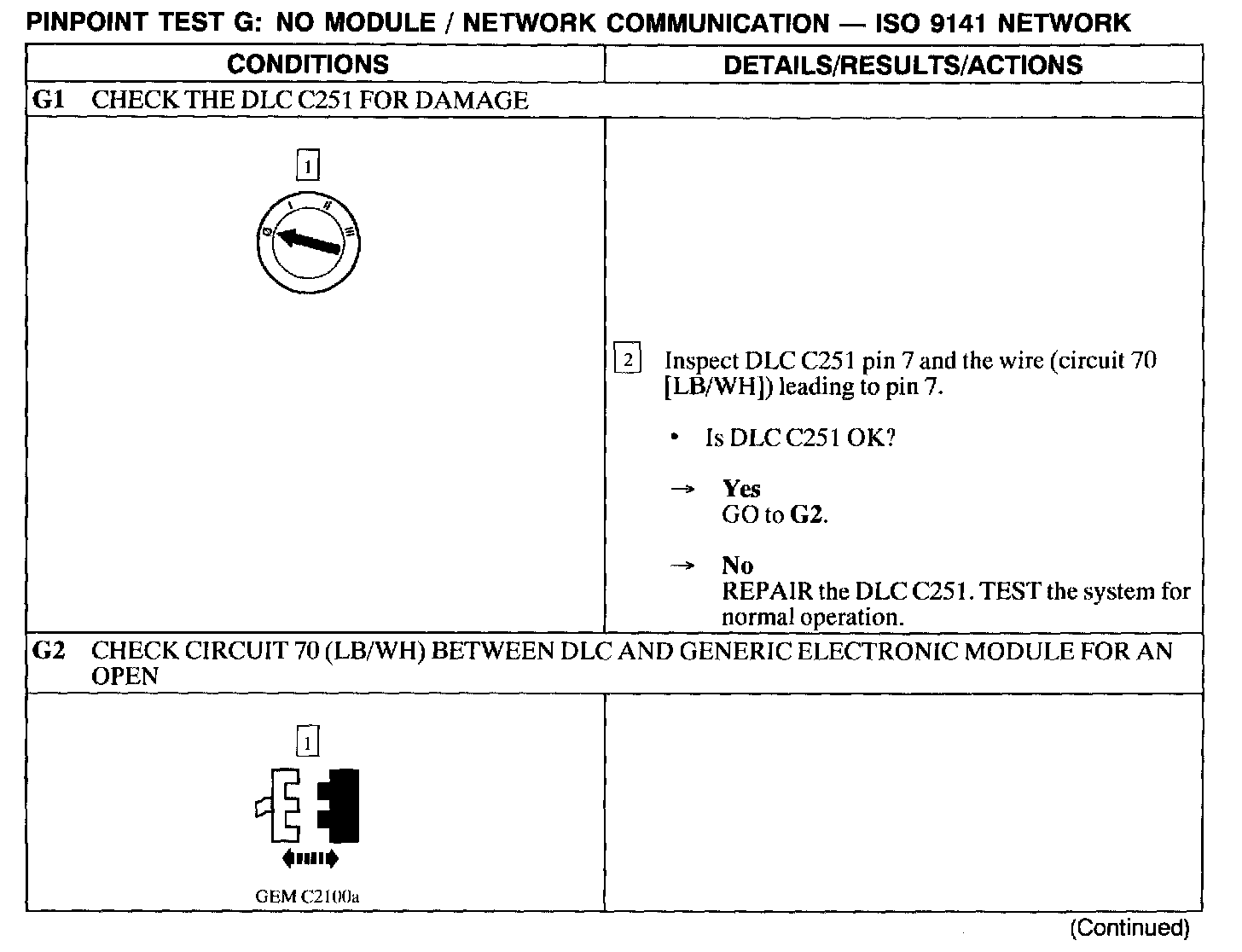

G1 - G2:

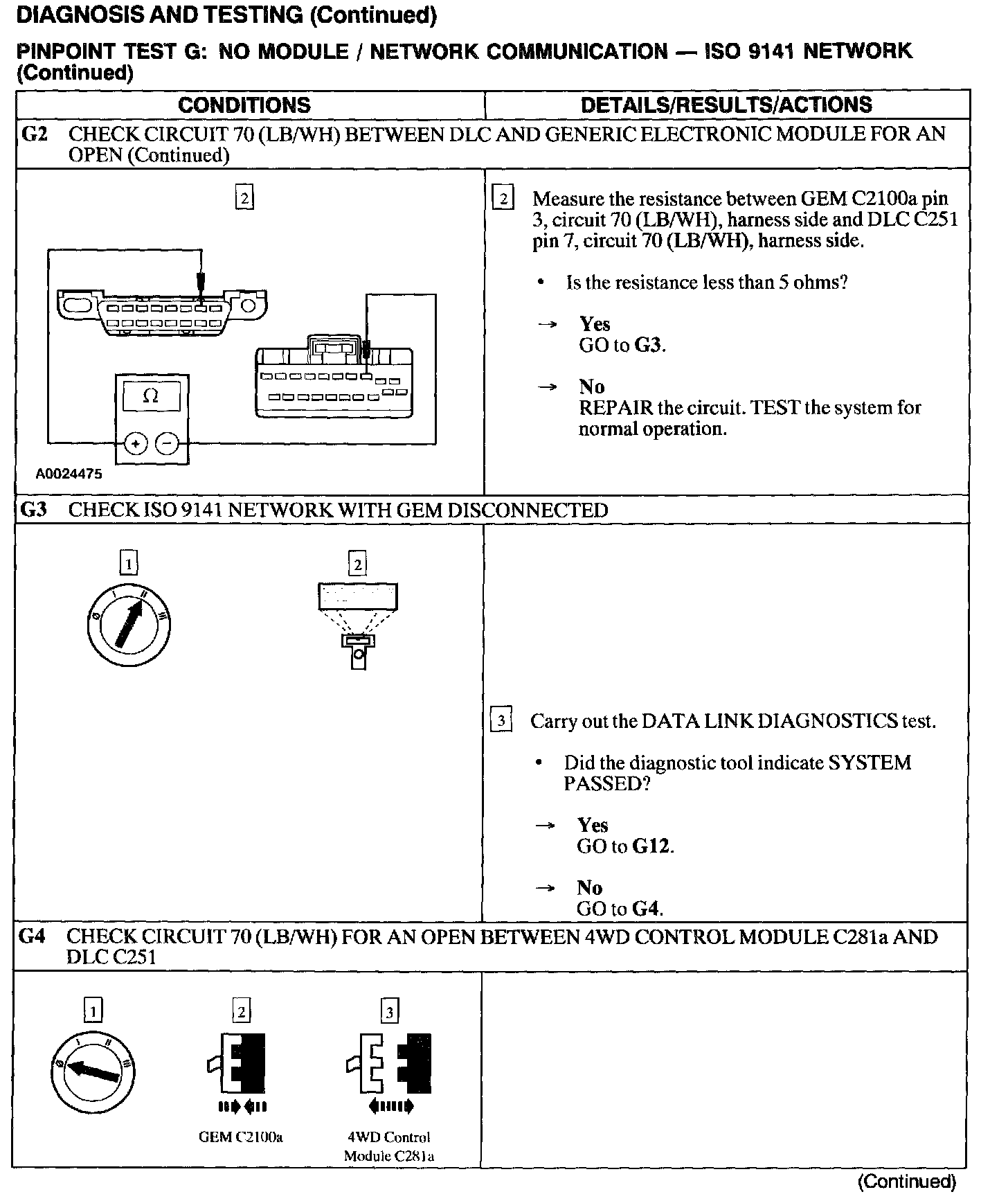

G2 - G4:

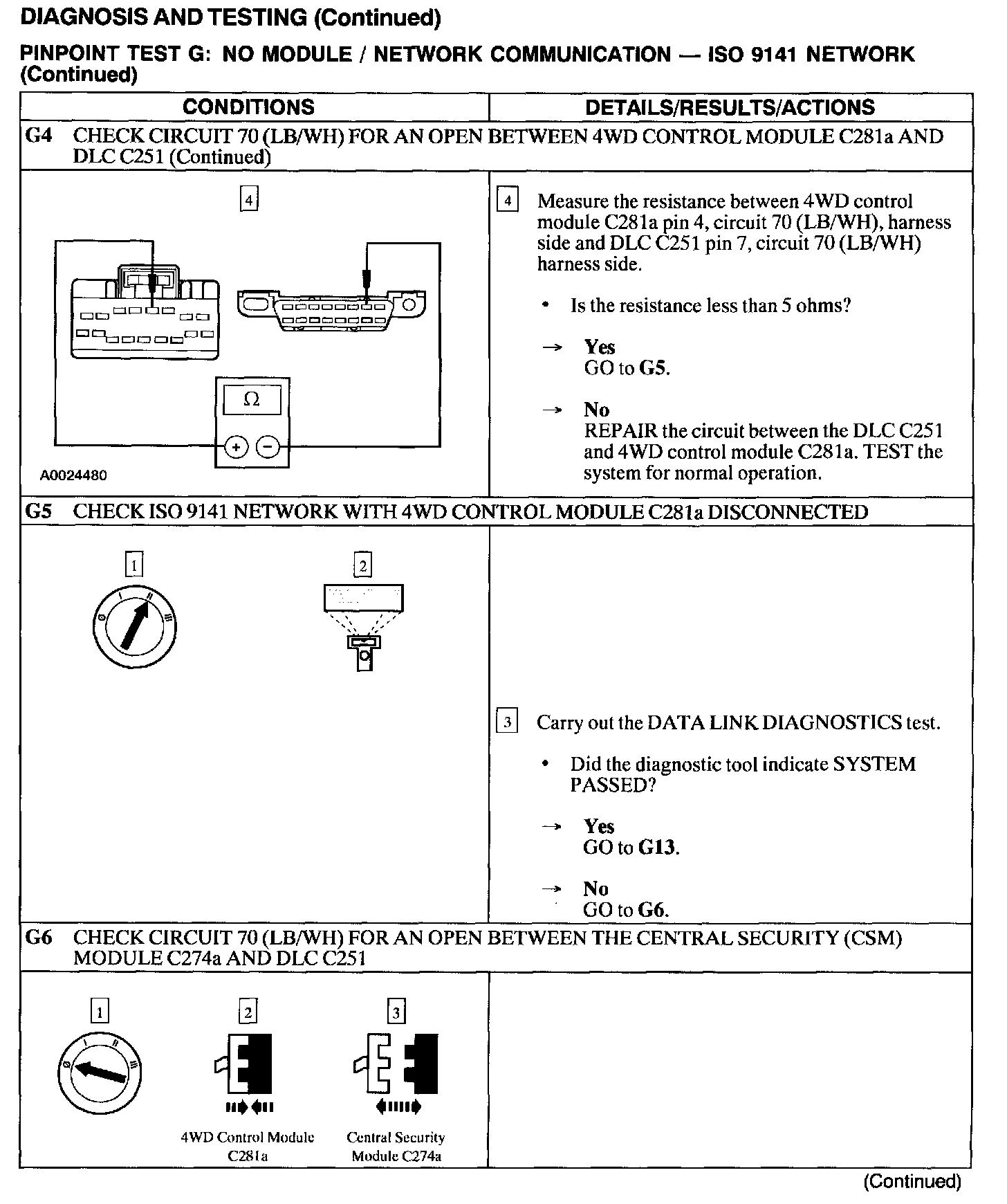

G4 - G6:

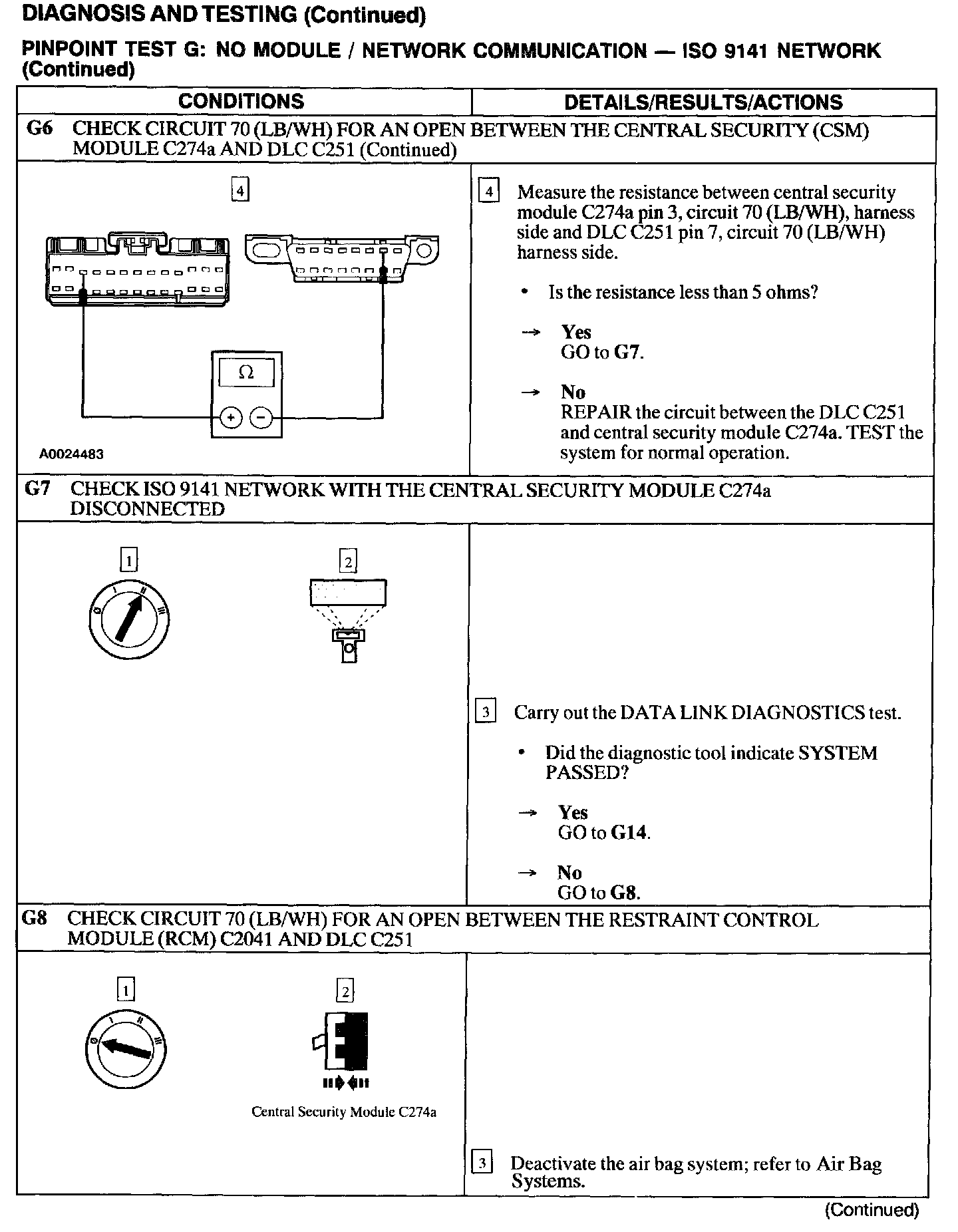

G6 - G8:

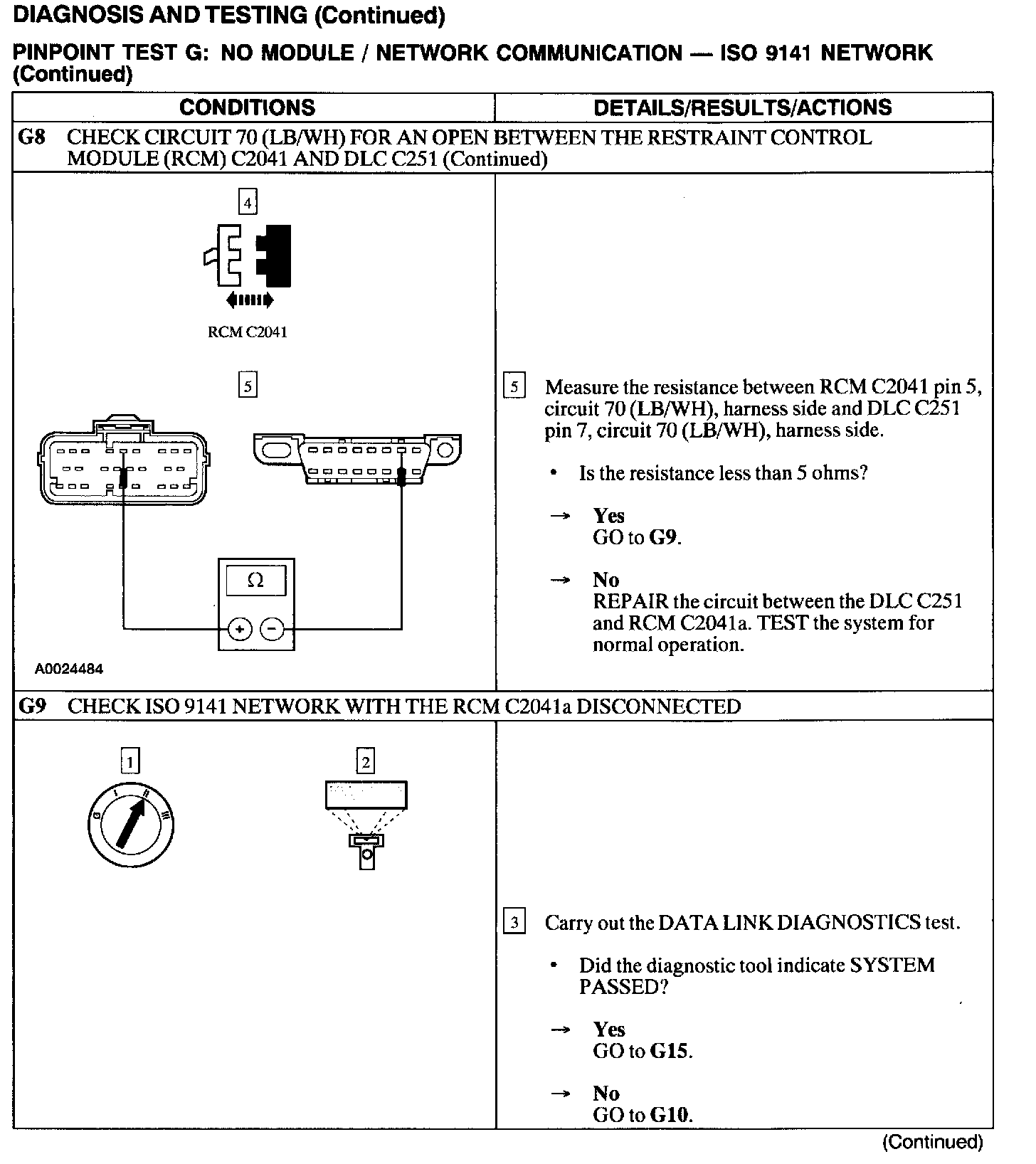

G8 - G9:

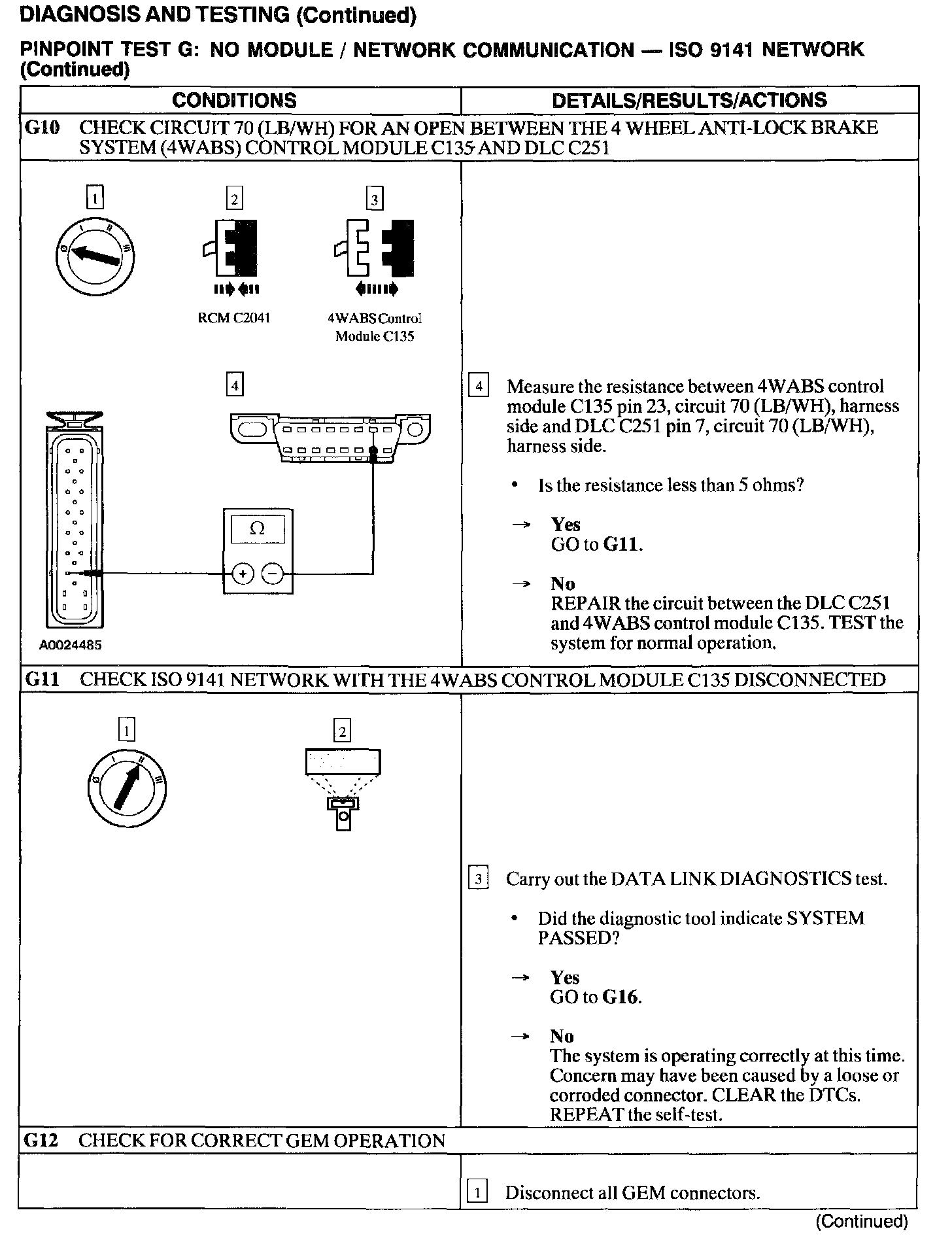

G10 - G12:

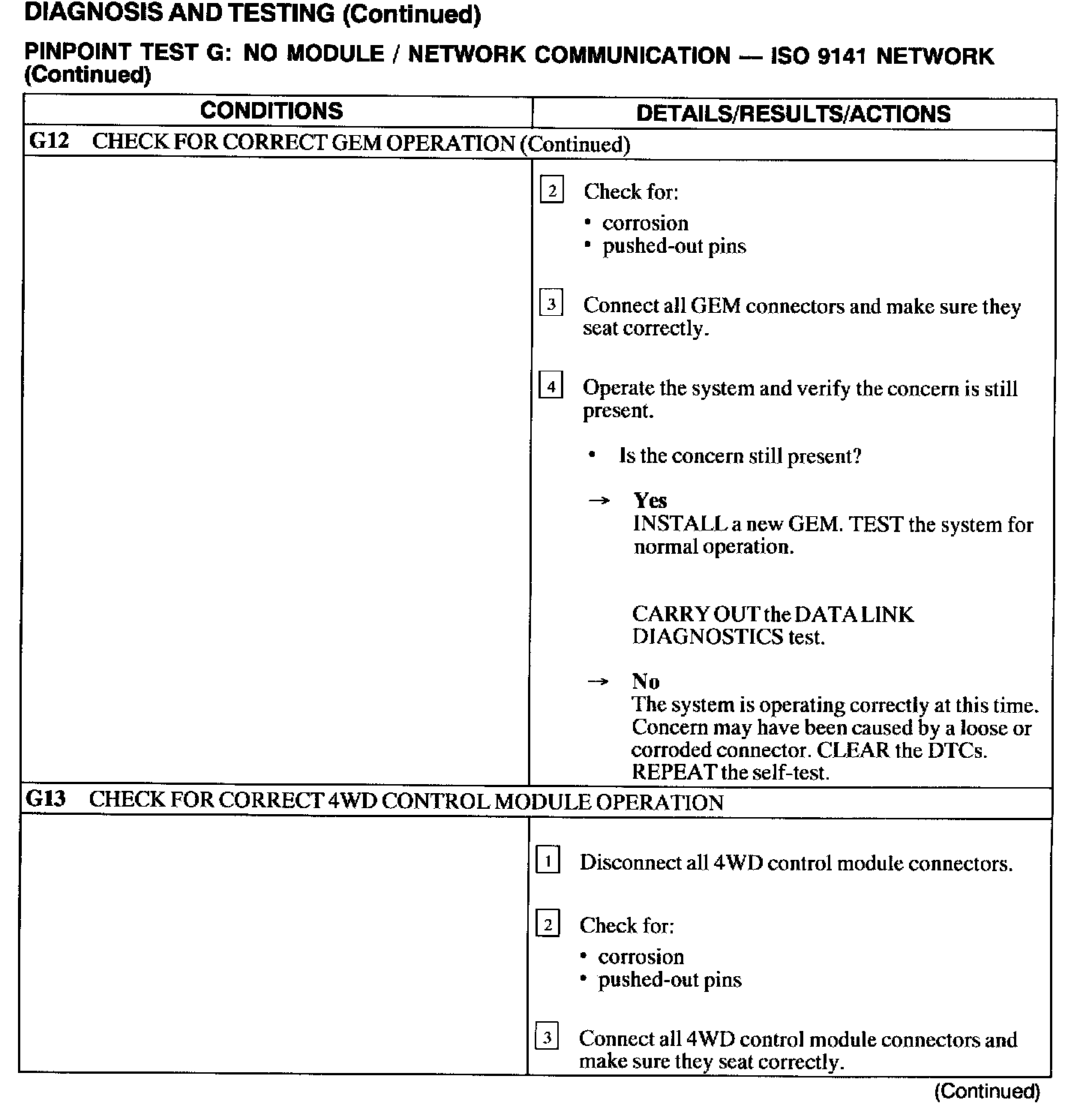

G12 - G13:

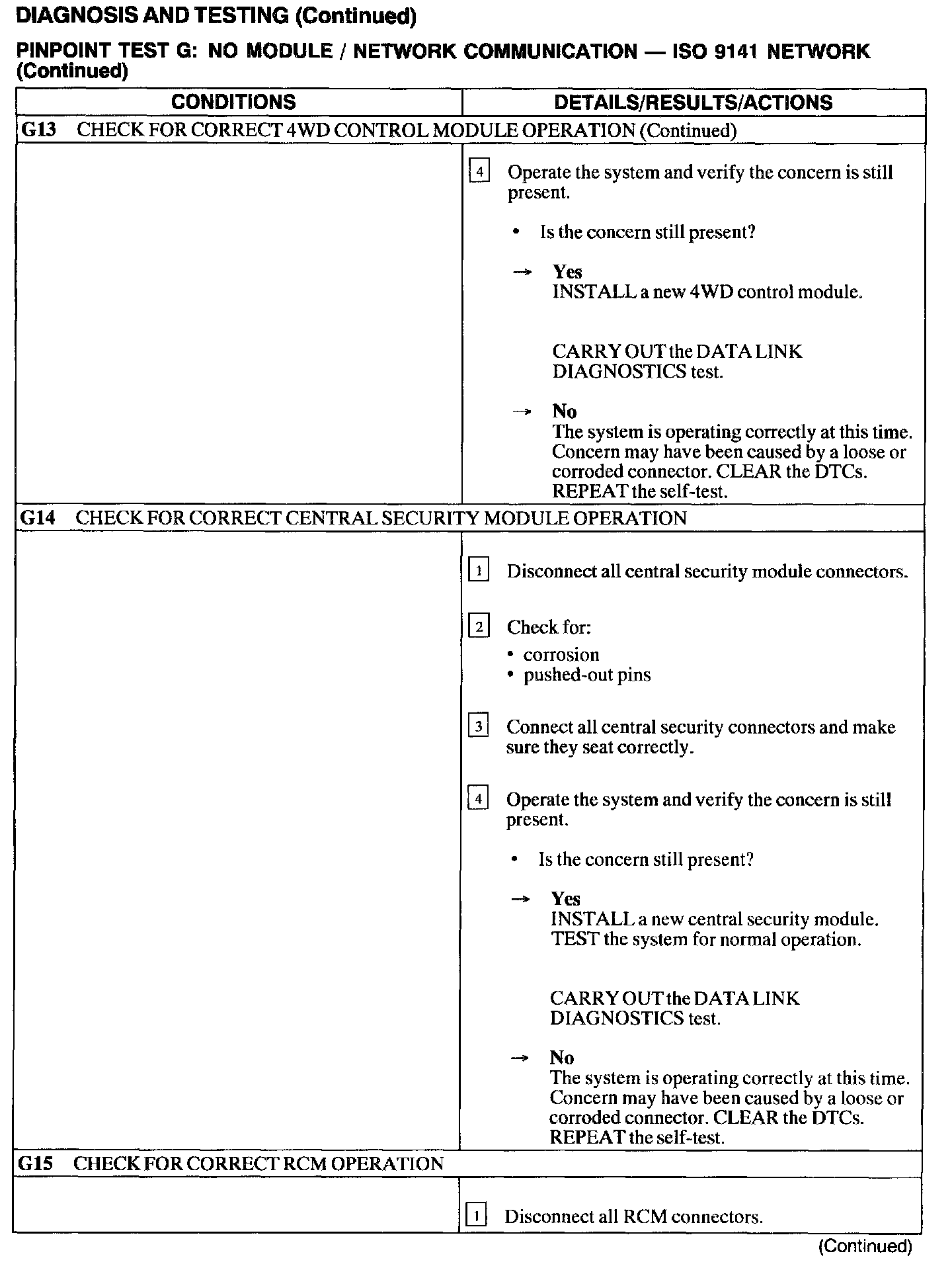

G13 - G15:

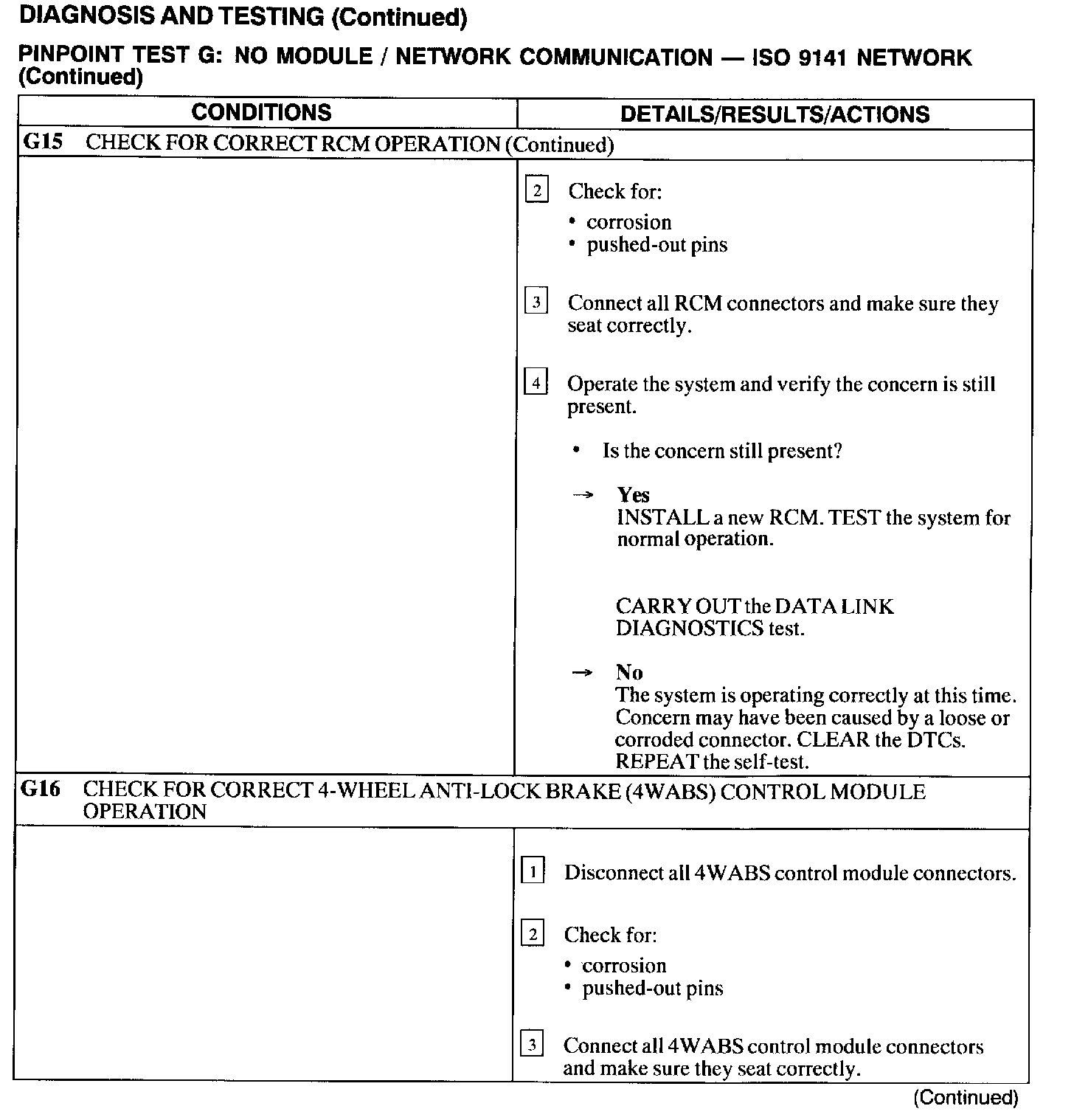

G15 - G16:

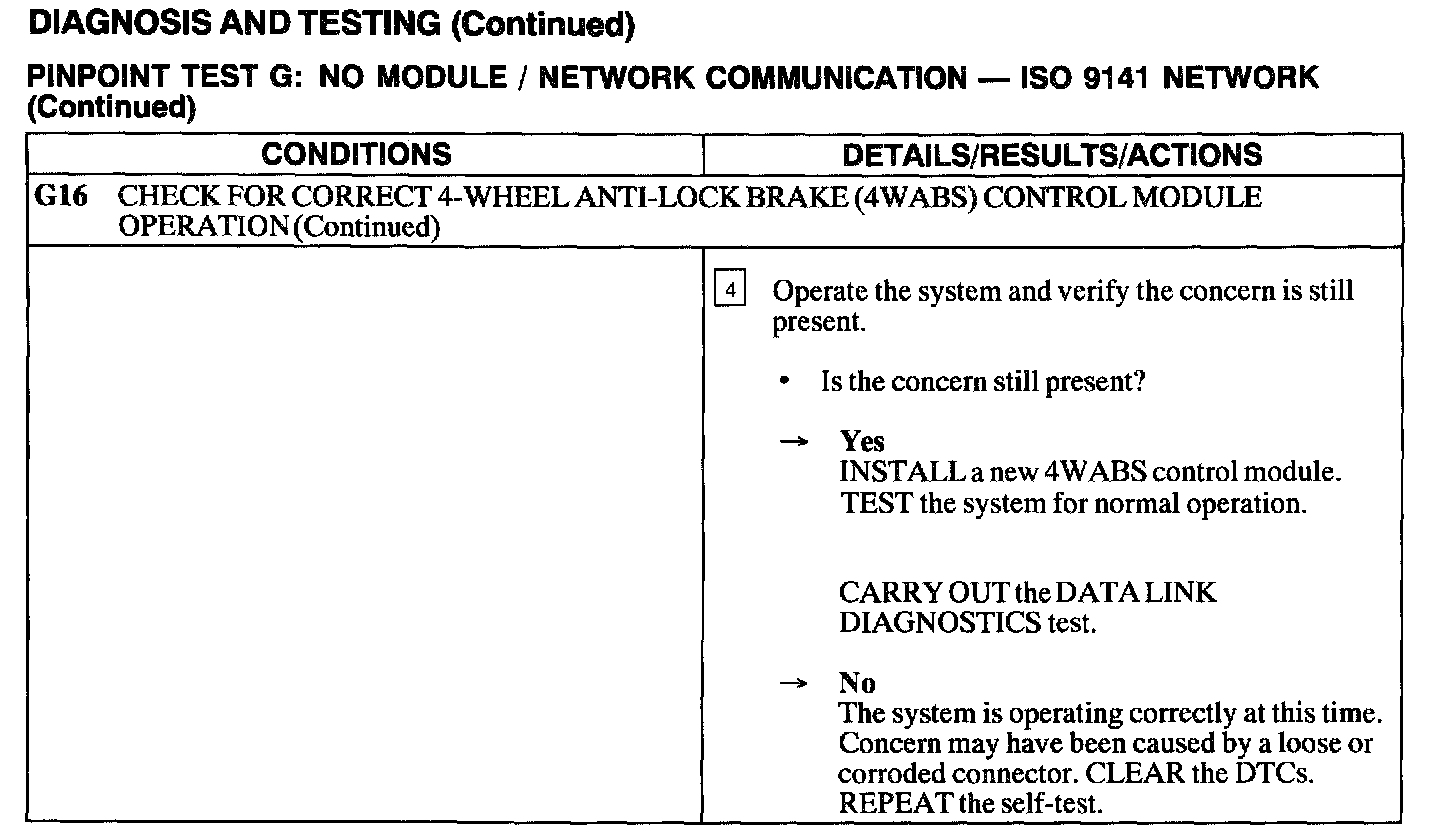

G16:
