Compression Check: Specifications

AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.

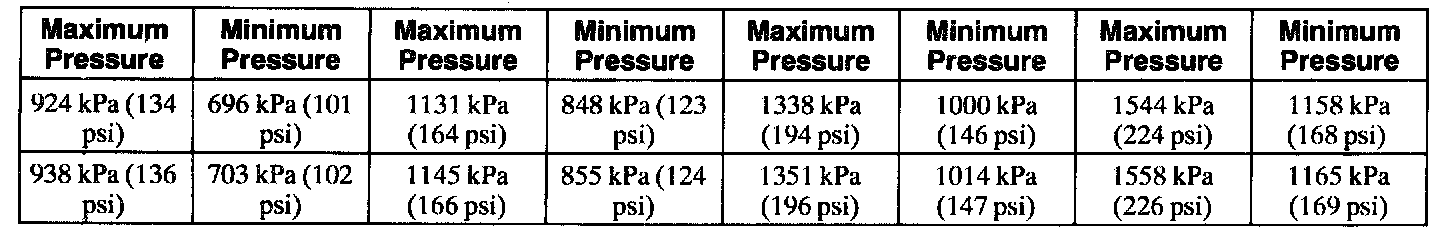

Compression Pressure Limit Chart (Part 1 Of 2):

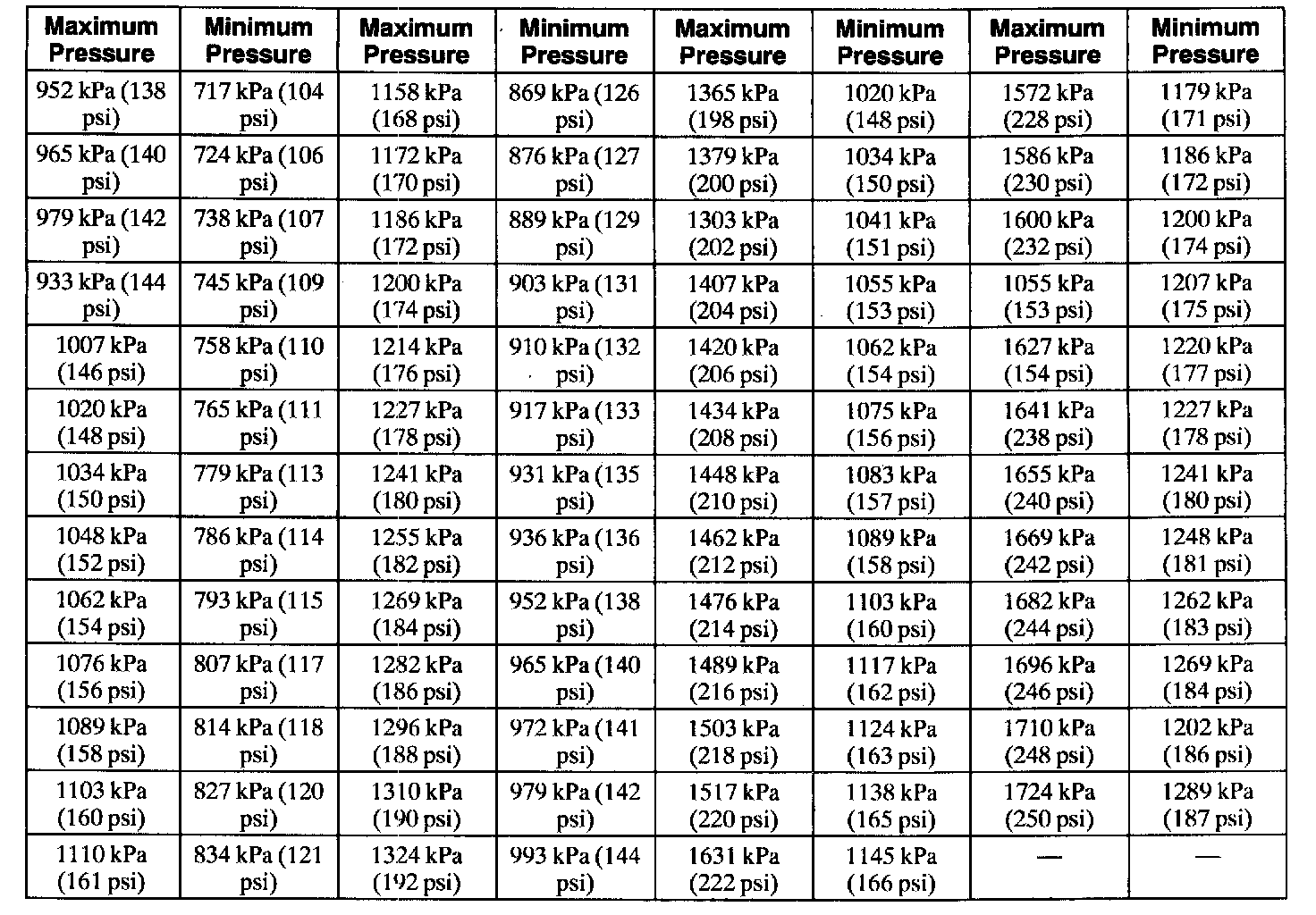

Compression Pressure Limit Chart (Part 2 Of 2):







The indicated compression pressures are considered within specification if the lowest reading cylinder is within 75 percent of the highest reading.
