Transfer Case-Automatic Shift

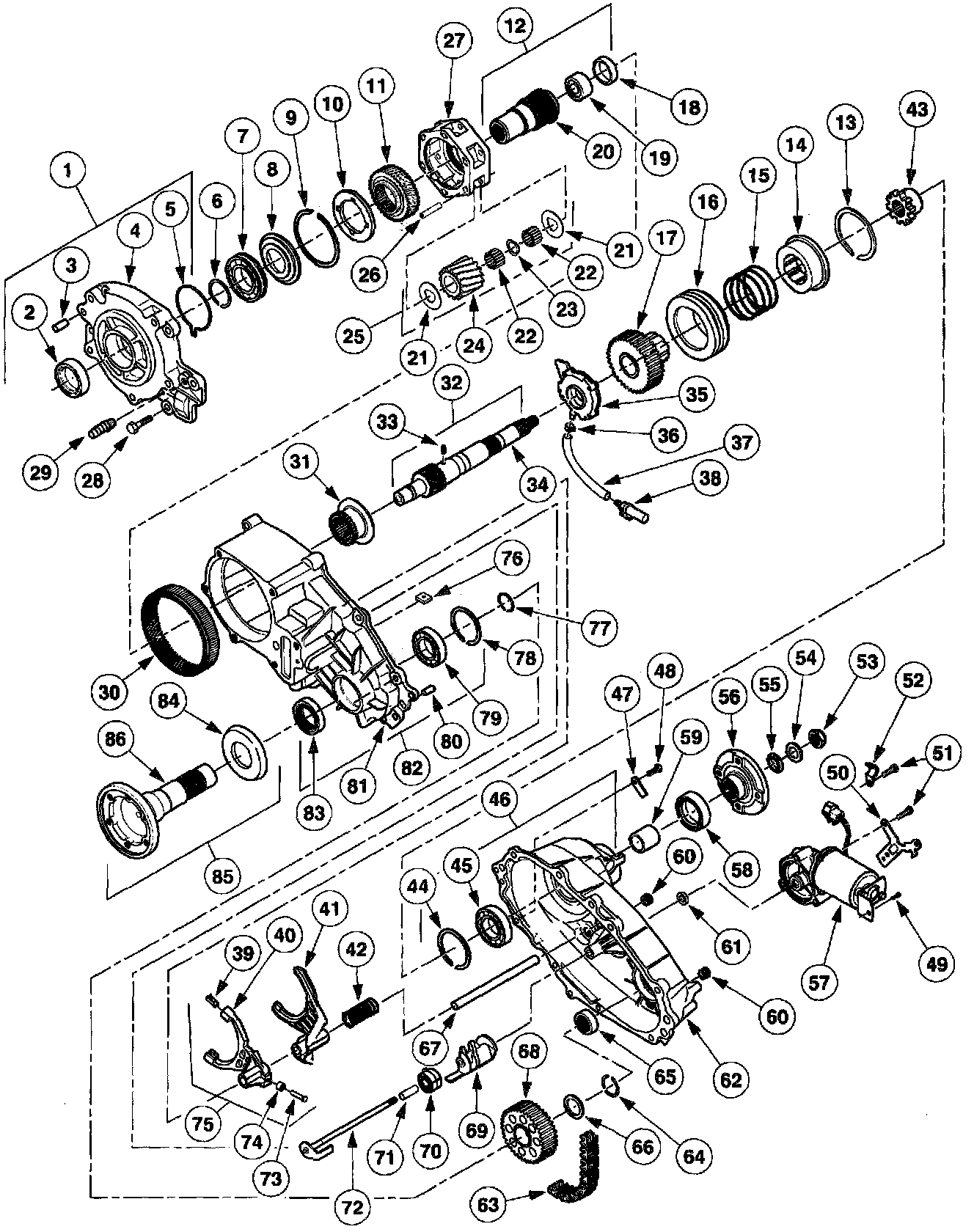

Transfer Case Disassembled View





Part 1 of 3

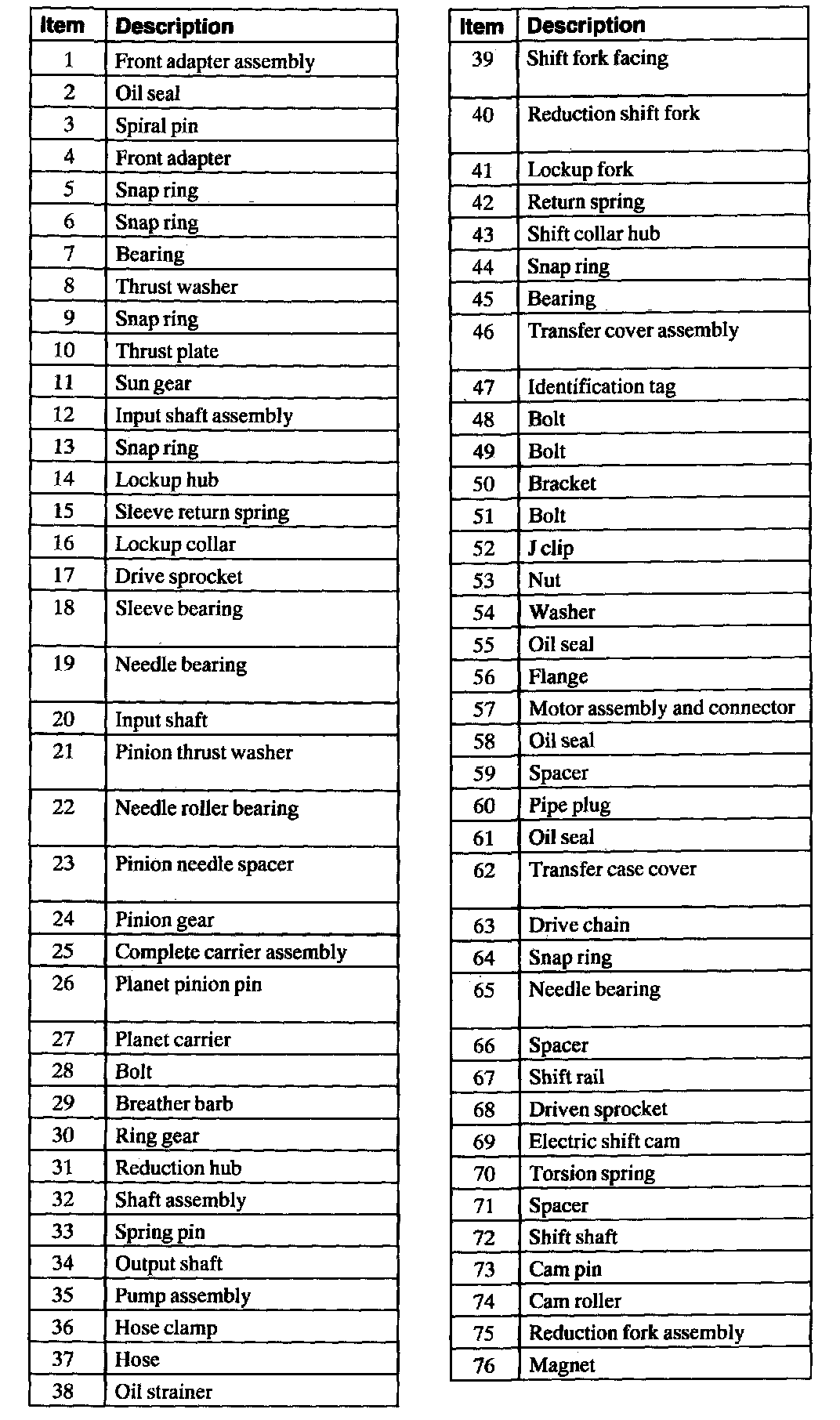

Part 2 of 3

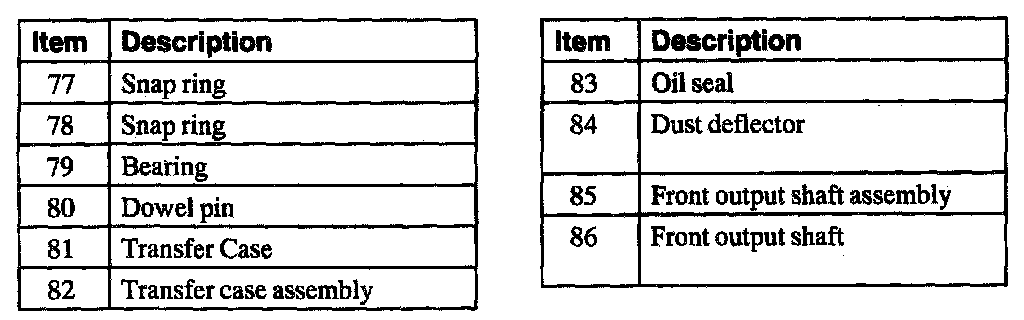

Part 3 of 3
