Pinpoint Test F: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

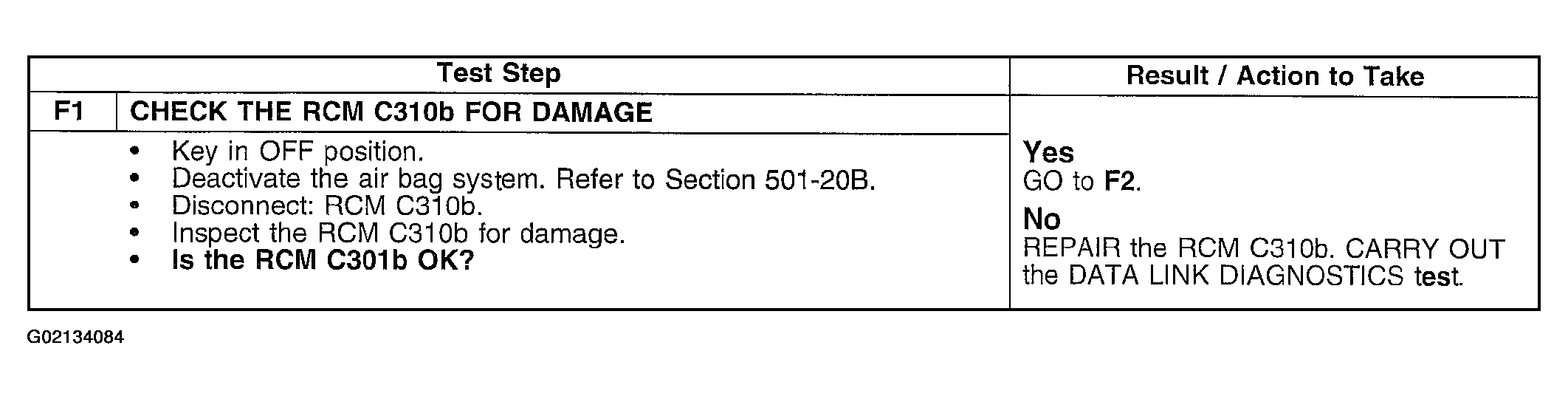

Fig 1: Pinpoint Test F (1 Of 2)
G02134084Courtesy of FORD MOTOR CO.

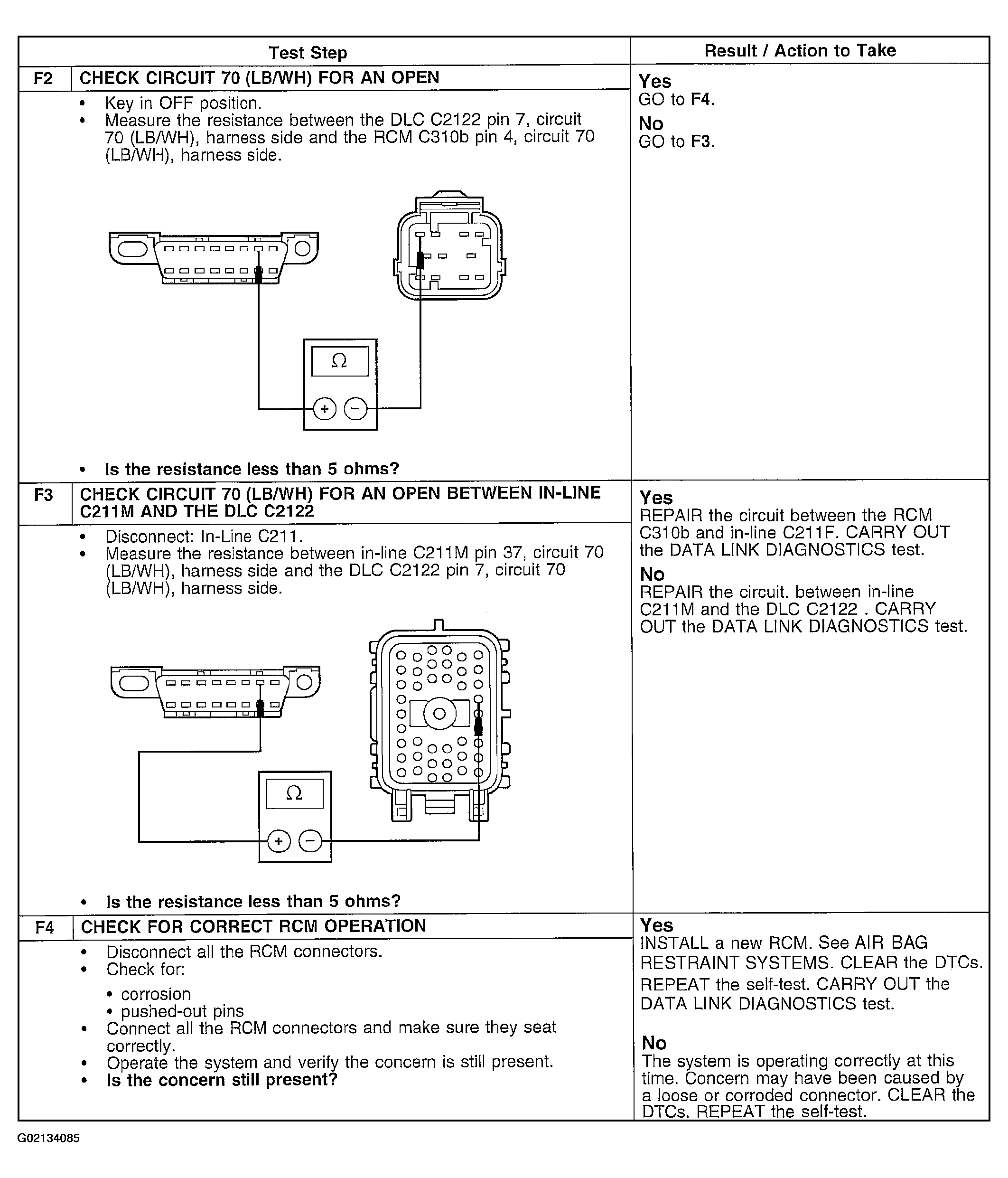

Fig 2: Pinpoint Test F (2 Of 2)
G02134085Courtesy of FORD MOTOR CO.
