Pinpoint Test S: No UART Based Protocol (UBP) Network Communication

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

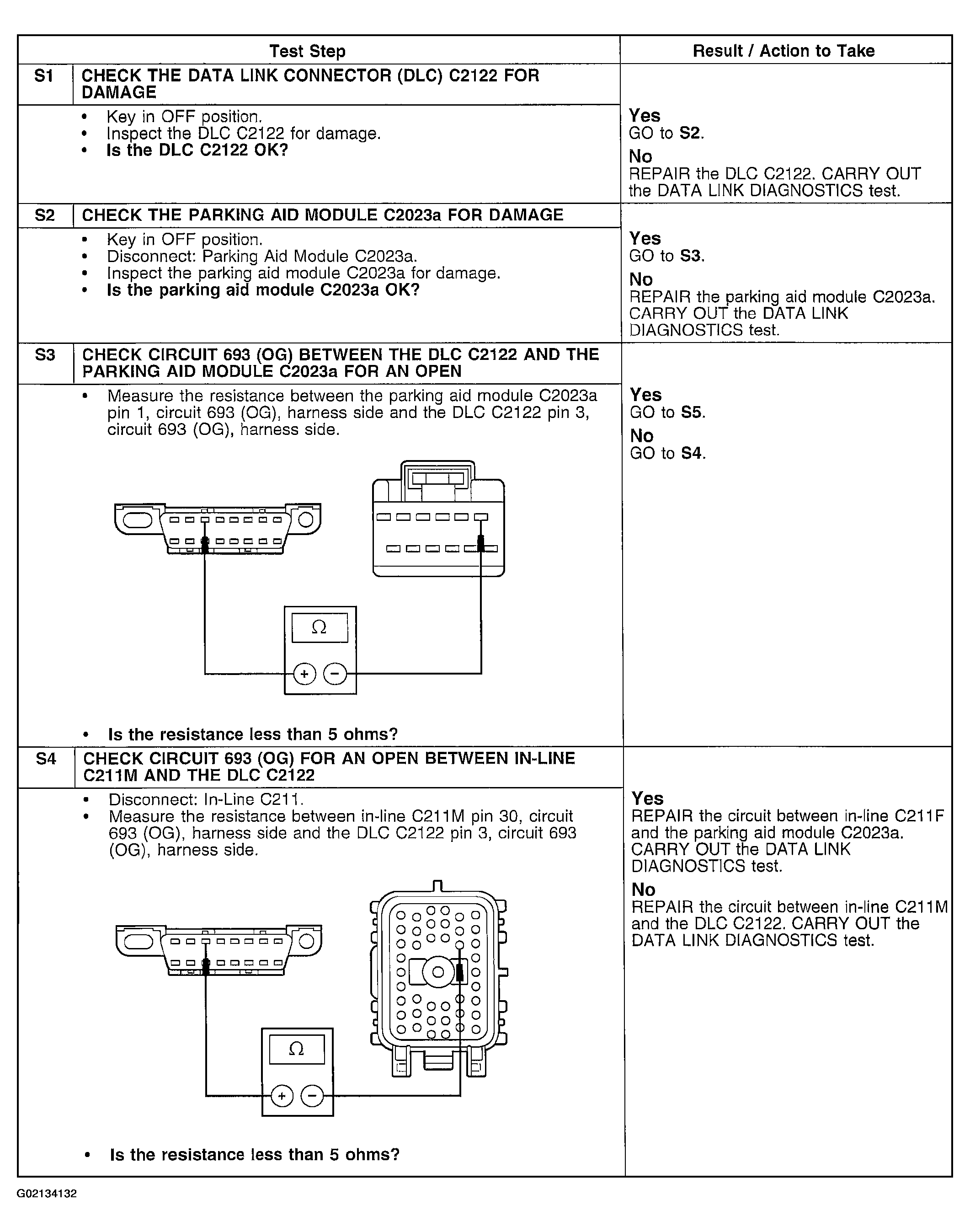

Fig 1: Pinpoint Test S (1 Of 2)

Courtesy of FORD MOTOR CO.

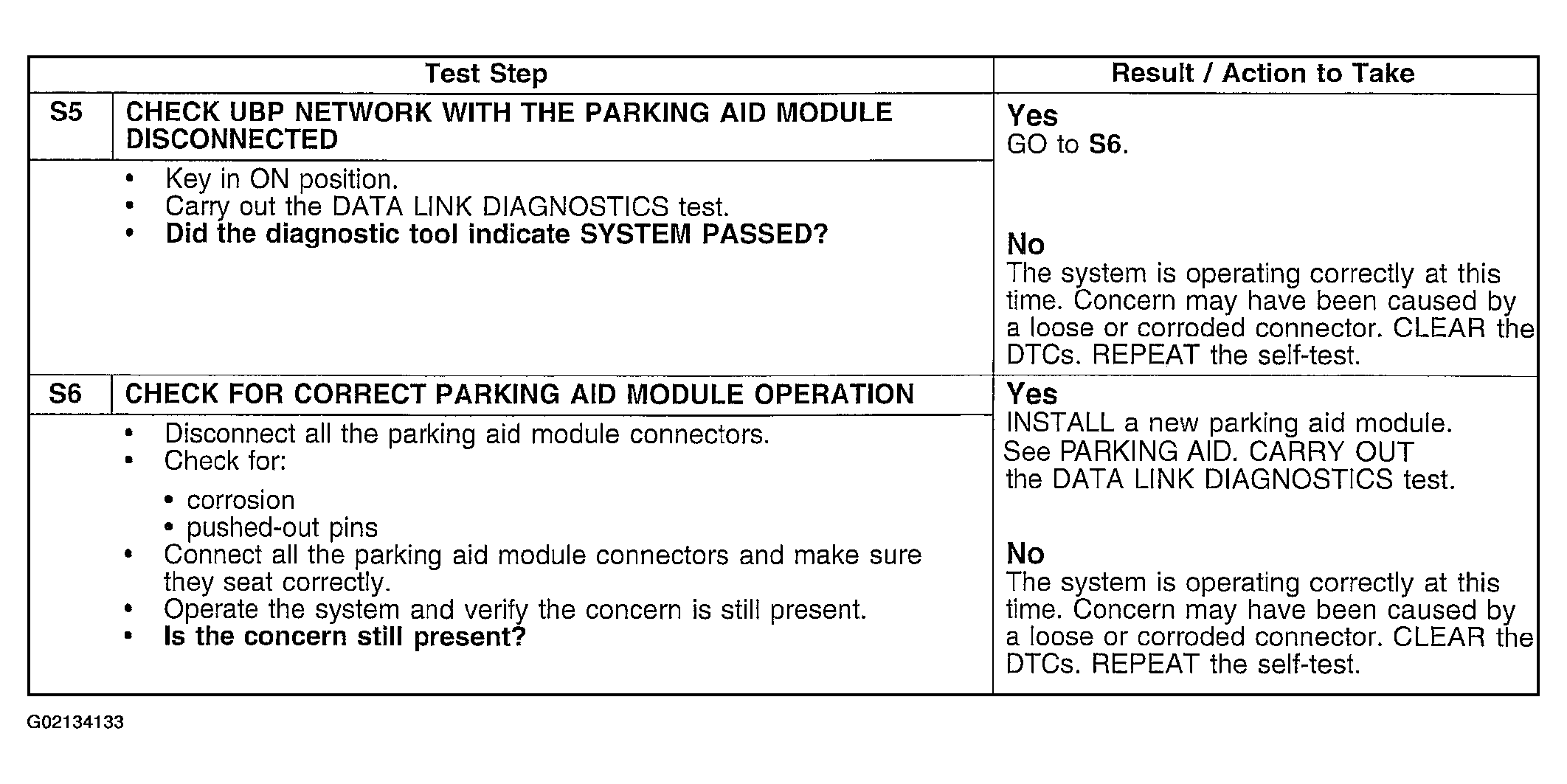

Fig 2: Pinpoint Test S (2 Of 2)

Courtesy of FORD MOTOR CO.
