Pinpoint Test T: No Module/Network Communication - No Power To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

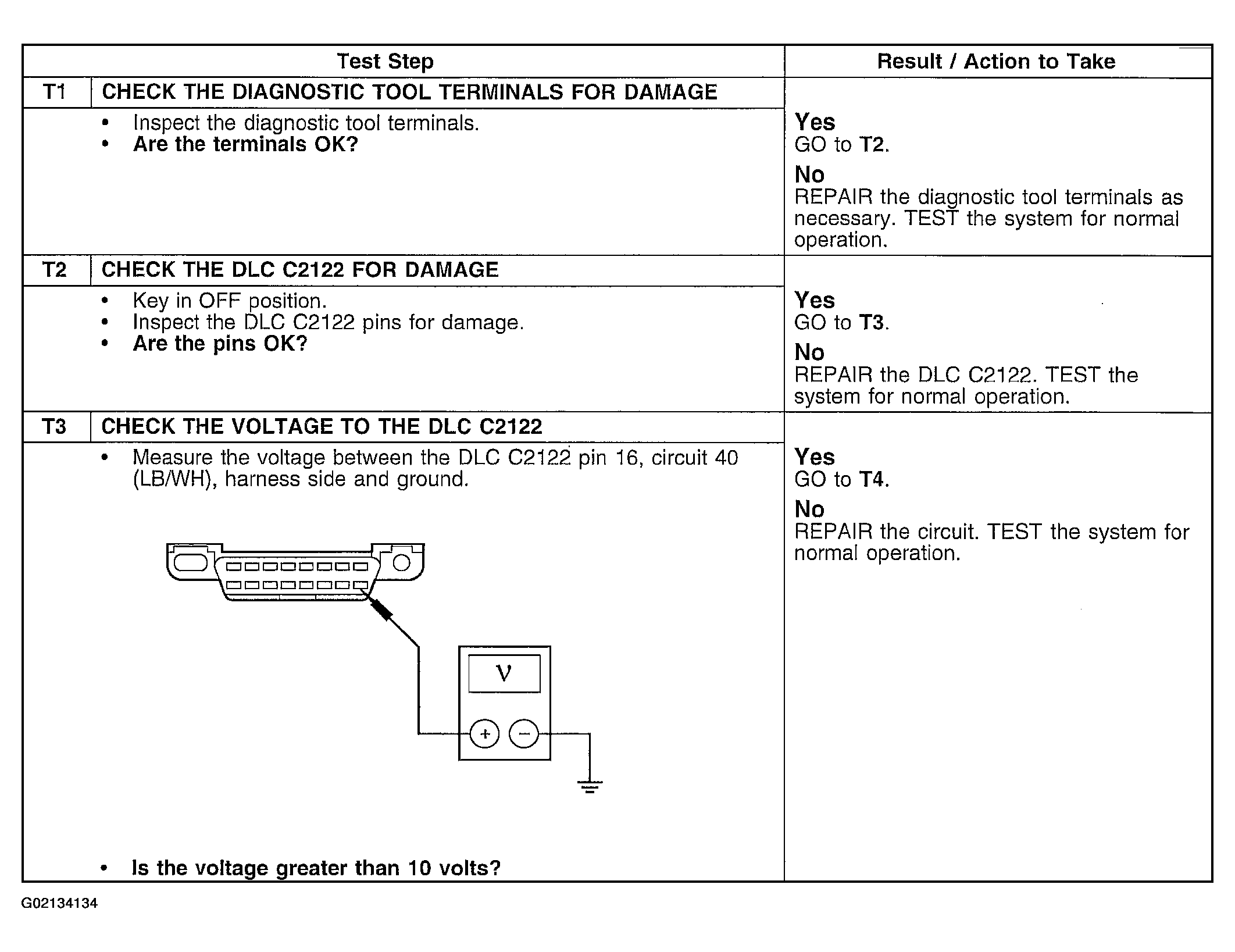

Fig 1: Pinpoint Test T (1 Of 2)
G02134134Courtesy of FORD MOTOR CO.

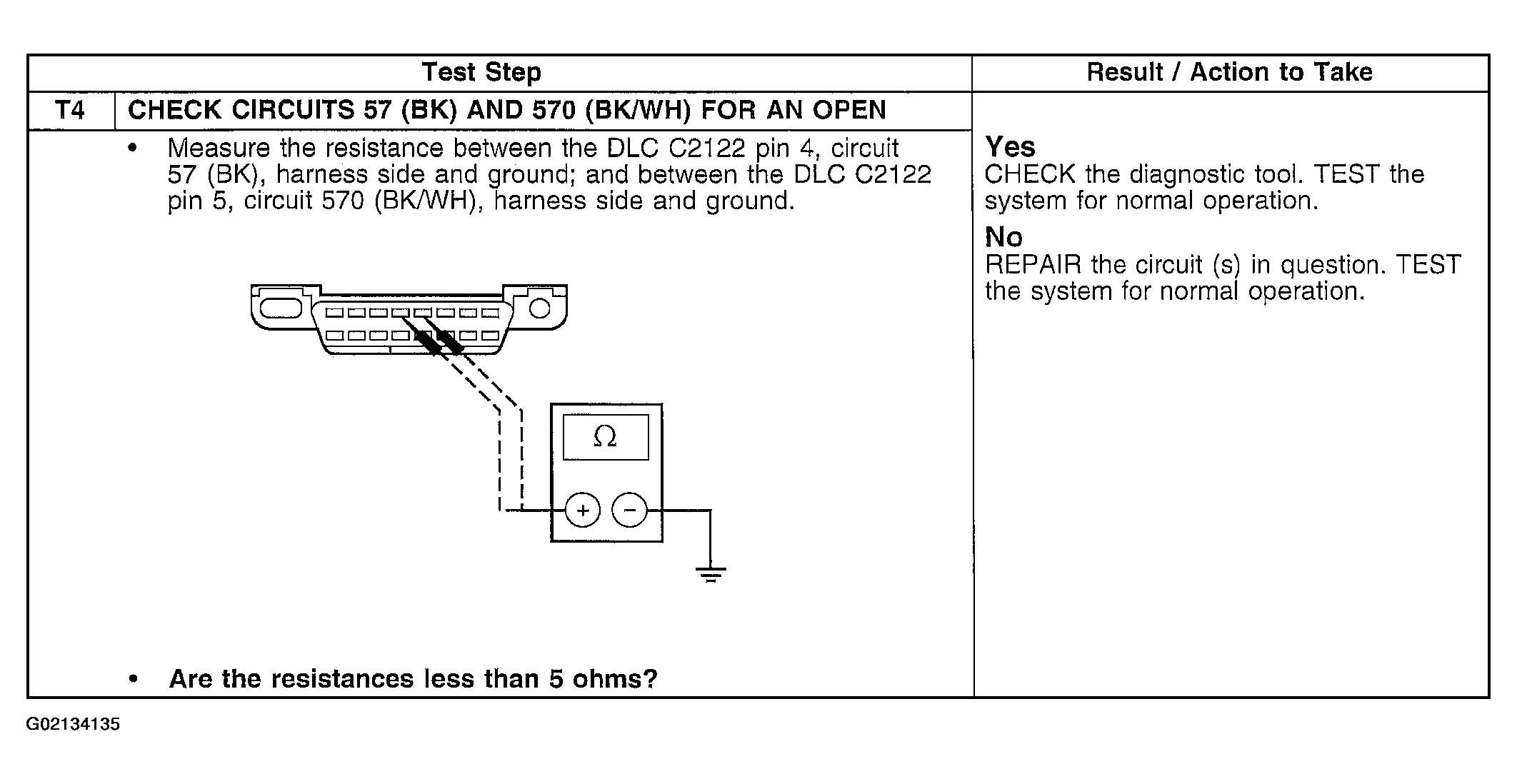

Fig 2: Pinpoint Test T (2 Of 2)
G02134135Courtesy of FORD MOTOR CO.
