Pinpoint Test A: The 4-Wheel Anti-Lock Brake (4WABS) Control Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

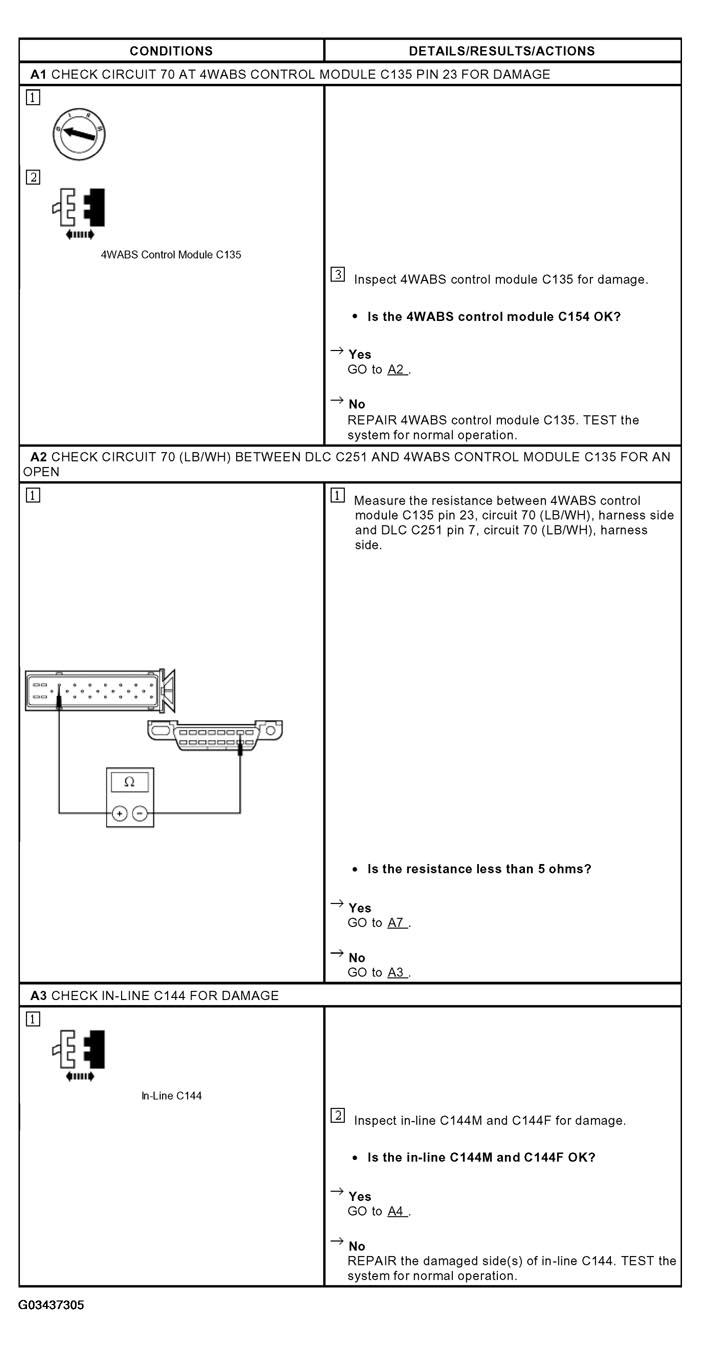

Fig 1: Pinpoint Test A: 4 Wheel Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A1-A3)

Courtesy of FORD MOTOR CO.

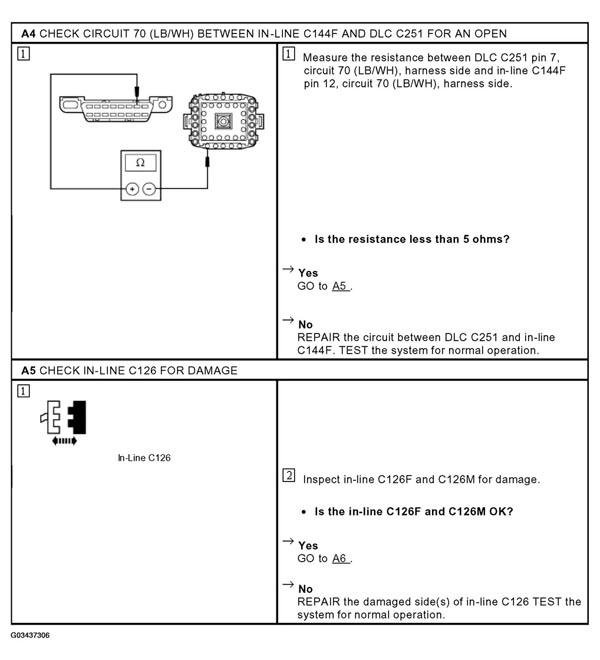

Fig 2: Pinpoint Test A: The 4-Wheel Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A4-A5)

Courtesy of FORD MOTOR CO.

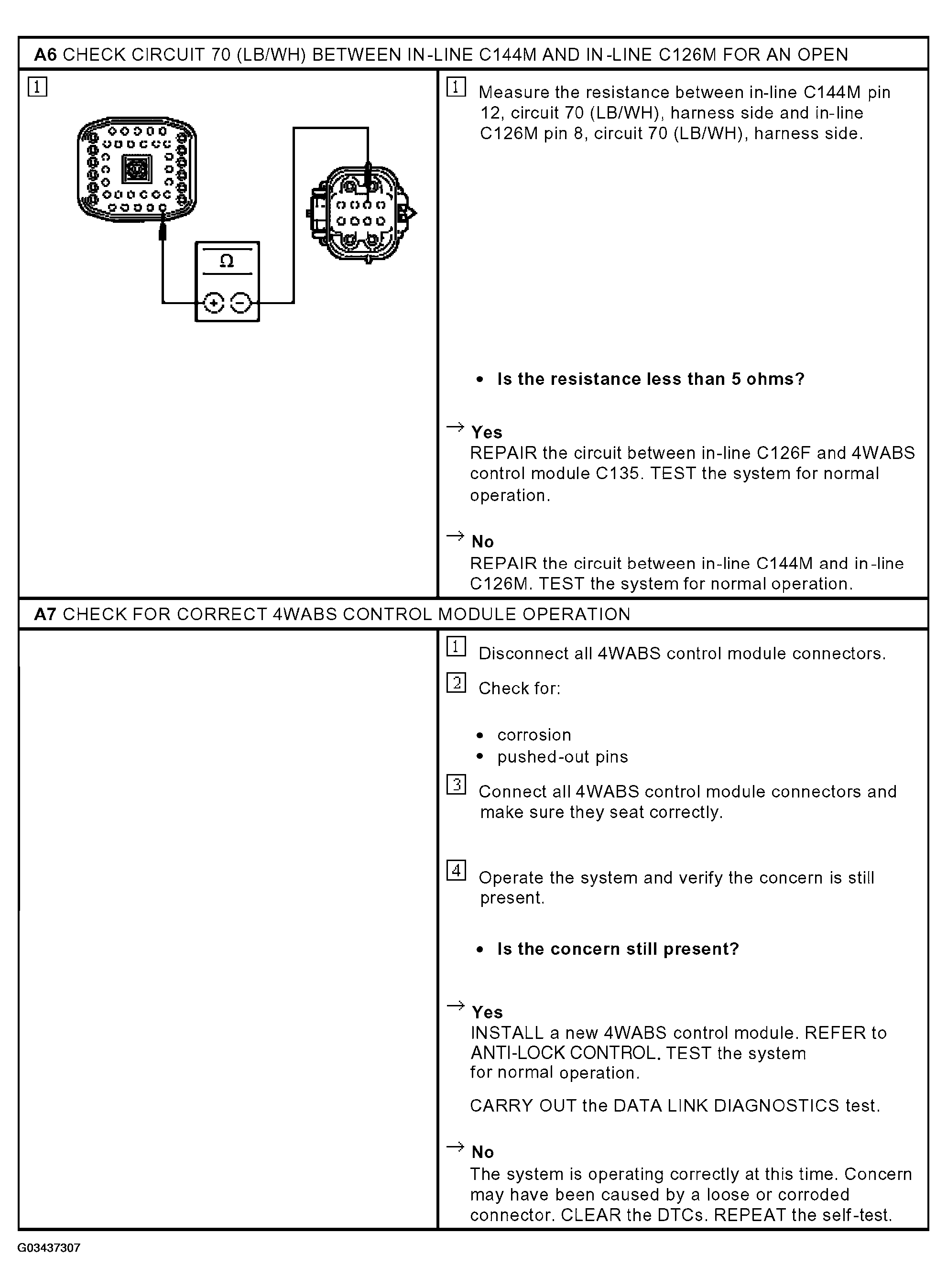

Fig 3: Pinpoint Test A: The 4-Wheel Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (A6-A7)

Courtesy of FORD MOTOR CO.
