Pinpoint Test A: No Communication With The Air Suspension Module

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

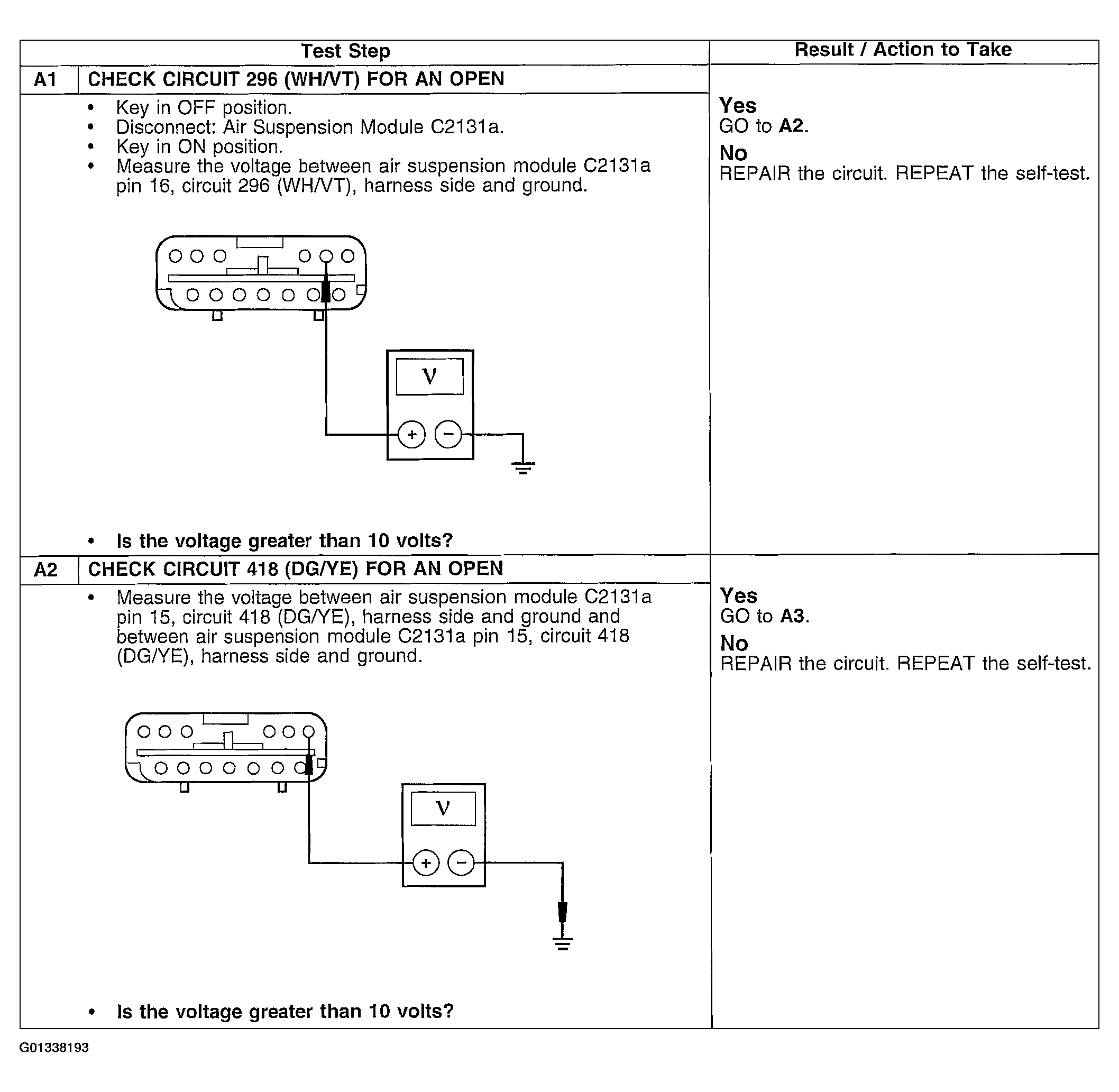

Fig 1: Pinpoint Test A (Steps A1-A2)
G01338193Courtesy of FORD MOTOR CO.

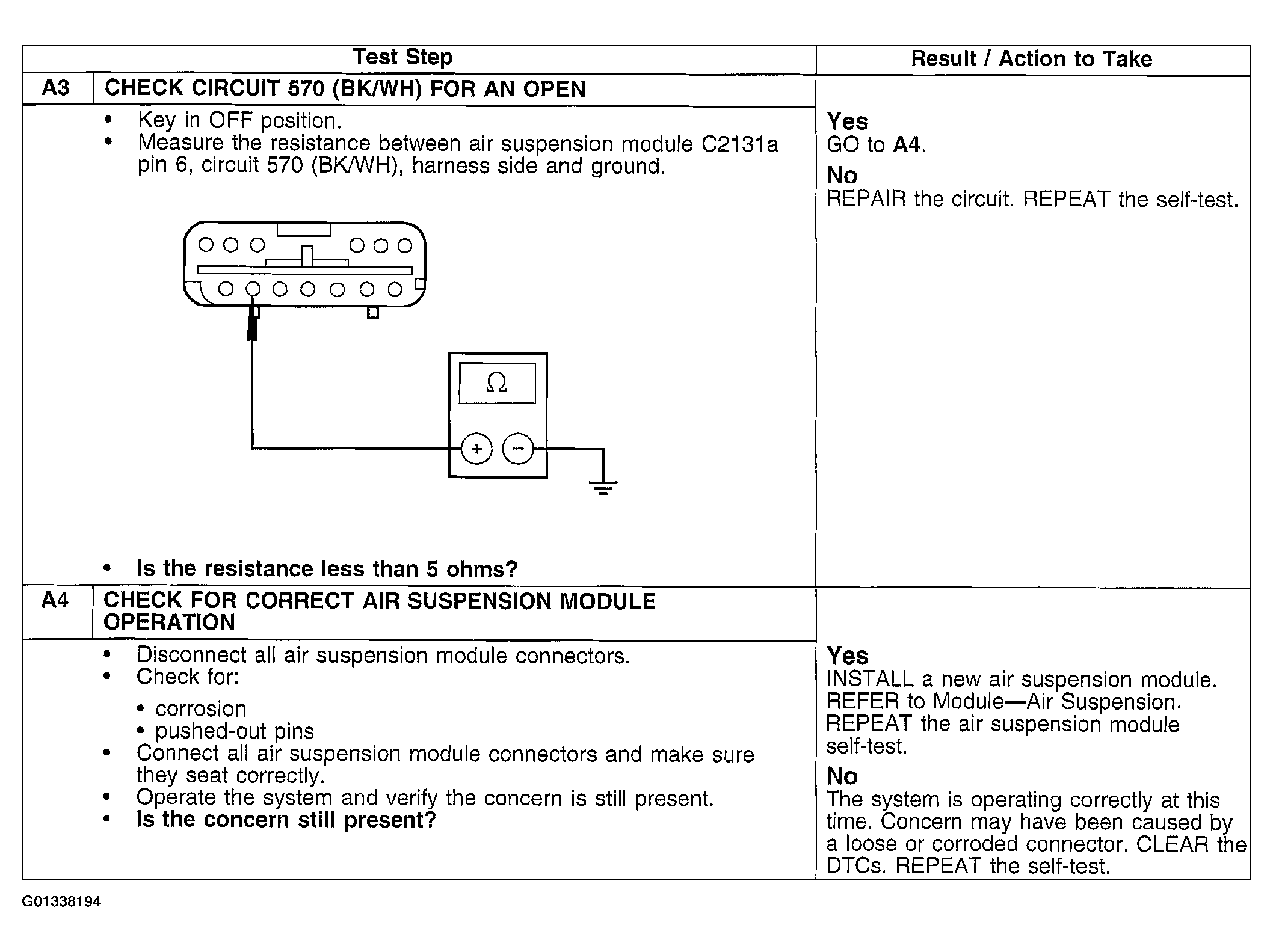

Fig 2: Pinpoint Test A (Steps A3-A4)
G01338194Courtesy of FORD MOTOR CO.
