Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Prior to removal of module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, see MODULE CONFIGURATION .
  1. Disconnect the battery ground cable. For additional information, see BATTERY, MOUNTING & CABLES .
  2. Remove the driver door trim panel. For additional information, see FRONT DOOR TRIM PANEL .
  3. Disconnect the electrical connectors from the driver door module (DDM).

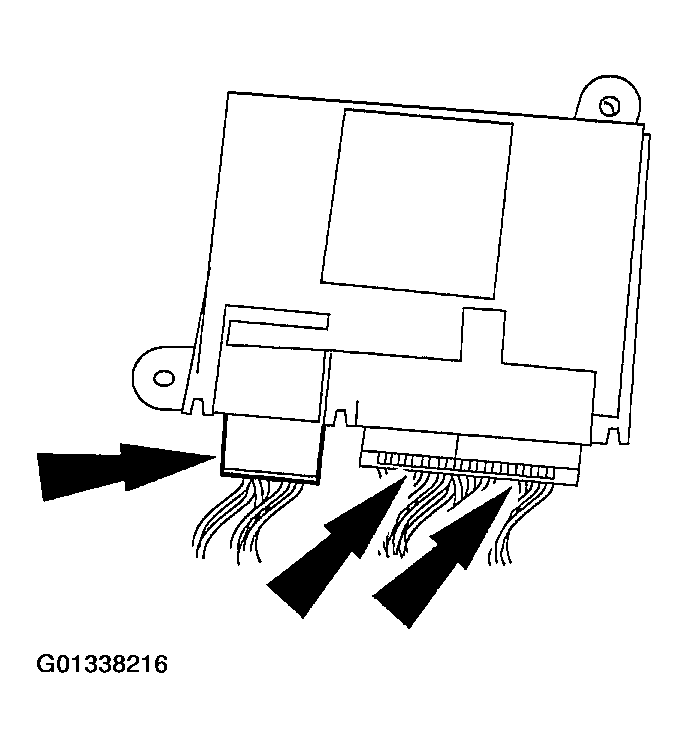

    Fig 1: Disconnecting Electrical Connectors
    G01338216Courtesy of FORD MOTOR CO.
  4. Remove the DDM.

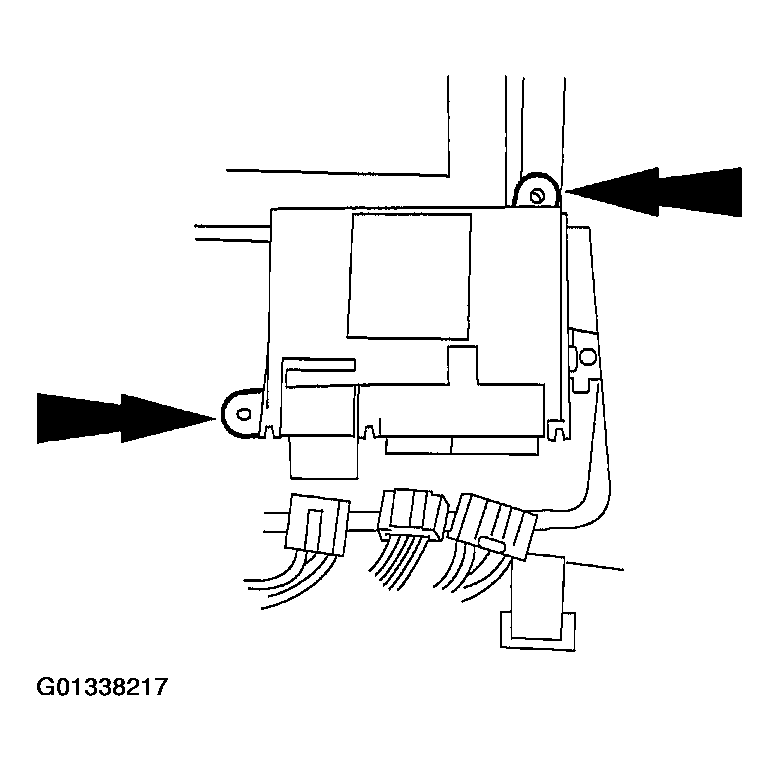

    Fig 2: Removing DDM
    G01338217Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
