Ignition Switch

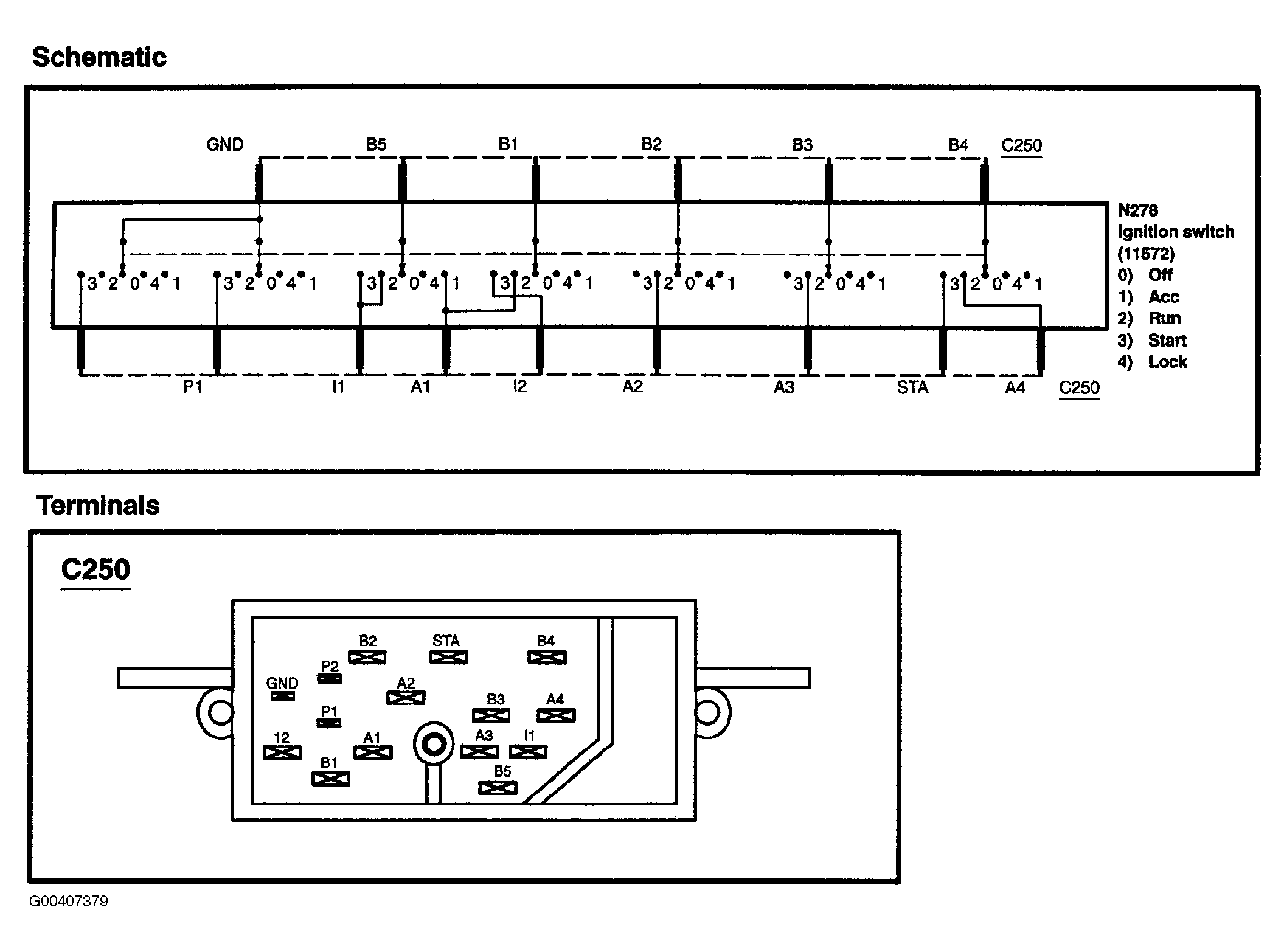

Fig 1: Testing Ignition Switch (1 Of 2)

Courtesy of FORD MOTOR CO.

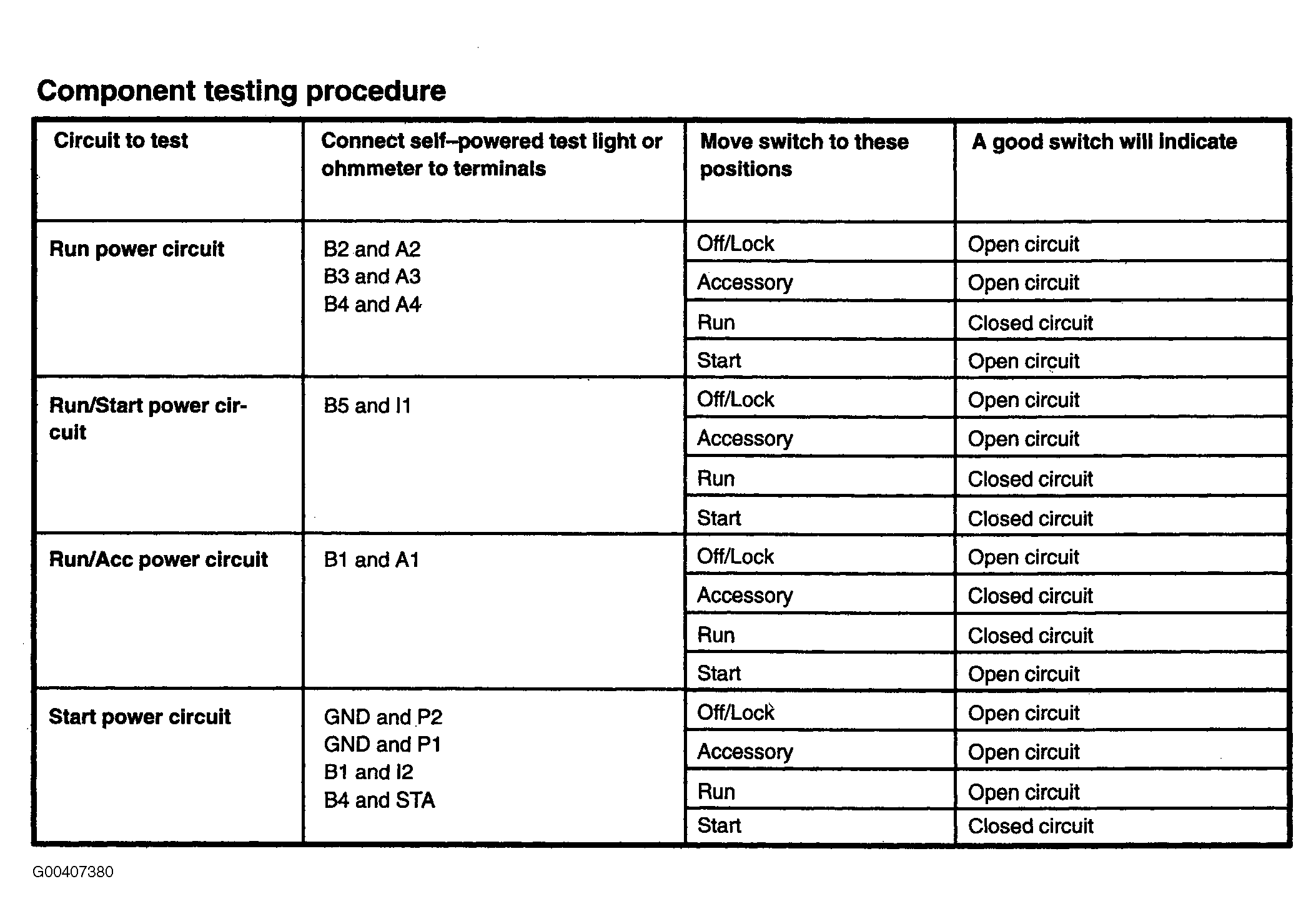

Fig 2: Testing Ignition Switch (2 Of 2)

Courtesy of FORD MOTOR CO.
