Wiper/Washer Portion

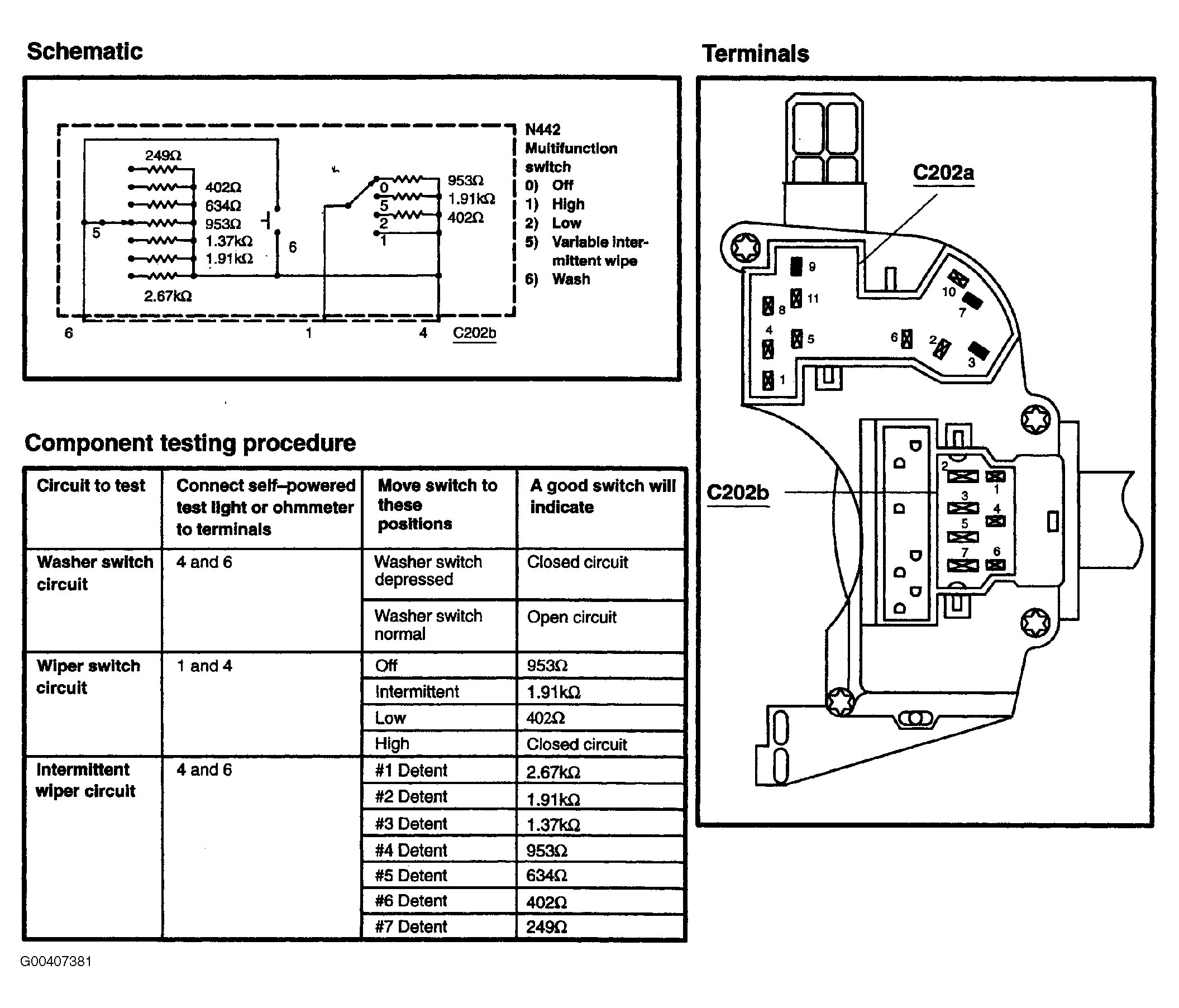

Fig 1: Testing Multifunction Switch (Wiper/Washer Portion)
G00407381Courtesy of FORD MOTOR CO.
