Radio Frequency Interference Suppression Equipment

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

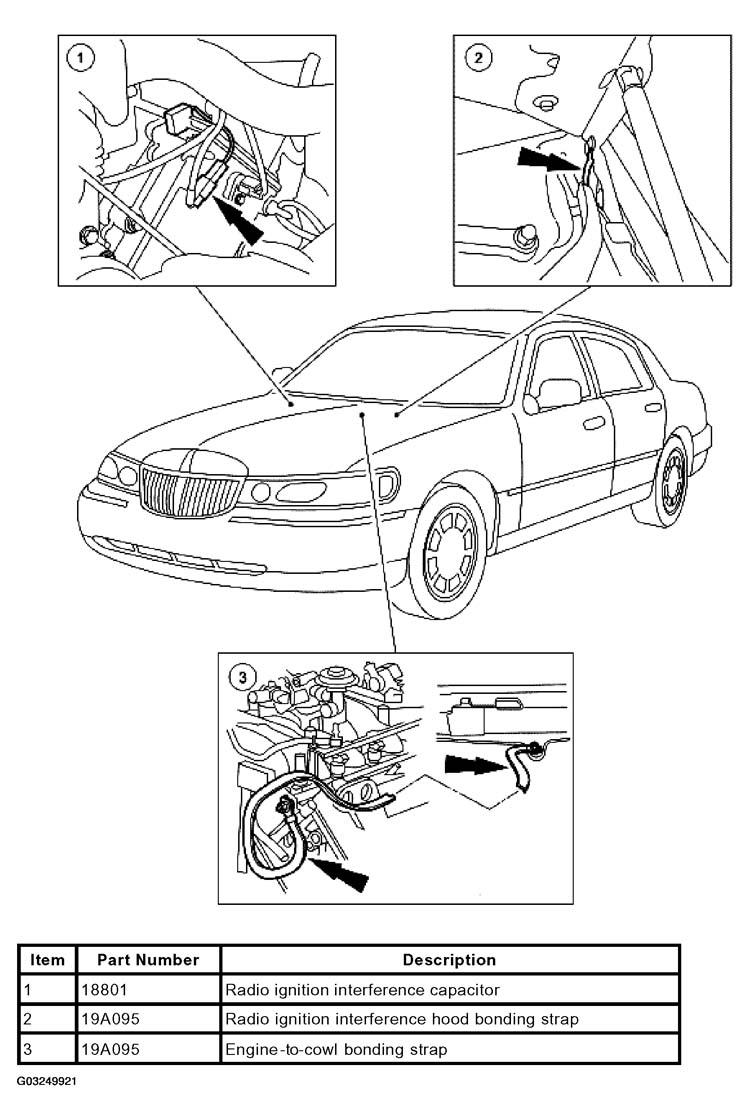

Fig 1: Identifying Radio Frequency Interference Suppression Equipment
G03249921Courtesy of FORD MOTOR CO.

The radio suppression equipment reduces interference transmitted through the speakers by the engine ignition and electrical system.
