Removal And Installation: Column: Removal

All vehicles

    NOTE: Make sure the front wheels are in the straight-ahead position.
  1. Disconnect the battery ground cable (14301) and wait at least one minute.
  2. WARNING: To avoid the risk of serious personal injury, read and follow all warnings, notes and instructions in the deactivation procedure.
  3. Deactivate the supplemental restraint system (SRS). Refer to DEACTIVATION .
  4. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the clockspring removal and installation procedure.
  5. Remove the clockspring. Refer to CLOCKSPRING .
  6. Remove the reinforcement.
    1. Remove the screws and the data link connector.
    2. Remove the bolts and the reinforcement.

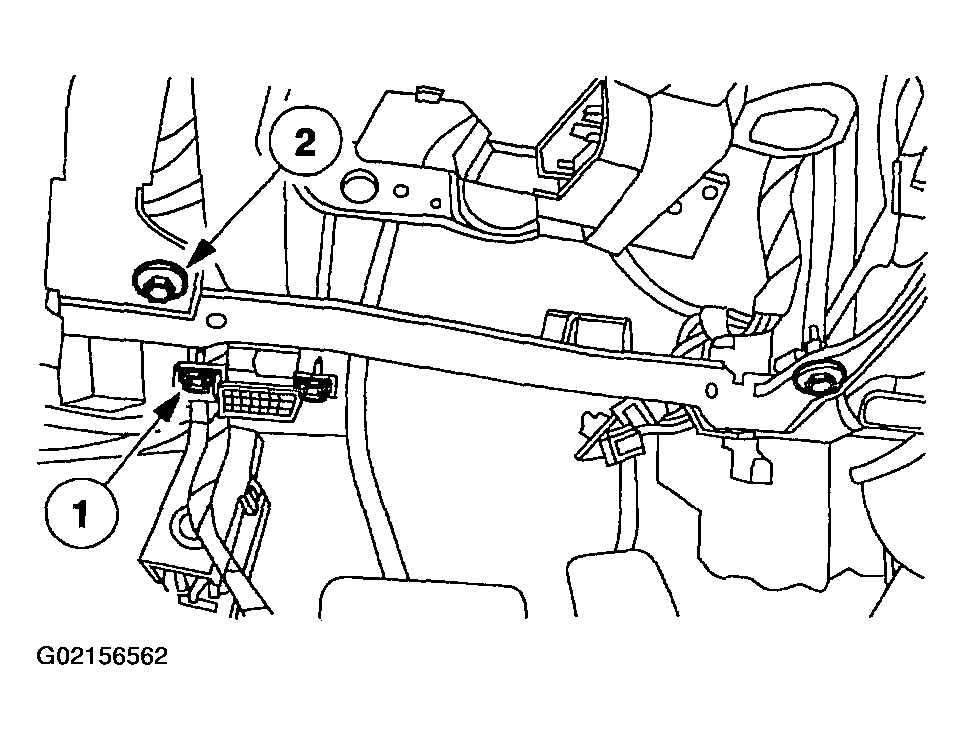

    Fig 1: Removing Reinforcement.
    G02156562Courtesy of FORD MOTOR CO.
  7. Remove the screws.

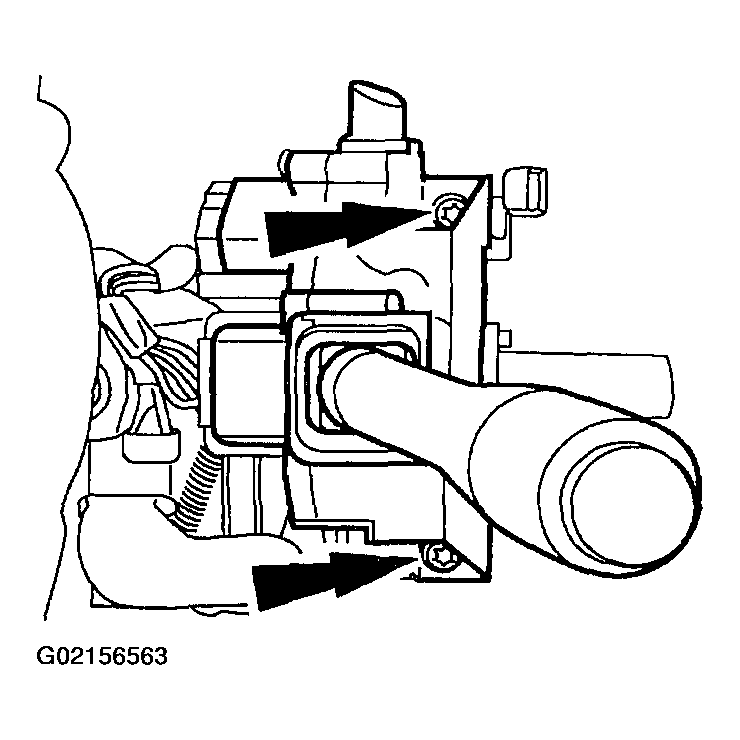

    Fig 2: Identifying Multi-Function Switch Screws
    G02156563Courtesy of FORD MOTOR CO.
  8. Disconnect the electrical connectors and remove the multi-function switch.

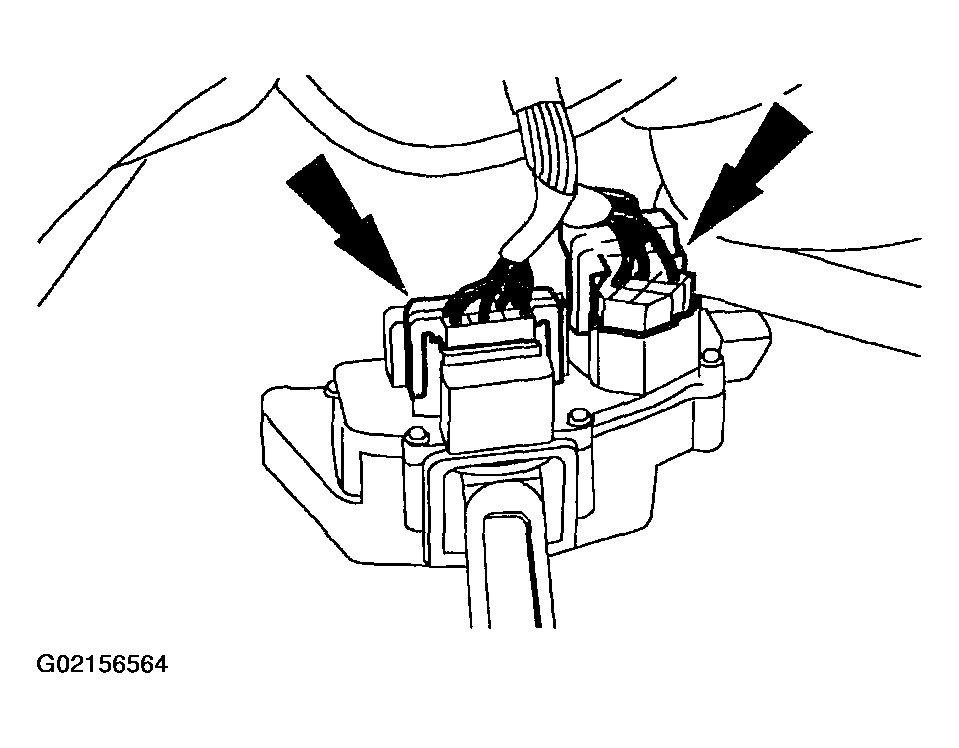

    Fig 3: Removing Multi-Function Switch Connectors
    G02156564Courtesy of FORD MOTOR CO.
  9. Position the wiring aside.
    1. Disconnect the electrical connector.
    2. Pull the wiring harness routing pin out of the steering column.

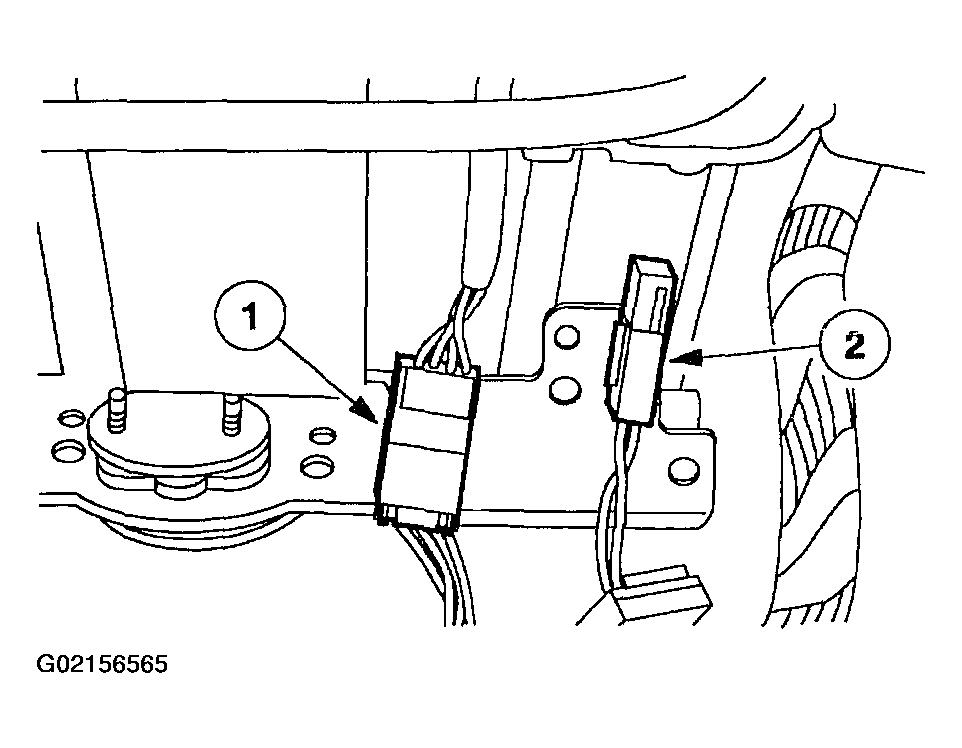

    Fig 4: Positioning Wiring Aside
    G02156565Courtesy of FORD MOTOR CO.
  10. Pull the wiring harness routing pin out of the steering column.

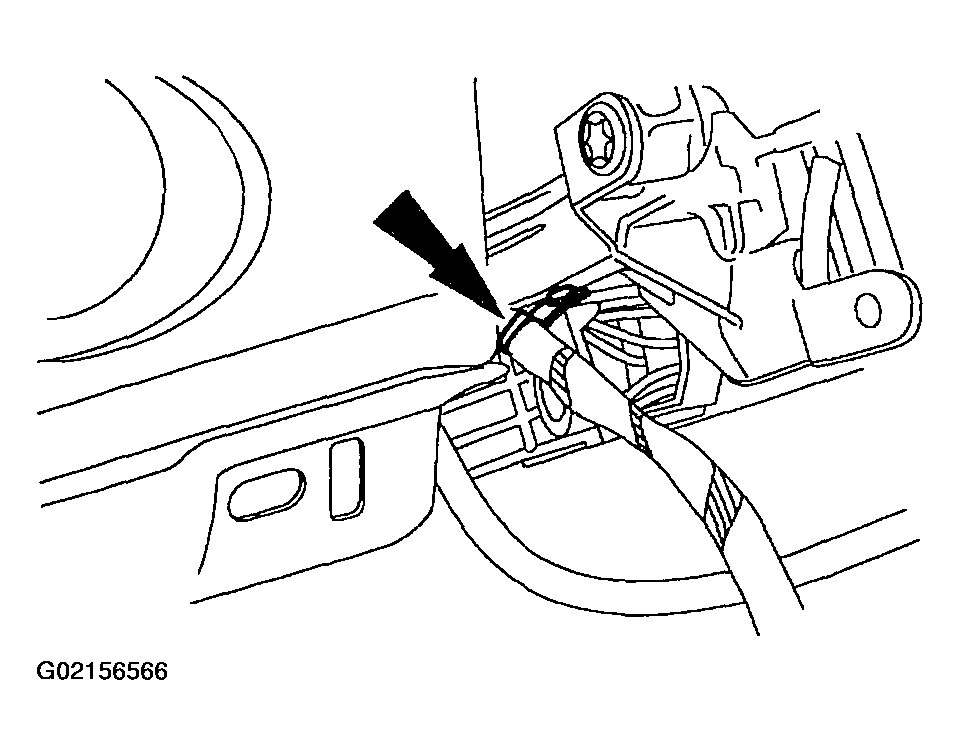

    Fig 5: Pulling Wiring Harness Routing Pin Out Of Steering Column
    G02156566Courtesy of FORD MOTOR CO.
  11. Disconnect the ignition switch electrical connector.

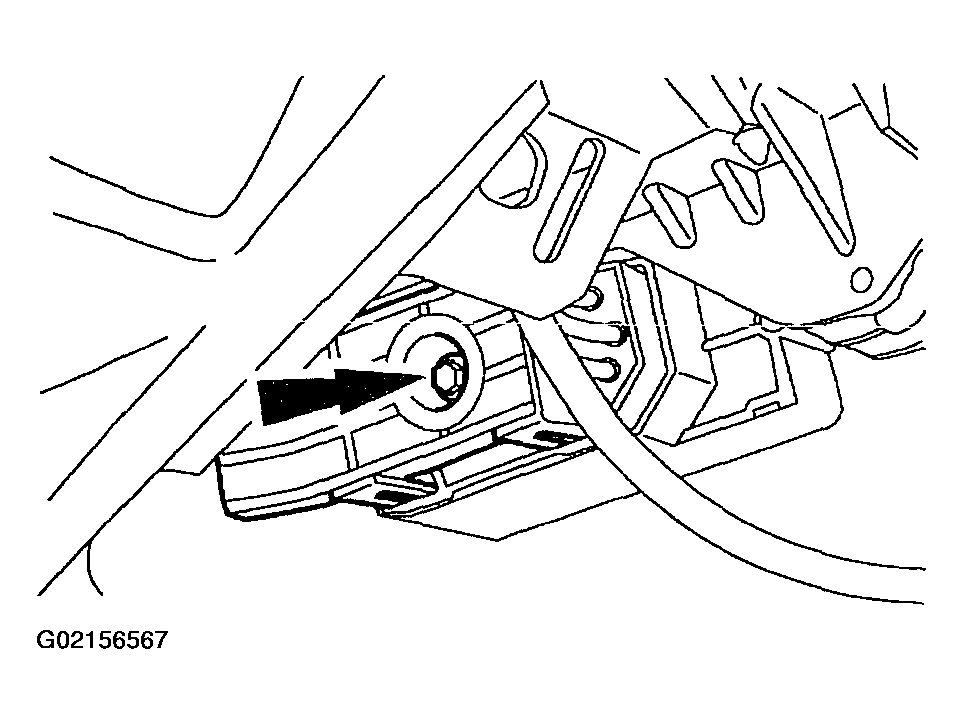

    Fig 6: Disconnecting Ignition Switch Electrical Connector
    G02156567Courtesy of FORD MOTOR CO.
  12. Remove the bolt.

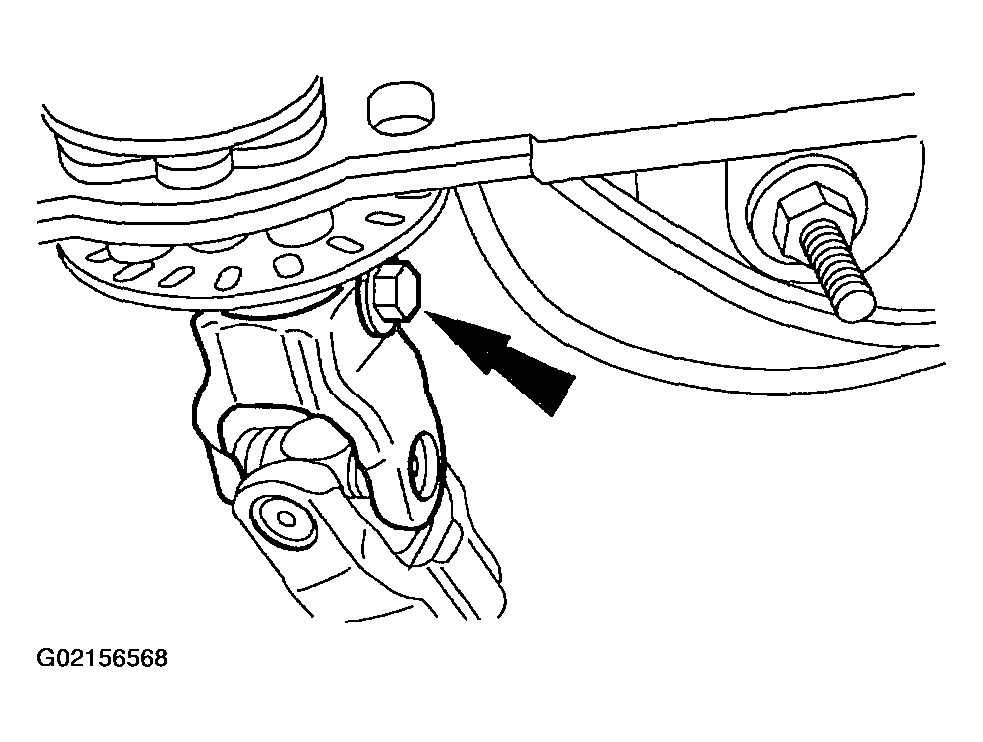

    Fig 7: Removing Steering Shaft Bolt
    G02156568Courtesy of FORD MOTOR CO.
  13. Remove the four nuts and lower the steering column.

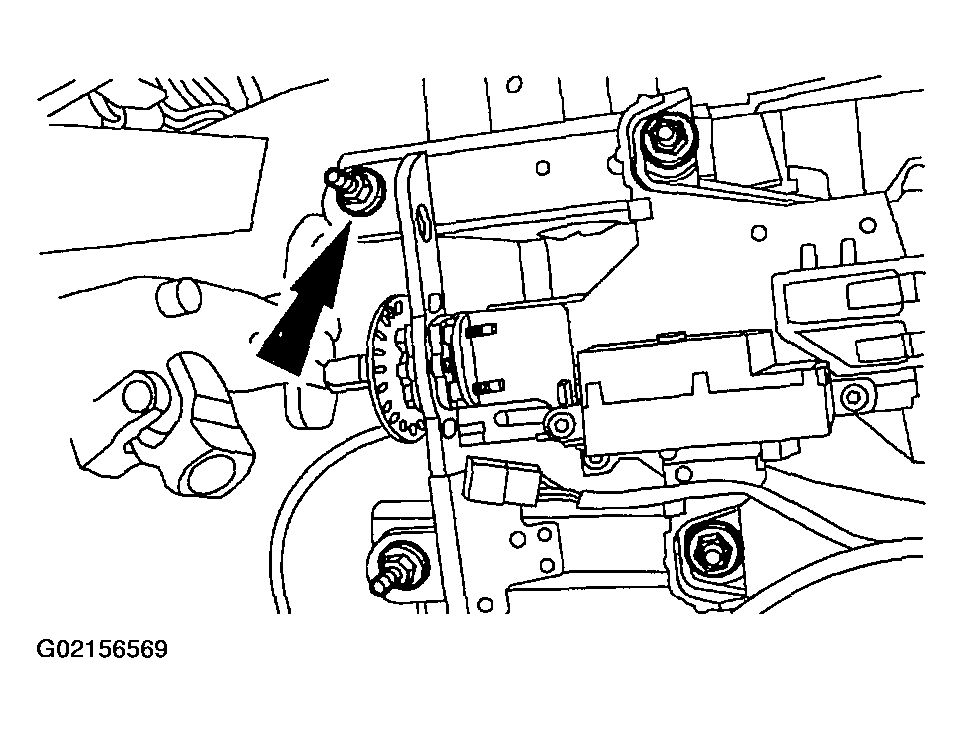

    Fig 8: Removing Steering Column Nuts
    G02156569Courtesy of FORD MOTOR CO.

    Vehicles with column shift

  14. Disconnect the brake shift interlock electrical connector.

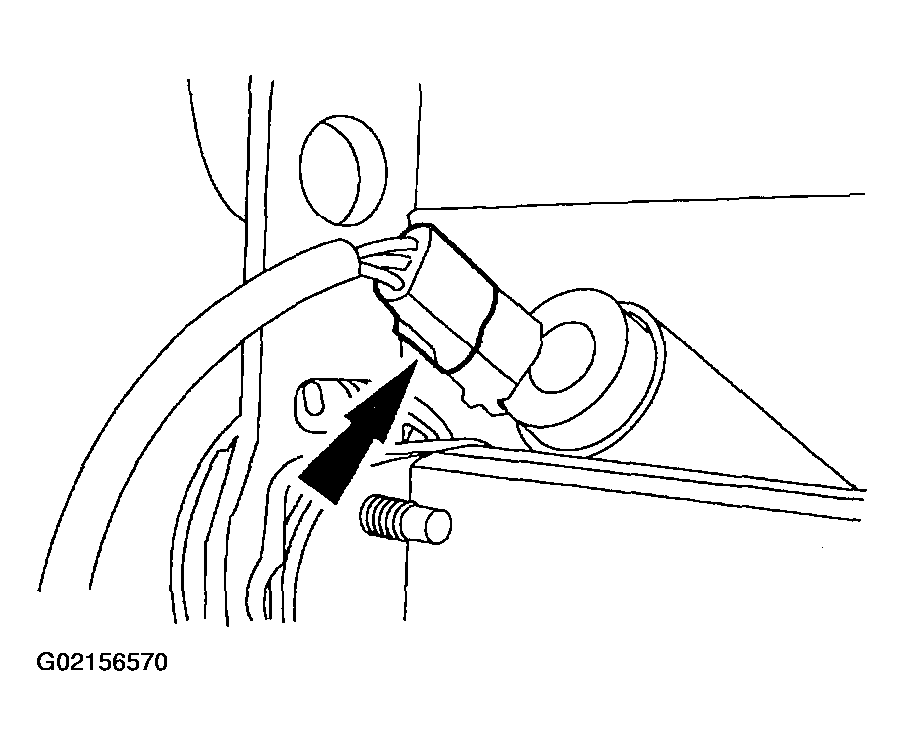

    Fig 9: Disconnecting Brake Shift Interlock Electrical Connector
    G02156570Courtesy of FORD MOTOR CO.
  15. Disconnect the shift cable and remove the steering column.

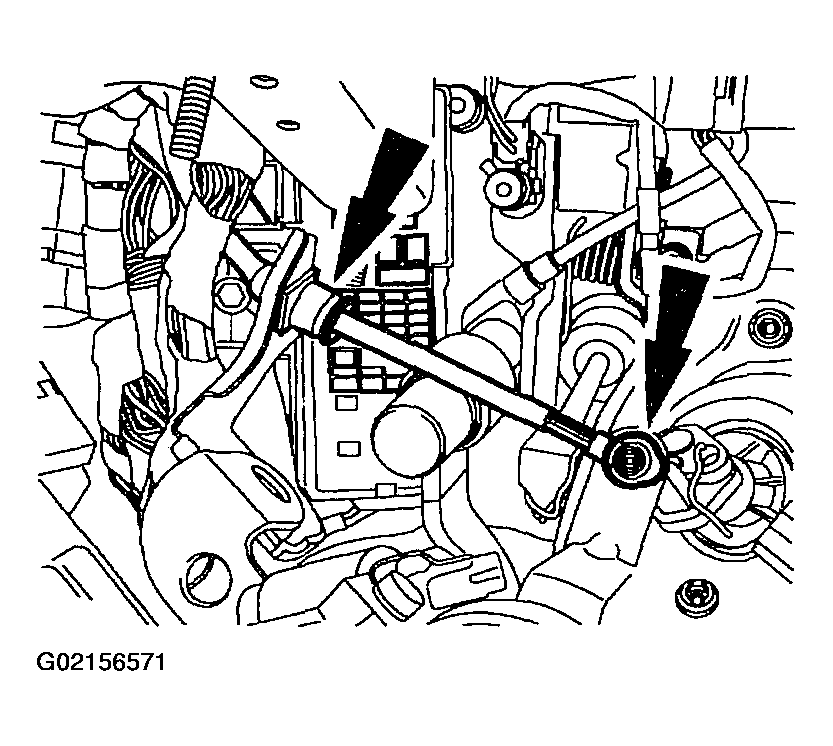

    Fig 10: Disconnecting Shift Cable
    G02156571Courtesy of FORD MOTOR CO.

    Vehicles with console shift

  16. Disconnect the shift interlock actuator and remove the steering column.

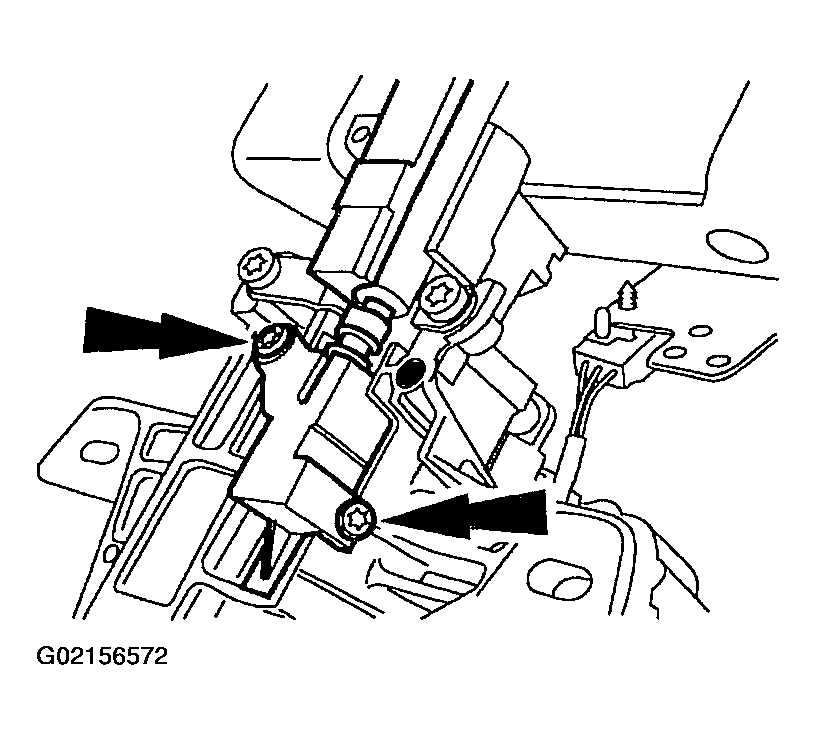

    Fig 11: Disconnecting Shift Interlock Actuator
    G02156572Courtesy of FORD MOTOR CO.
