Home >> Ford >> 2002 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Relay >> Locations
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Power Window Relay: Locations

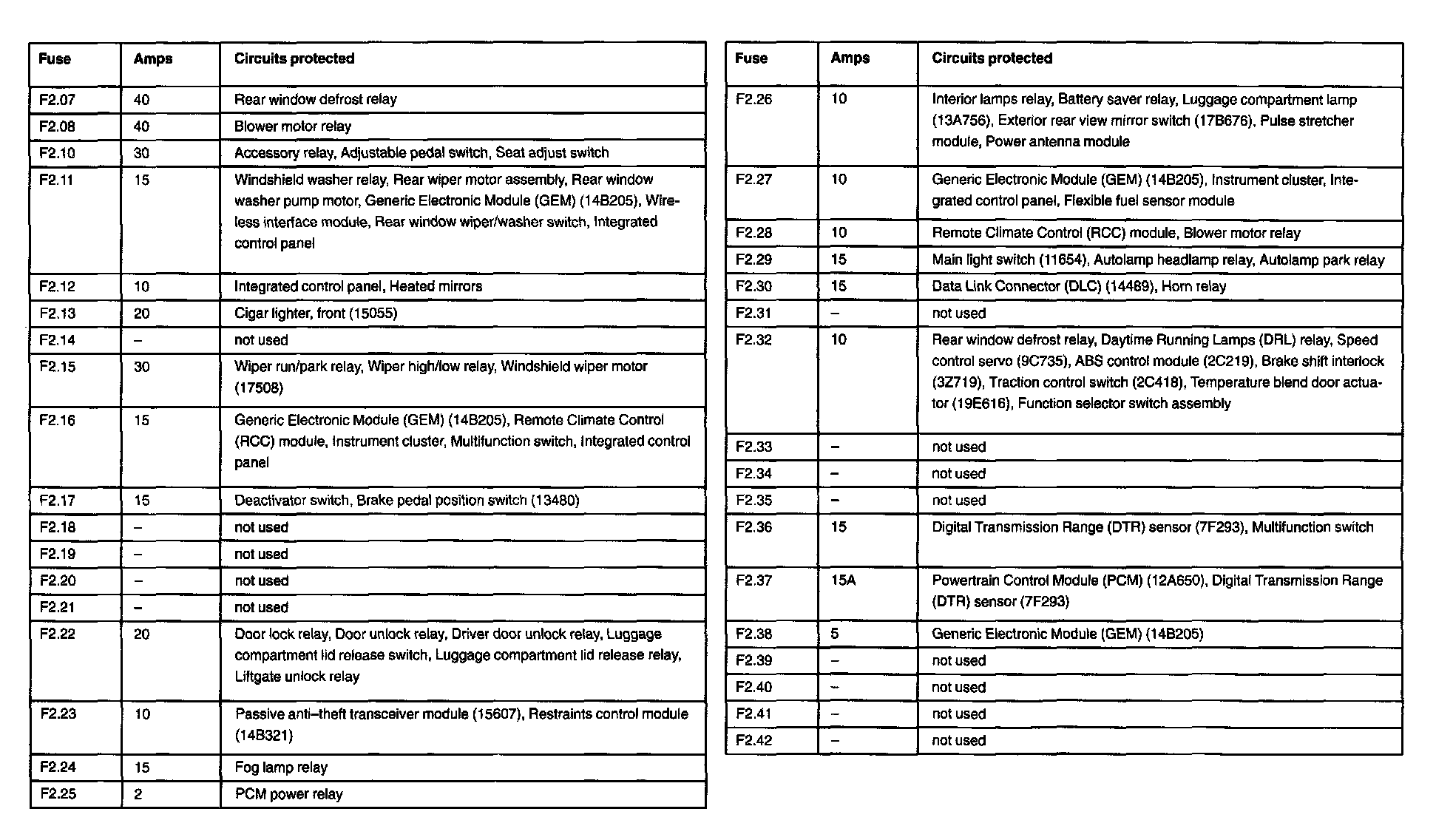

Diagram 700-01-00-3:

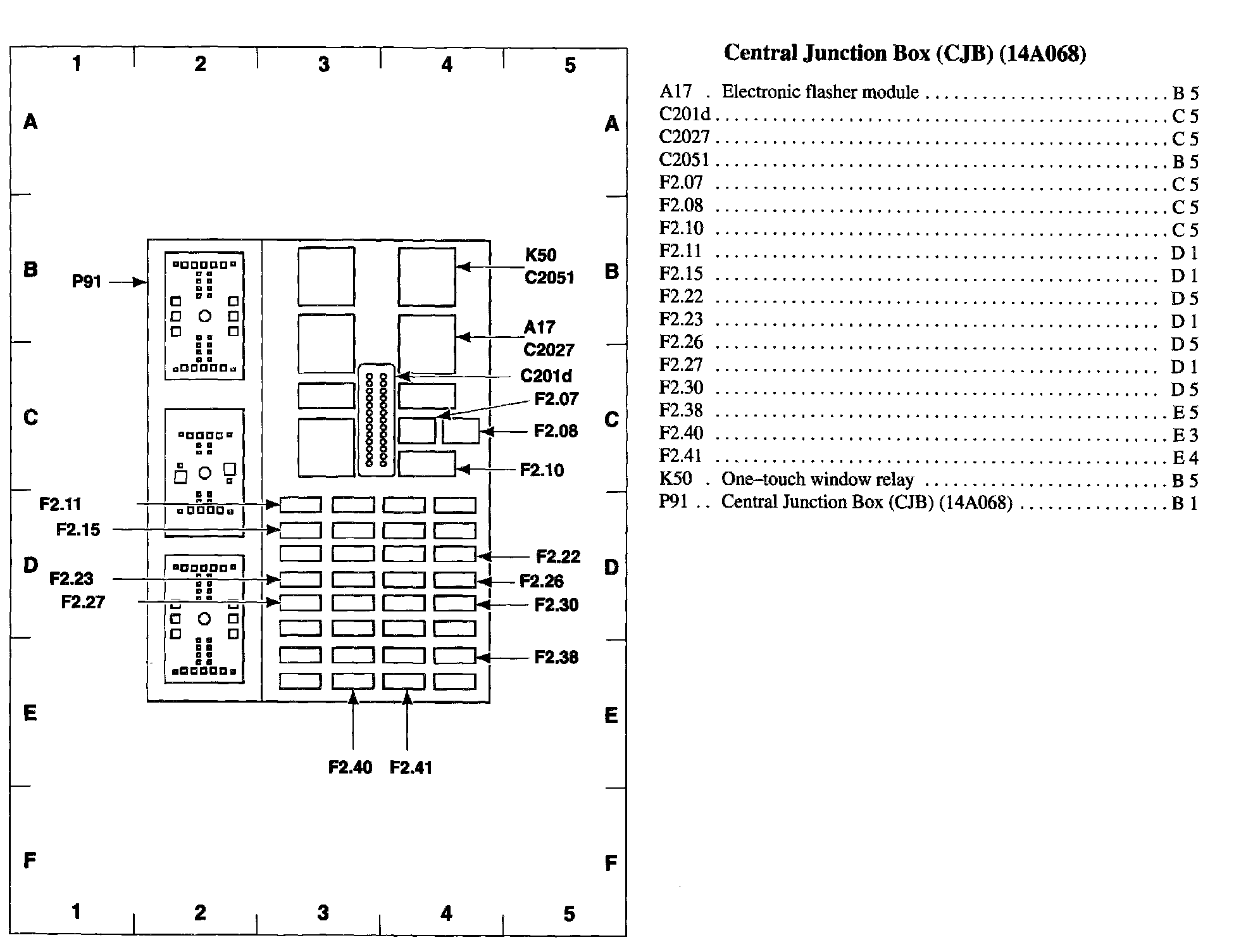

Part 2:






View 151-47:
