Control Module HVAC: Service and Repair

REMOVAL
1. Remove the evaporator core housing.

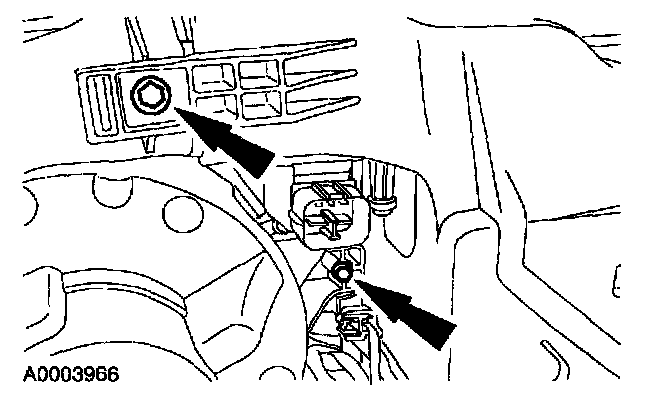

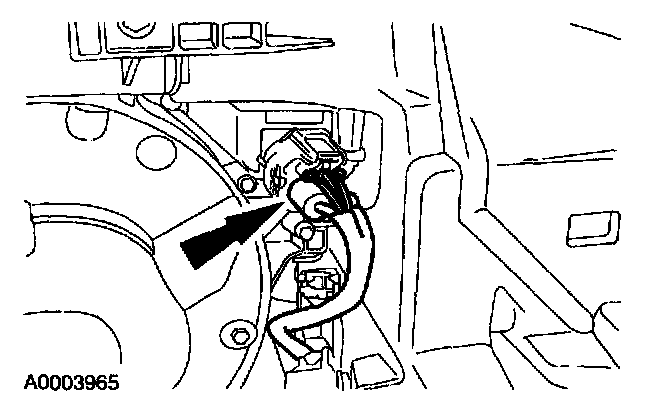

2. Disconnect the connector.







3. Remove the screws which attach the air inlet housing to the evaporator core housing.

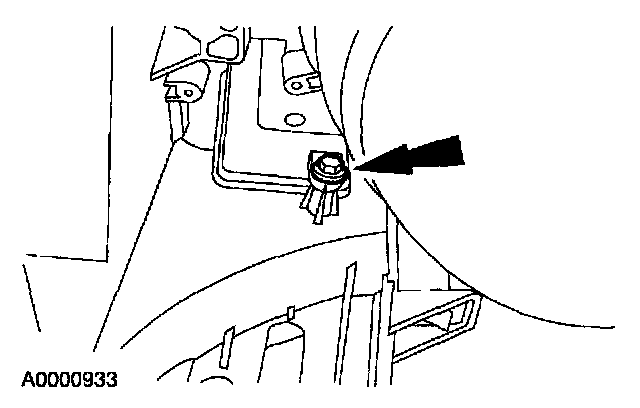

4. Remove the blower motor speed control mounting screw.

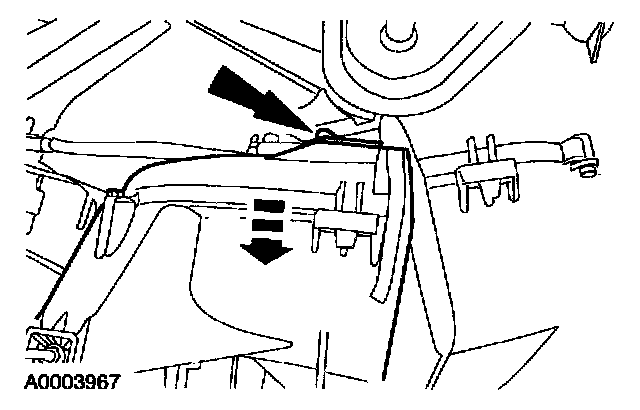

5. Disengage the clip, separate the air inlet and evaporator housings and remove the blower motor speed control.

INSTALLATION
1. To install, reverse the removal procedure.
