Knock Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the intake manifold.

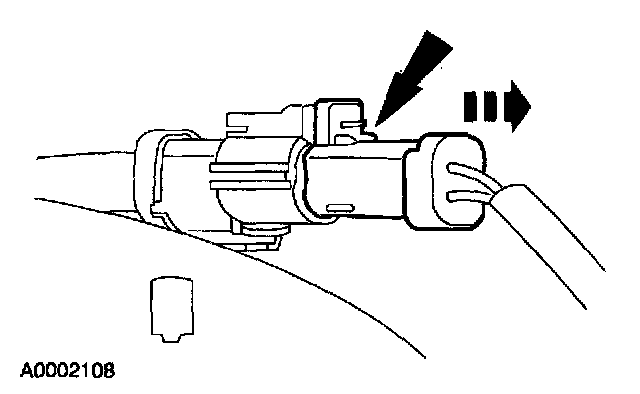

3. Disconnect the Knock Sensor (KS) electrical connectors.

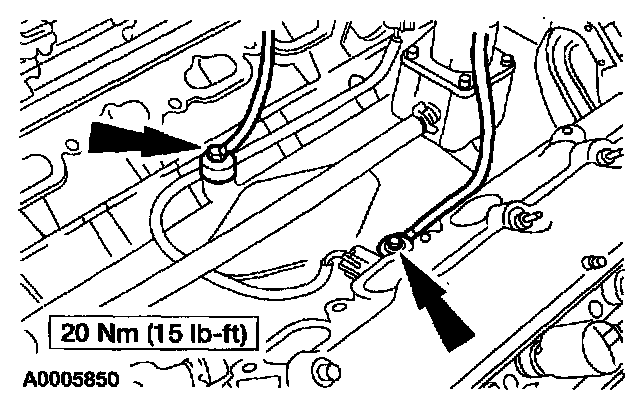

4. Remove the bolts and the knock sensors.

INSTALLATION
1. To install, reverse the removal procedure.
