System Specifications

SPECIFICATIONS





General Specifications

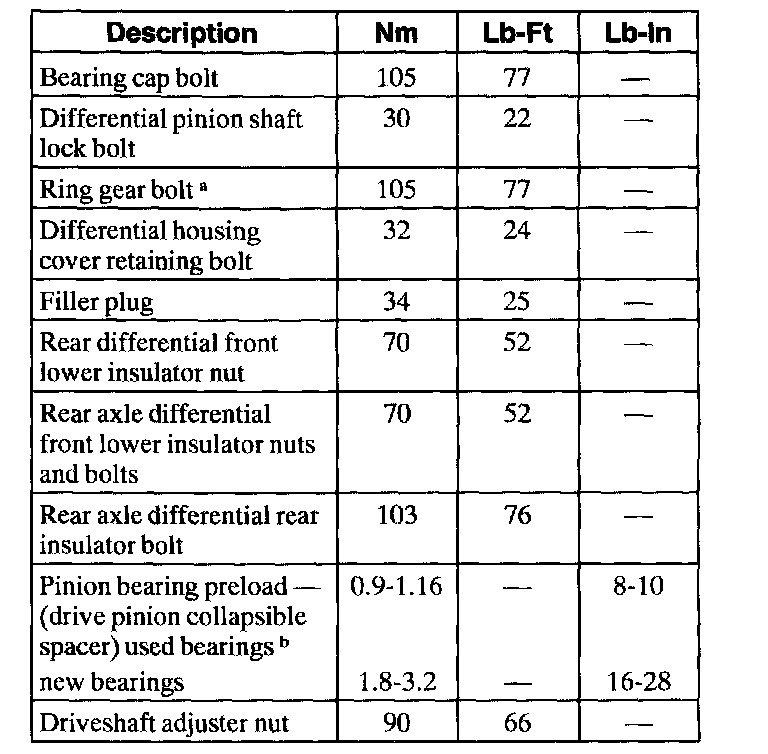

Torque Specifications

a Use Stud and Bearing Mount E0AZ-19554-BA or equivalent meeting Ford specification WSK-M2G349-A1.
b With pinion flange yoke seal.
