General Specifications

General Specifications

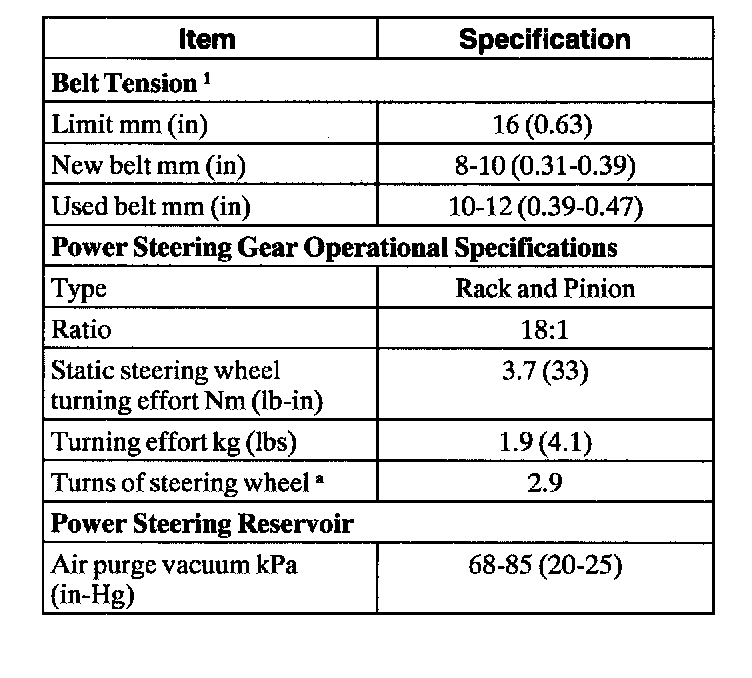

Part 1 of 2

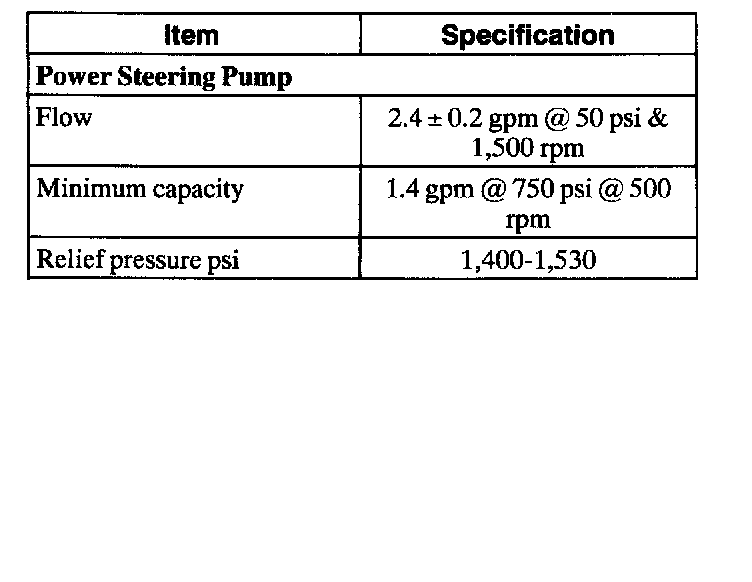

Part 2 of 2

1 Power Steering Pump Belt Deflection (22 lb. Applied Force)
a Lock to Lock-Linkage Disconnected
