In-Vehicle Repair: FLEXPLATE: Installation

NOTE: The crankshaft dowel must be positioned below the outer face of the flexplate.
  1. Install the flexplate with the elongated hole over the crankshaft dowel.

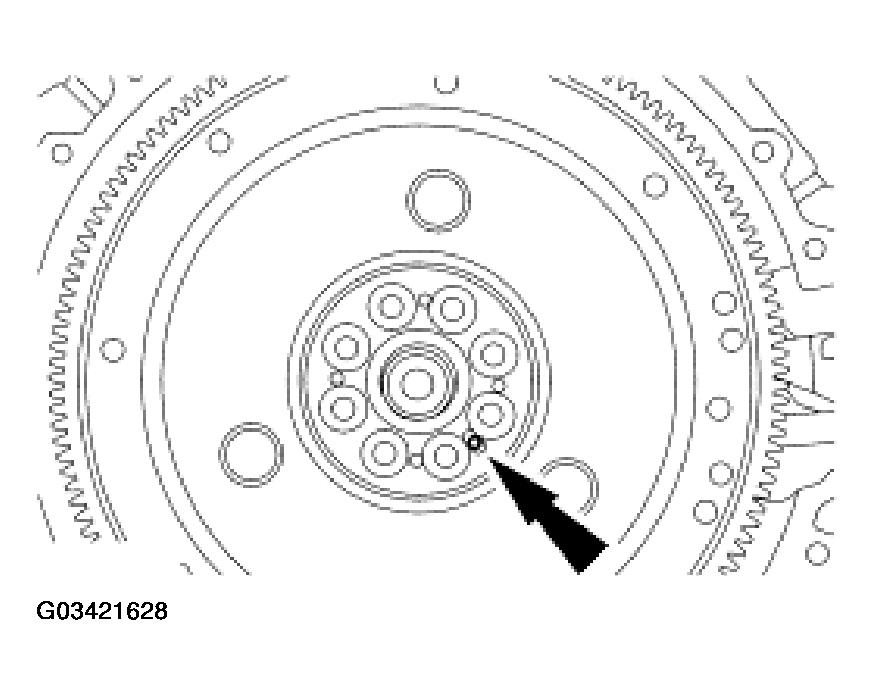

    Fig 1: Installing Flexplate
    G03421628Courtesy of FORD MOTOR CO.
  2. Install the flexplate bolts and tighten in two stages in the sequence shown.
    • Stage 1: Tighten to 15 N.m (11 lb-ft).
    • Stage 2: Tighten to 110 N.m (81 lb-ft).

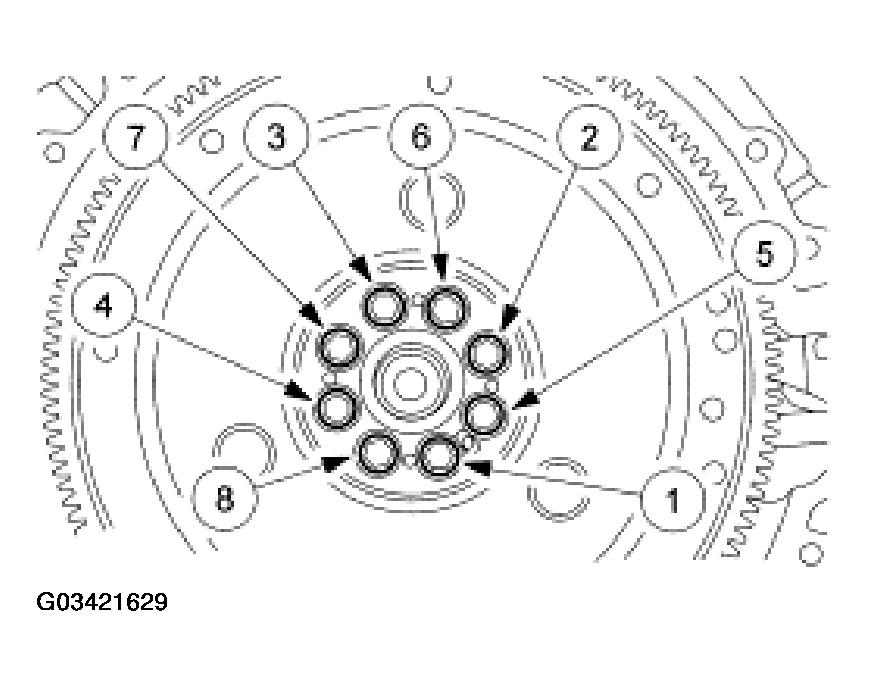

    Fig 2: Flexplate Bolt Tightening Sequence
    G03421629Courtesy of FORD MOTOR CO.
  3. Install the transmission. For additional information, refer to REMOVAL & INSTALLATION - A/T .
