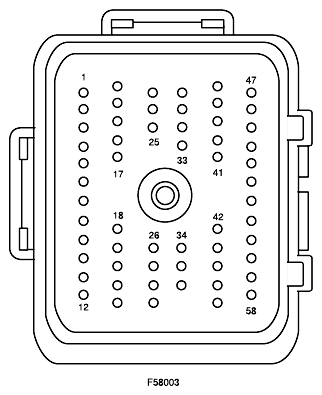

| 1 |
... |
not used |
| 2 |
... |
not used |
| 3 |
4-RE8 (GY) |
Data link, bus positive |
| 4 |
5-RE8 (BU) |
Data link, bus negative |
| 5 |
... |
not used |
| 6 |
91S-RL3 (BK/OG) |
Ground, Switched |
| 7 |
... |
not used |
| 8 |
... |
not used |
| 9 |
91S-FA79 (BK/OG) |
Ground, Switched |
| 10 |
... |
not used |
| 11 |
... |
not used |
| 12 |
91S-RL25 (BK/BU) |
Ground, Switched |
| 13 |
7-RE14 (YE/GN) |
Voltage D.C. supplied at all times (sensor) |
| 14 |
... |
not used |
| 15 |
... |
not used |
| 16 |
... |
not used |
| 17 |
9-RE8 (BN) |
Sensor signal return (reference/ground) |
| 18 |
... |
not used |
| 19 |
... |
not used |
| 20 |
7-RE8 (YE) |
Voltage D.C. supplied at all times (sensor) |
| 21 |
... |
not used |
| 22 |
... |
not used |
| 23 |
... |
not used |
| 24 |
31-RE8 (BK) |
Ground |
| 25 |
31-RE21 (BK) |
Ground |
| 26 |
31-RE26 (BK) |
Ground |
| 27 |
31-RE25 (BK) |
Ground |
| 28 |
29S-RE21 (OG/GN) |
Brake pressure switch (2B264) |
| 29 |
10-PG12 (GY/WH) |
signal return Normal |
| 30 |
- |
not used |
| 31 |
8-RJ22 (WH/BU) |
Mass Air Flow (MAF) sensor (12B579), signal, return |
| 32 |
15S-RE8 (GN/YE) |
Voltage, ignition switch in Start or Run (not overload protected), Switched |
| 33 |
15S-RE21 (GN/OG) |
Voltage, ignition switch in Start or Run (not overload protected), Switched |
| 34 |
- |
not used |
| 35 |
- |
not used |
| 36 |
8-PG21 (WH/GN) |
Normal |
| 37 |
8-CE6 (WH) |
Power steering pressure switch |
| 38 |
9-RJ22 (BN/BU) |
Mass Air Flow (MAF) sensor (12B579) |
| 39 |
- |
not used |
| 40 |
29S-RE13 (OG/GN) |
Voltage supplied at all times (overload protected), Switched |
| 41 |
8-TA21 (WH/GN) |
Sensor signal |
| 42 |
8-FA88 (WH/VT) |
Sensor signal |
| 43 |
91-RE27 (BK/RD) |
Ground |
| 44 |
29-RE8 (OG/YE) |
Voltage supplied at all times (overload protected) |
| 45 |
8-PG12 (WH/VT) |
Sensor signal |
| 46 |
10-PG21 (GY/OG) |
Signal 2 (Y-direction, reverse, downward) |
| 47 |
- |
not used |
| 48 |
- |
not used |
| 49 |
8-TA67 (WH/VT) |
Sensor signal |
| 50 |
8-TA68 (WH/BK) |
Sensor signal |
| 51 |
8-RJ40 (WH/GN) |
Sensor signal |
| 52 |
8-RJ13 (WH/VT) |
Sensor signal |
| 53 |
- |
not used |
| 54 |
- |
not used |
| 55 |
- |
not used |
| 56 |
31S-PG24 (BK/OG) |
Ground, Switched |
| 57 |
7-PG24 (YE/BU) |
Voltage D.C. supplied at all times (sensor) |
| 58 |
8-RE32 (WH/VT) |
Sensor signal |
