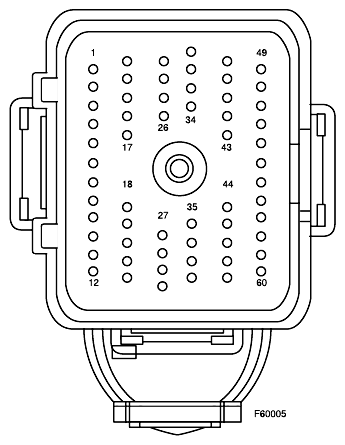

| 1 |
91S-RR6 (BN/RD) |
Coil On Plug (COP) 2 (12029) |
| 2 |
91S-RL10 (BN/WH) |
Injector 1 (9F593) |
| 3 |
- |
not used |
| 4 |
- |
not used |
| 5 |
- |
not used |
| 6 |
- |
not used |
| 7 |
91S-RJ14 (BN) |
Heated Oxygen Sensor (HO2S) #11 (9F472), heater |
| 8 |
91S-RJ15 (BN/RD) |
Heated Oxygen Sensor (HO2S) #21 (9F472), heater |
| 9 |
91S-RL19 (BN) |
Idle air control valve (IAC) (9F715) |
| 10 |
- |
not used |
| 11 |
91S-RL14 (BN/GN) |
Injector 5 (9F593) |
| 12 |
91S-RR10 (BN/WH) |
Coil On Plug (COP) 6 (12029) |
| 13 |
91S-RR8 (BN/GN) |
Coil On Plug (COP) 4 (12029) |
| 14 |
91S-RL11 (BN) |
Injector 2 (9F593) |
| 15 |
- |
not used |
| 16 |
91S-RL7 (BN/GN) |
EGR Vacuum Regulator (EVR) |
| 17 |
9-RE8 (BN) |
Sensor signal return (reference/ground) |
| 18 |
- |
not used |
| 19 |
- |
not used |
| 20 |
7-RN11 (YE/BK) |
Voltage D.C. supplied at all times (sensor) |
| 21 |
91S-RL15 (BN/YE) |
Injector 6 (9F593) |
| 22 |
91S-RR7 (BN/BU) |
Coil On Plug (COP) 3 (12029) |
| 23 |
91S-RR9 (BN/YE) |
Coil On Plug (COP) 5 (12029) |
| 24 |
91S-RL12 (BN/RD) |
Injector 3 (9F593) |
| 25 |
- |
not used |
| 26 |
- |
not used |
| 27 |
- |
not used |
| 28 |
10-BA25 (GY/RD) |
Generator |
| 29 |
91S-RL16 (BN/WH) |
Injector 7 (9F593) |
| 30 |
91S-RR11 (BN) |
Coil On Plug (COP) 7 (12029) |
| 31 |
91S-RR5 (BN) |
Coil On Plug (COP) 1 (12029) |
| 32 |
91S-RL13 (BN/BU) |
Injector 4 (9F593) |
| 33 |
- |
not used |
| 34 |
- |
not used |
| 35 |
- |
not used |
| 36 |
91S-RG1 (BN) |
Hydraulic fan solenoid (8K621) |
| 37 |
91S-RL17 (BN) |
Injector 8 (9F593) |
| 38 |
91S-RR12 (BN/RD) |
Coil On Plug (COP) 8 (12029) |
| 39 |
- |
not used |
| 40 |
8-RJ33 (WH/VT) |
Cylinder-head temperature sensor (6G004) |
| 41 |
8-RJ7 (WH/BU) |
Exhaust Pressure Transducer (EPT) sensor |
| 42 |
10-RJ18 (GY/BK) |
Knock sensor 1 (6G004) |
| 43 |
10-RJ19 (GY/RD) |
Knock sensor 2 (6G004) |
| 44 |
8-RJ15 (WH/RD) |
Heated Oxygen Sensor (HO2S) #21 (9F472) |
| 45 |
8-RJ14 (WH) |
Heated Oxygen Sensor (HO2S) #11 (9F472) |
| 46 |
- |
not used |
| 47 |
- |
not used |
| 48 |
- |
not used |
| 49 |
8-RJ11 (WH/GN) |
Fuel rail pressure transducer sensor |
| 50 |
8-BA25 (WH/RD) |
Generator |
| 51 |
8-RJ18 (WH/BK) |
Knock sensor 1 (6G004) |
| 52 |
8-RJ19 (WH/RD) |
Knock sensor 2 (6G004) |
| 53 |
8-RJ3 (WH/VT) |
Camshaft position sensor (6B288) |
| 54 |
- |
not used |
| 55 |
10-RJ4 (GY/RD) |
Crankshaft position sensor (6C315) |
| 56 |
8-RJ4 (WH/RD) |
Crankshaft position sensor (6C315) |
| 57 |
8-RJ28 (WH) |
Throttle Position Sensor (TPS) (9B989) |
| 58 |
- |
not used |
| 59 |
- |
not used |
| 60 |
- |
not used |
