Jacking & Hoisting: Hoist

CAUTION: Follow hoist manufacturer instructions. DO NOT let hoist or adapters contact suspension, exhaust or steering components.

For lifting points, see Fig 1 .

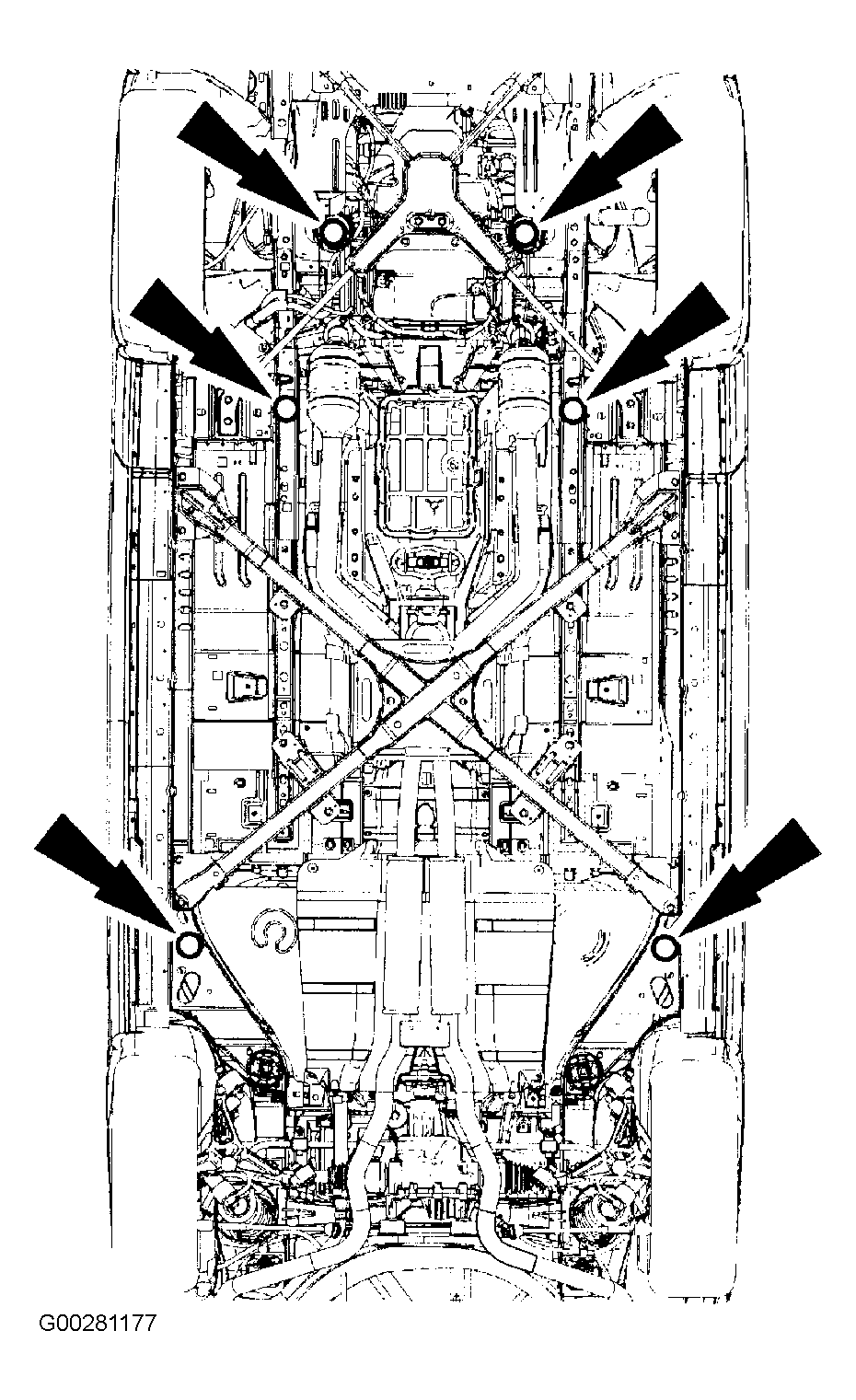

Fig 1: Locating Lifting Points
G00281177Courtesy of FORD MOTOR CO.
