Pinpoint Test C: Brake Shift Interlock Inoperative

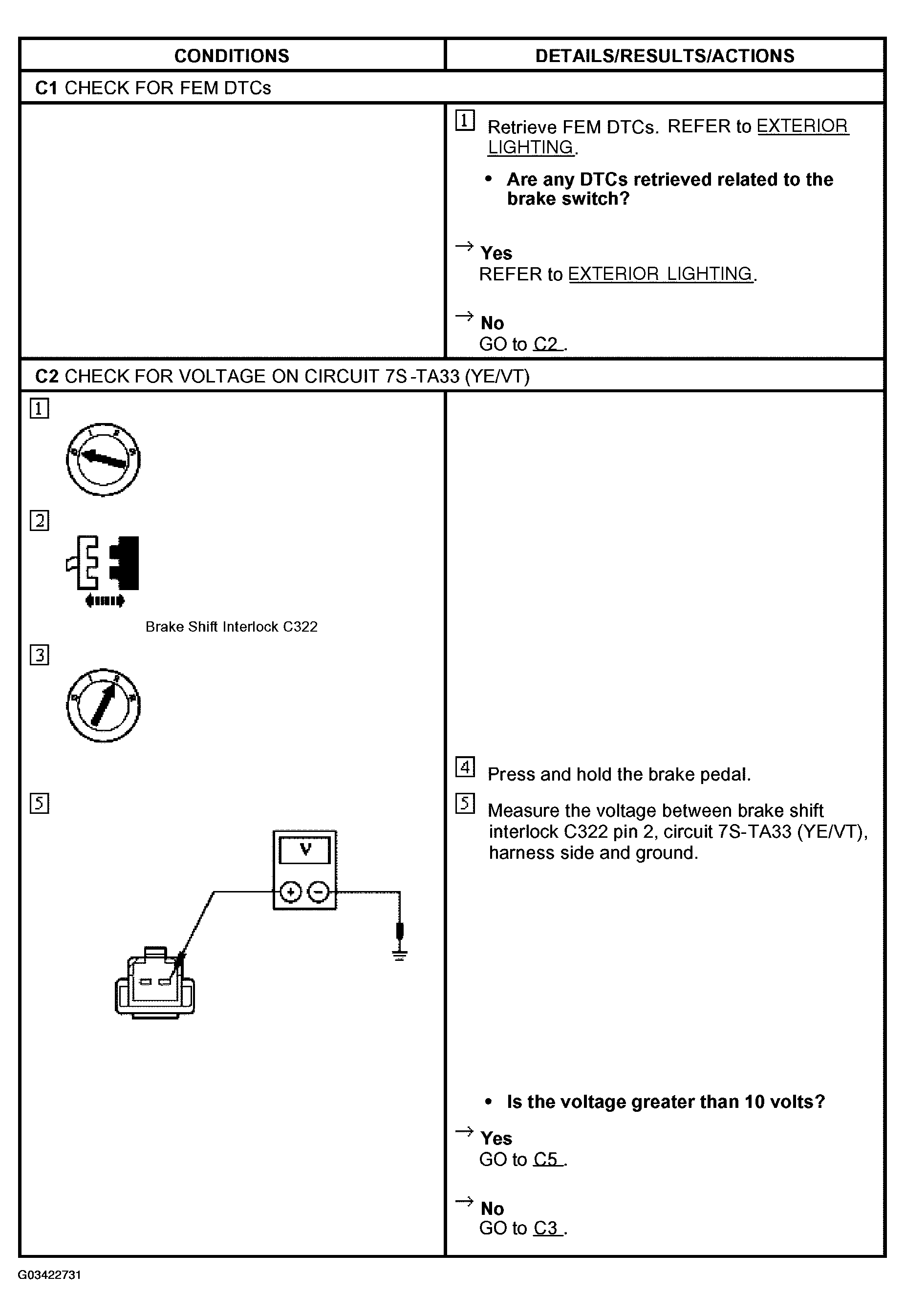

Fig 1: Pinpoint Test C: Brake Shift Interlock Inoperative (C1 - C2)
G03422731Courtesy of FORD MOTOR CO.

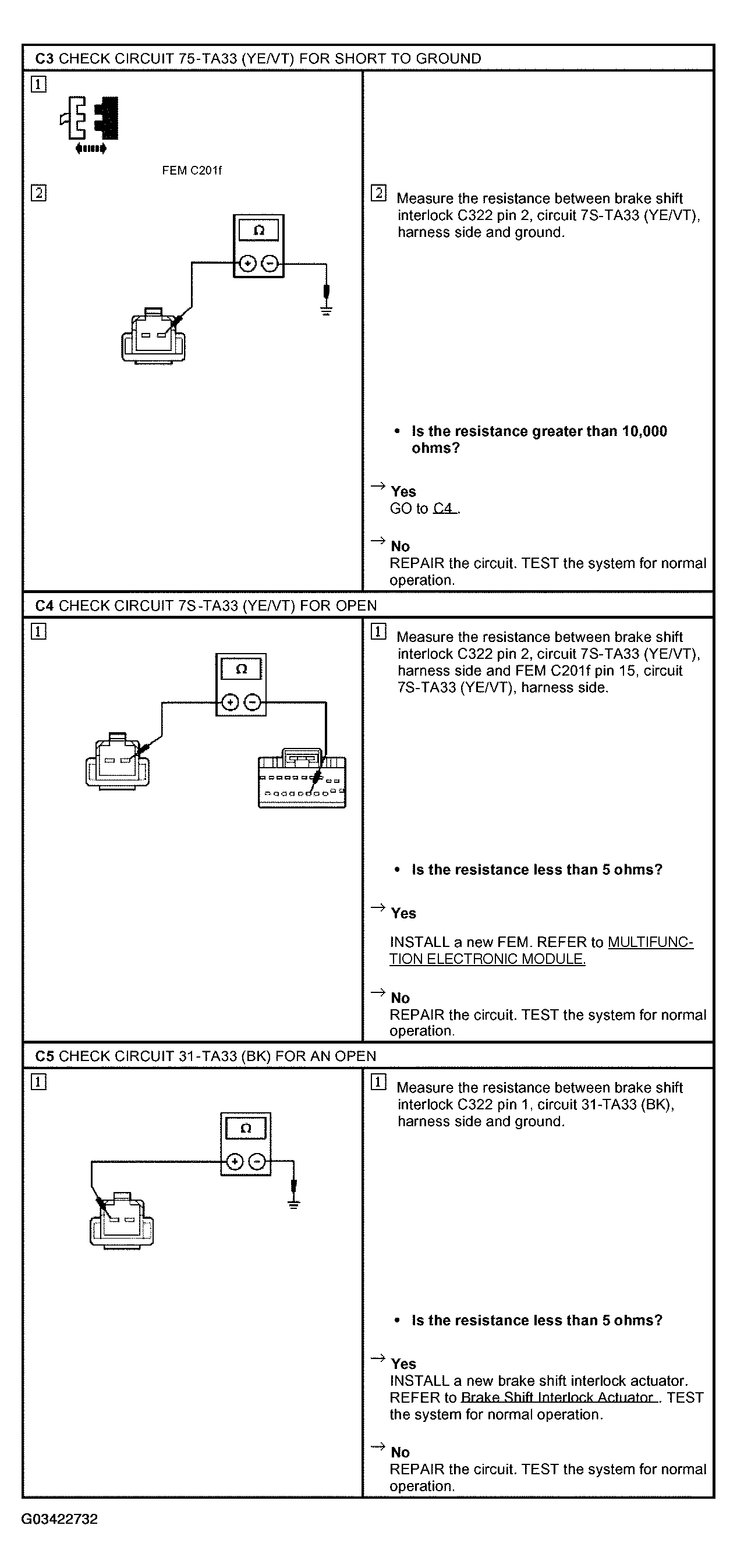

Fig 2: Pinpoint Test C: Brake Shift Interlock Inoperative (C3 - C5)
G03422732Courtesy of FORD MOTOR CO.
