Removal and Installation

    CAUTION: Prior to removal of module, it is necessary to upload module configuration information to the scan tool. This information needs to be downloaded into the new module once installed. Refer to MODULE CONFIGURATION .
  1. Disconnect the battery ground cable.
  2. Raise and support the vehicle.
  3. Remove the hydraulic control unit (HCU) dust shield.
    1. Remove the screw.
    2. Remove the bolts.

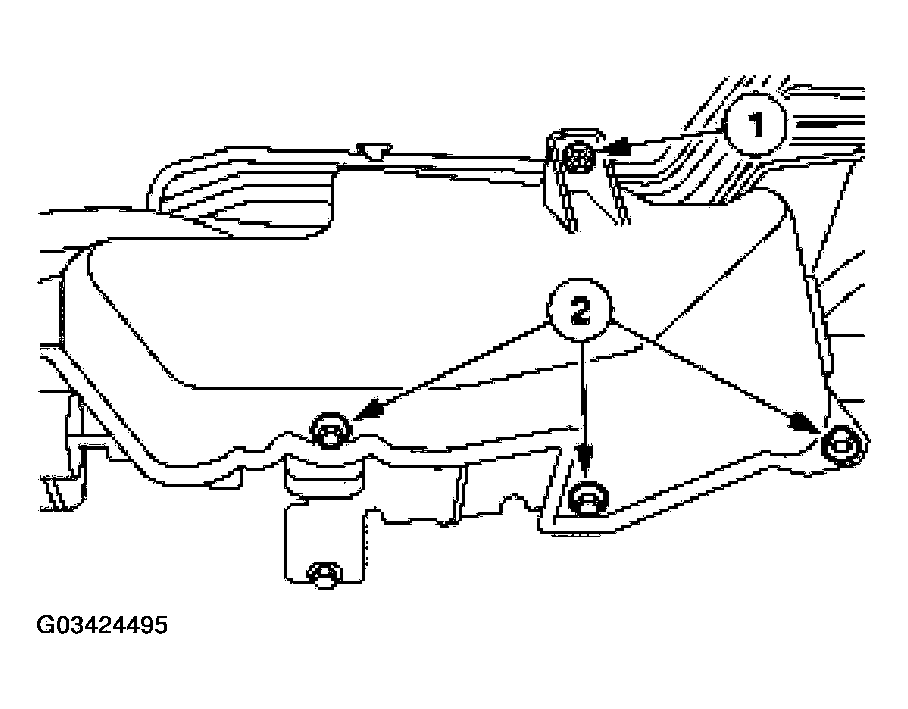

      Fig 1: Removing Hydraulic Control Unit (HCU) Dust Shield
      G03424495Courtesy of FORD MOTOR CO.
  4. Disconnect the stability assist module electrical connector.
    • Slide the connector lock rearward.

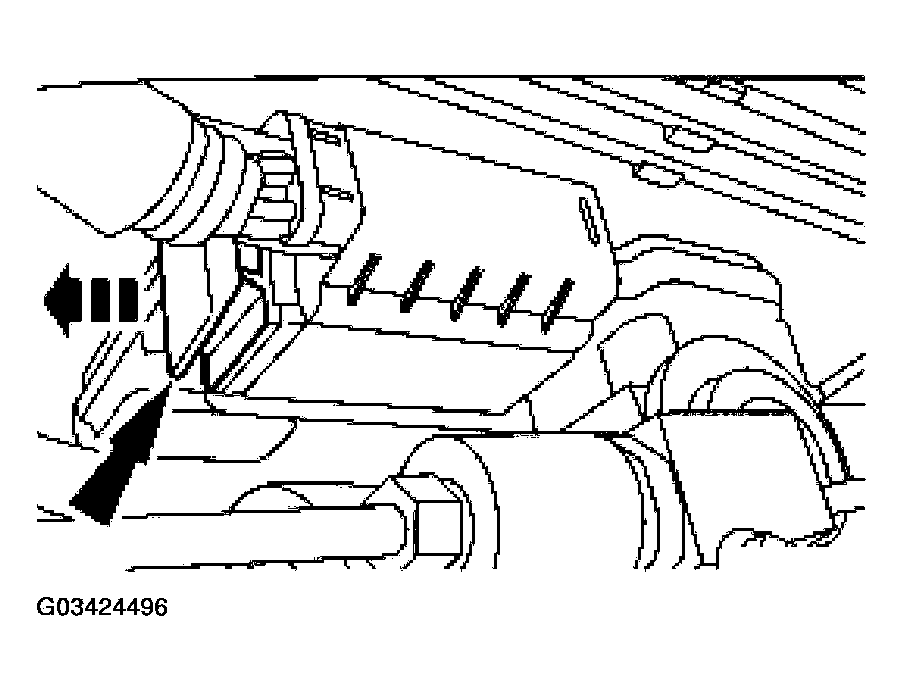

      Fig 2: Disconnecting Stability Assist Module Electrical Connector
      G03424496Courtesy of FORD MOTOR CO.
  5. Remove the three HCU bracket to frame bolts.

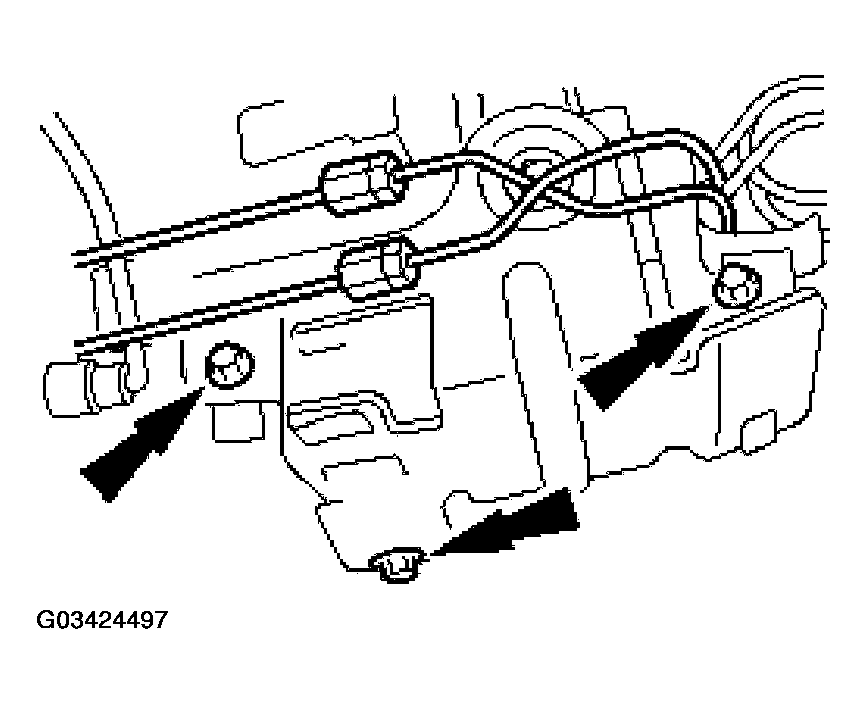

    Fig 3: Removing HCU Bracket To Frame Bolts
    G03424497Courtesy of FORD MOTOR CO.
  6. Lift the bracket hooks from the frame and lower the HCU to access the stability assist module.

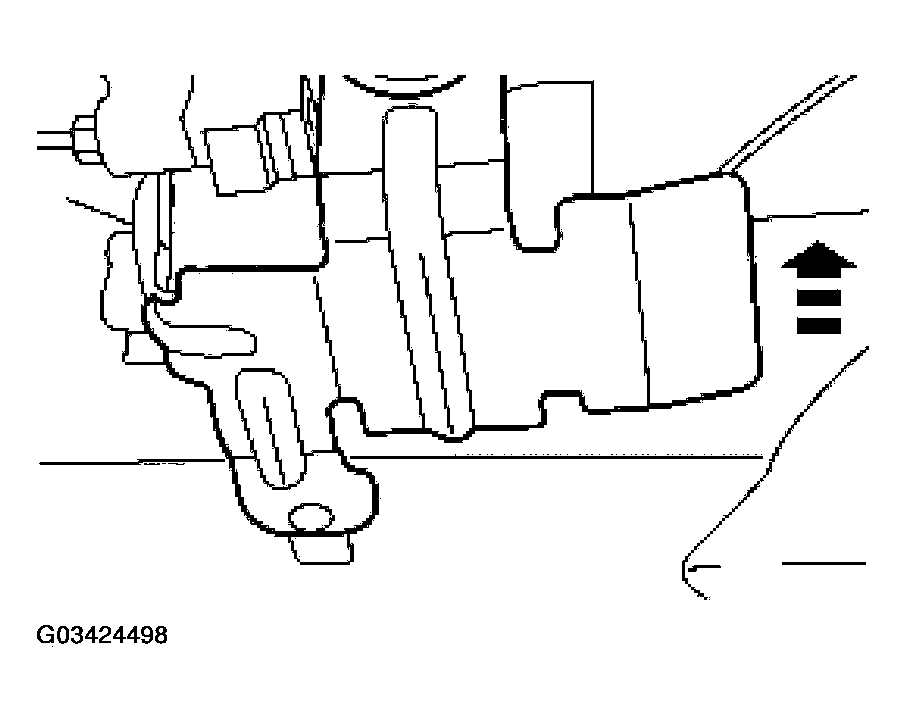

    Fig 4: Lifting Bracket Hooks From Frame And Lower HCU To Access Stability Assist Module
    G03424498Courtesy of FORD MOTOR CO.
  7. CAUTION: Be sure to lift straight up to avoid damage to the HCU components.
  8. Remove the stability assist module.
    • Remove the bolts.

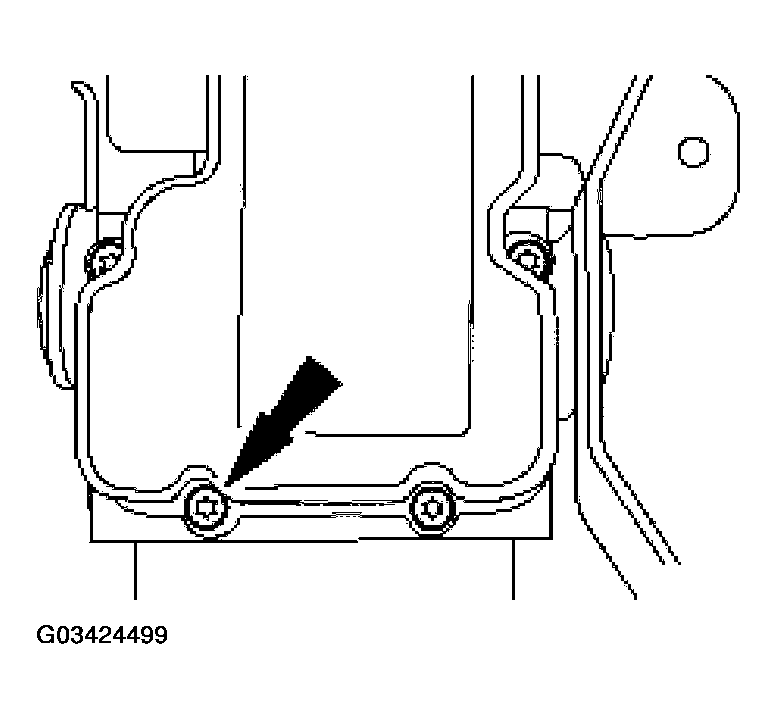

      Fig 5: Removing Stability Assist Module
      G03424499Courtesy of FORD MOTOR CO.
  9. CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the scan tool into the new module. Refer to MODULE CONFIGURATION .
    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn its strategy.
    NOTE: Clean the top of the HCU before installing the new module.
    NOTE: Clean the harness and module sides of the electrical connector before connecting. Clean and lubricate the weather seal gasket using Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A (WA-10) meeting Ford specification ESE-M1C171-A.

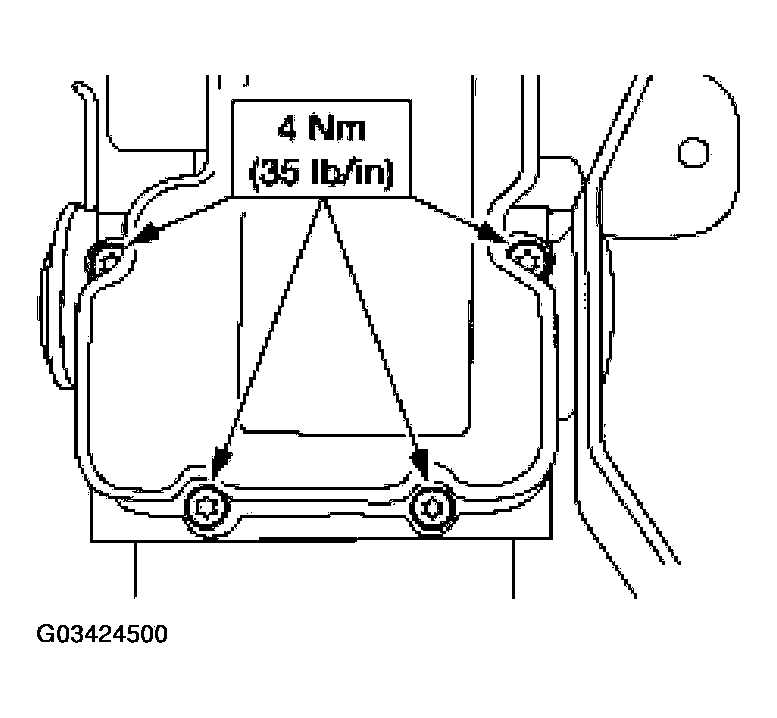

    Fig 6: Installing Stability Assist Module
    G03424500Courtesy of FORD MOTOR CO.

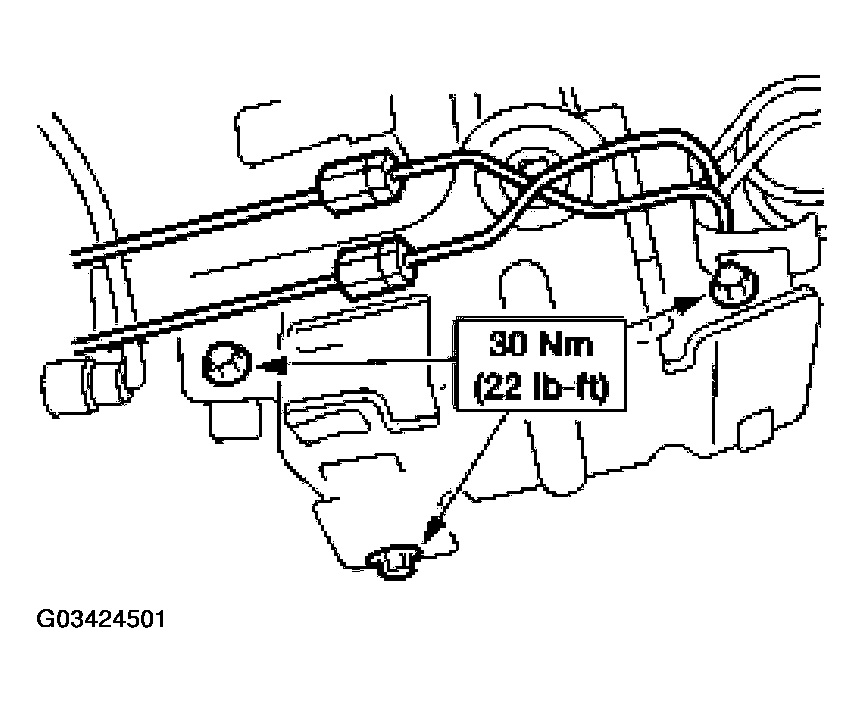

    Fig 7: Installing HCU Bracket To Frame Bolts
    G03424501Courtesy of FORD MOTOR CO.
  10. To install, reverse the removal procedure.
