Disassembly And Assembly Of Subassemblies: Piston: Assembly

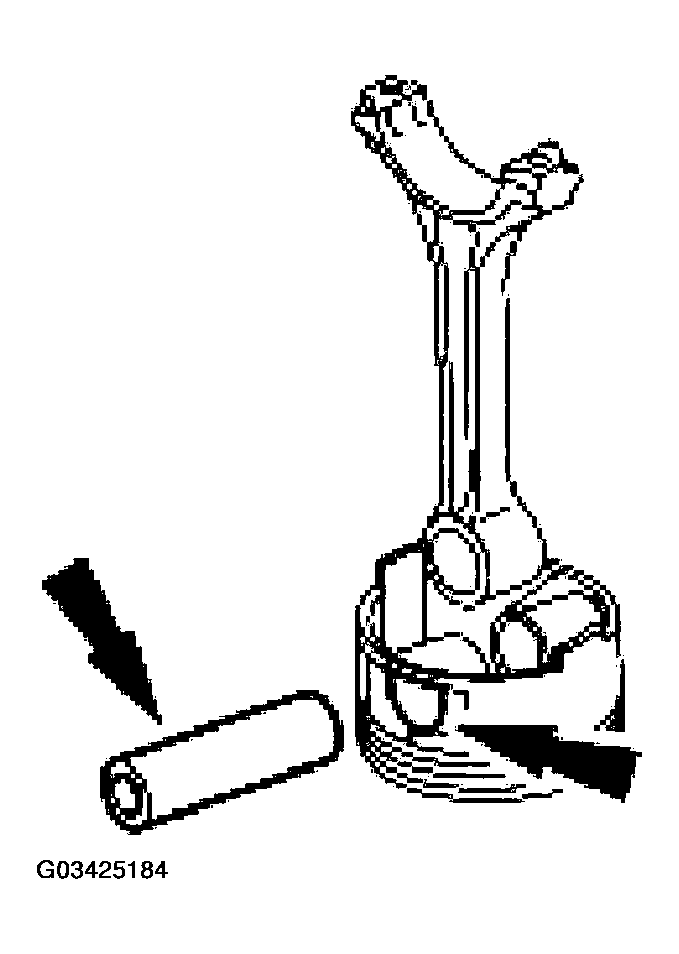

Lubricate the piston pin and piston pin bore with clean engine oil.

Fig 1: Identifying Piston Pin
Courtesy of FORD MOTOR CO.

NOTE: The connecting rod can be installed in either direction.

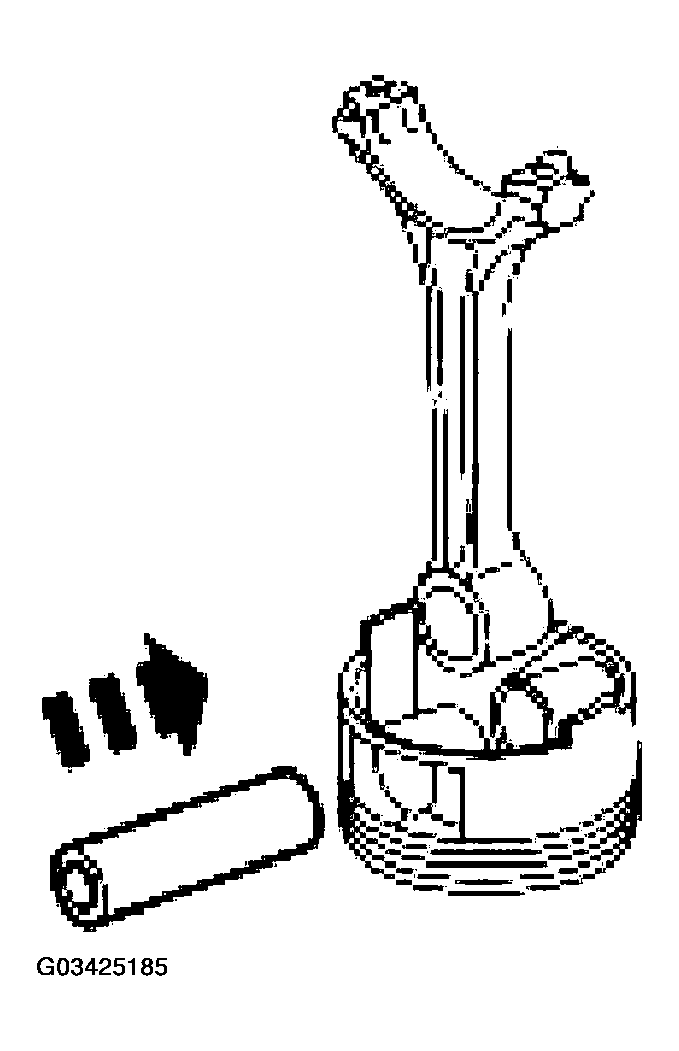

Fig 2: Identifying Position Piston Pin In Bore Aligned With Connecting Rod Bore

Courtesy of FORD MOTOR CO.

Position the piston pin in the bore aligned with the connecting rod bore.

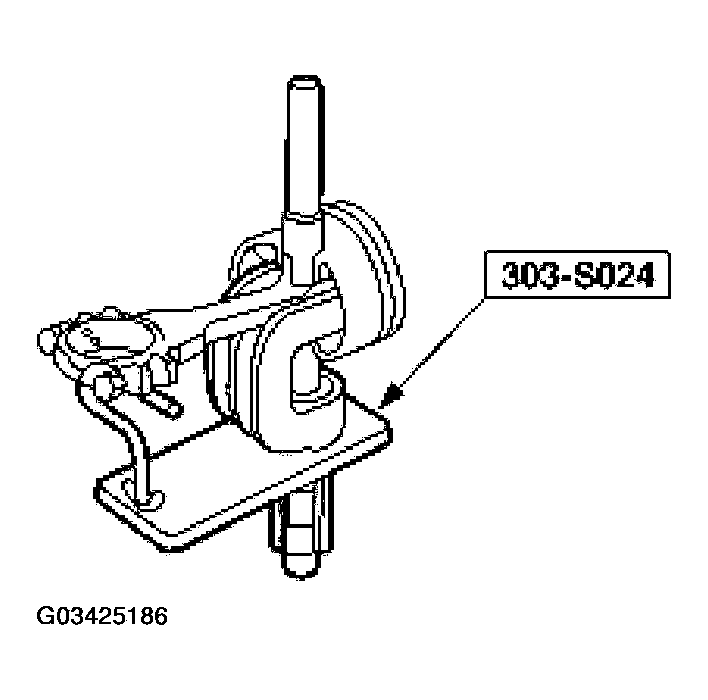

Using the special tool, press the piston pin into the piston and rod assembly.

Fig 3: Pressing Piston Pin Into Piston And Rod Assembly
Courtesy of FORD MOTOR CO.
