Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

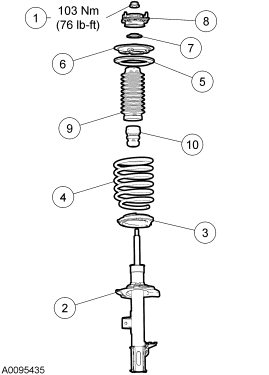

| Item | Part Number | Description |
|---|---|---|
| 1 | W706004-S | Strut piston rod-to-bushing nut |
| 2 | 18K001 LH/ 18045 RH | Strut |
| 3 | 5A307 | Lower coil spring insulator |
| 4 | 5310 | Coil spring |
| 5 | 5A318 | Upper coil spring insulator |
| 6 | 5A306 | Bearing plate |
| 7 | 3K099 | Bearing |
| 8 | 18A007 | Strut upper bushing |
| 9 | 18A179 | Dust boot |
| 10 | 18061 | Bumper |
