Specific System Conditions
WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The suction pipe will be cold and the discharge pipe will be hot.

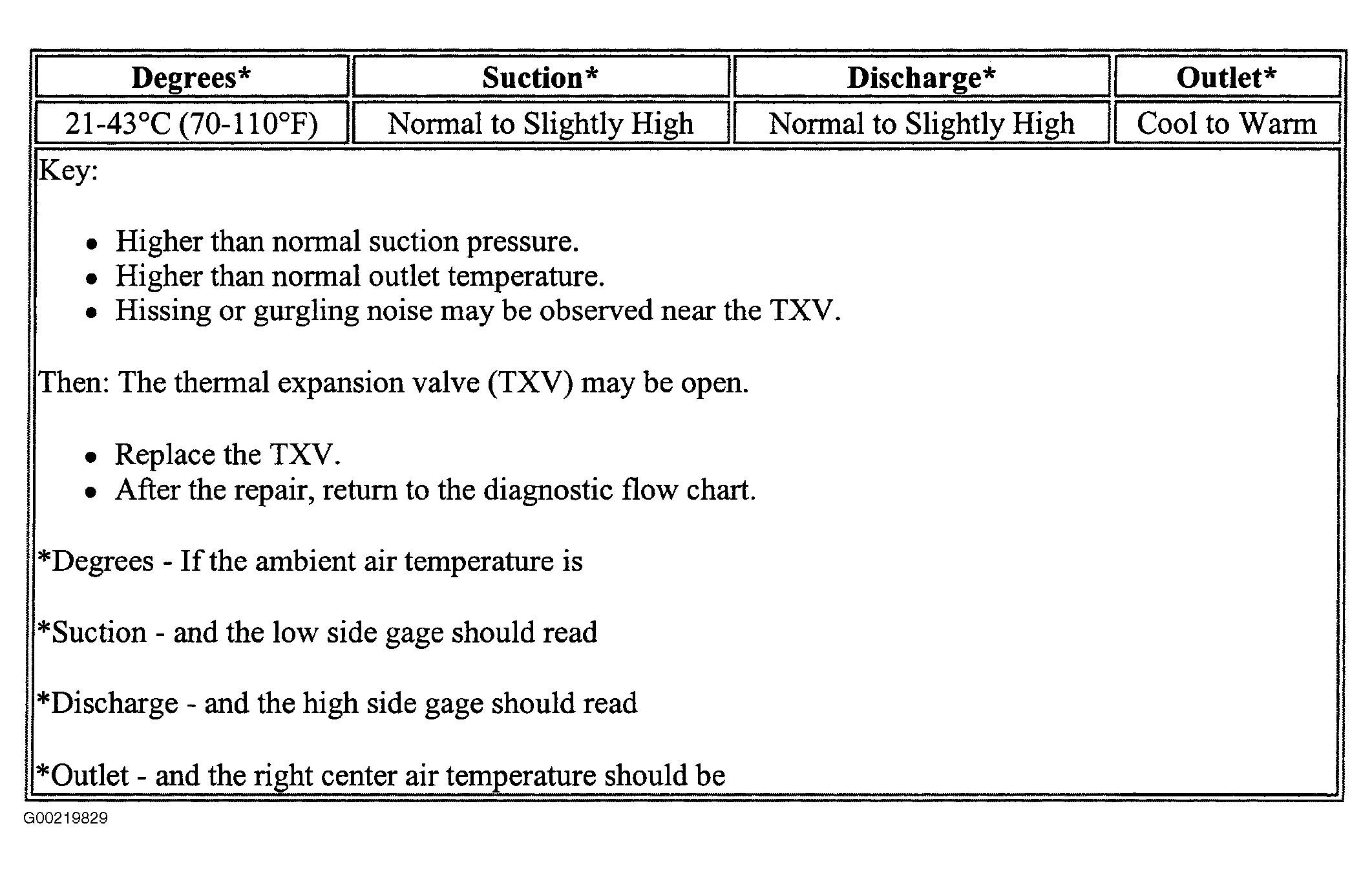

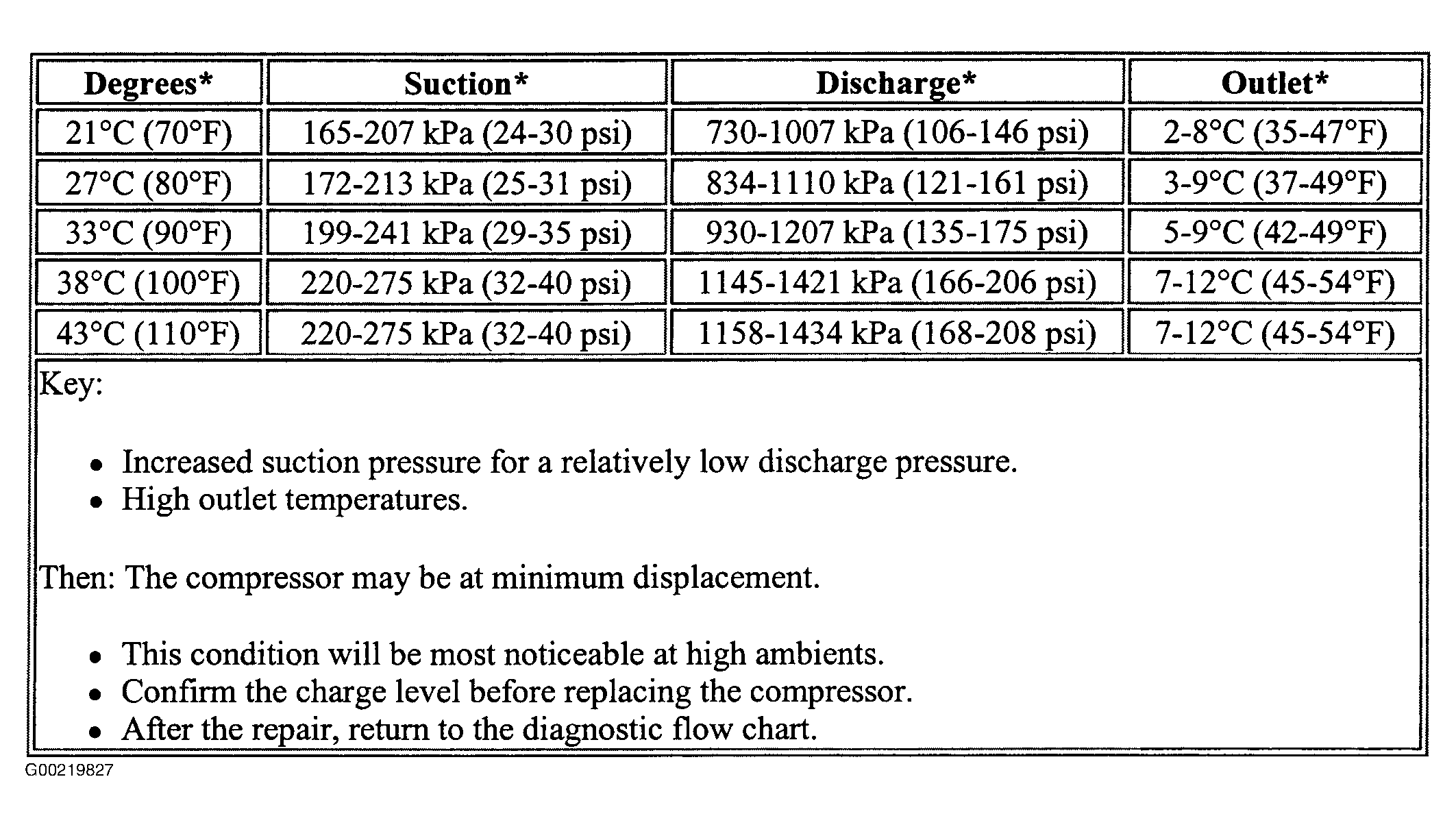

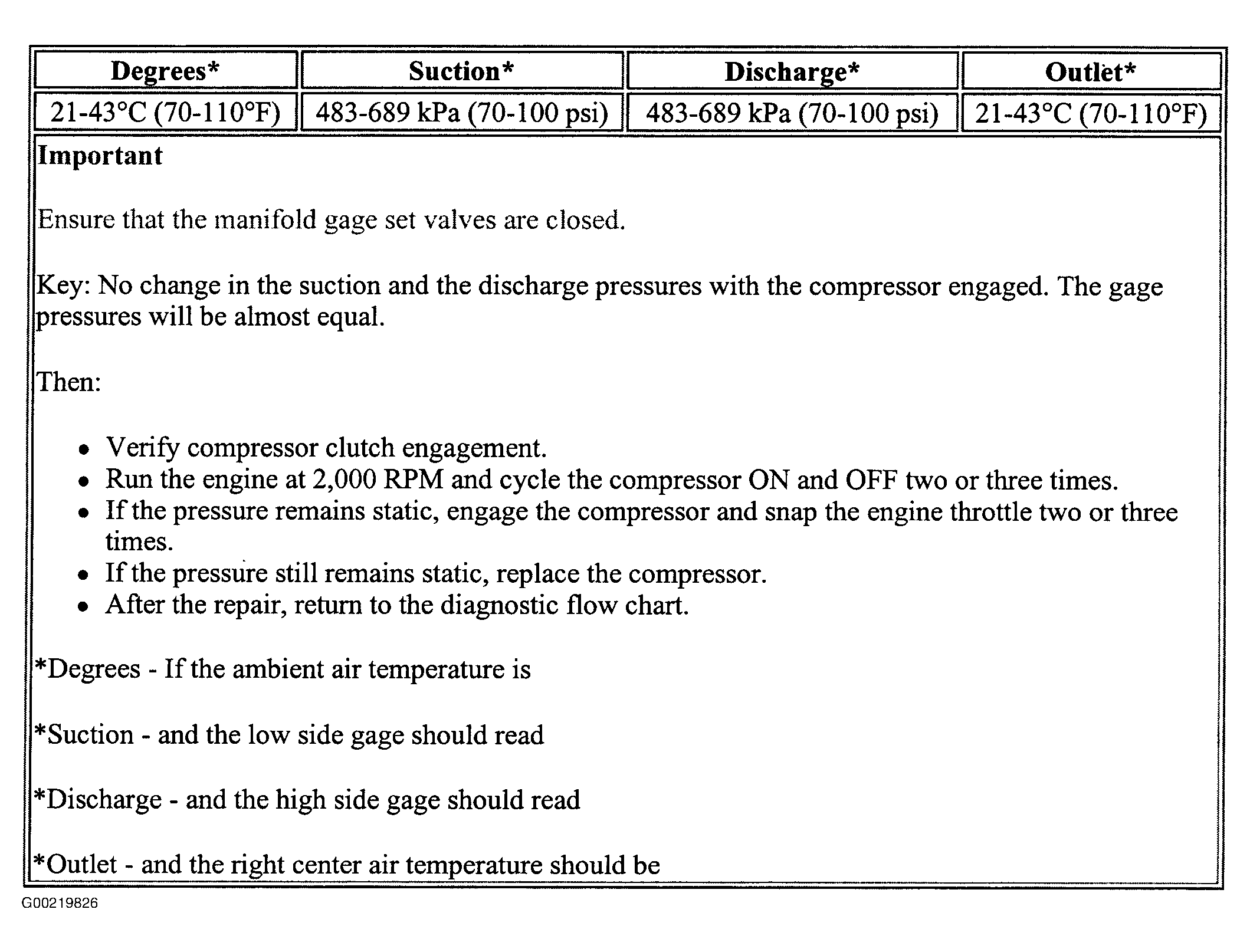

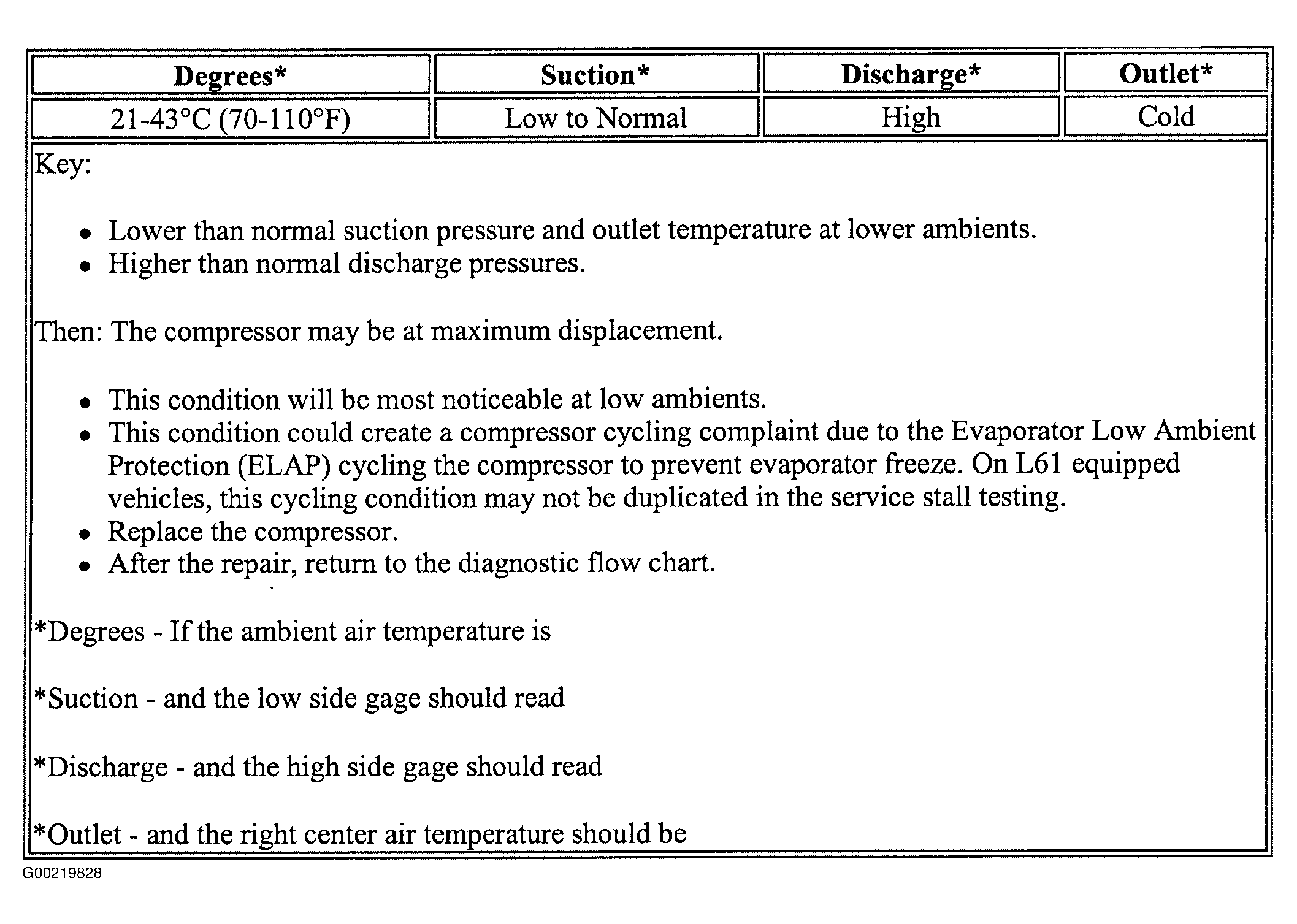

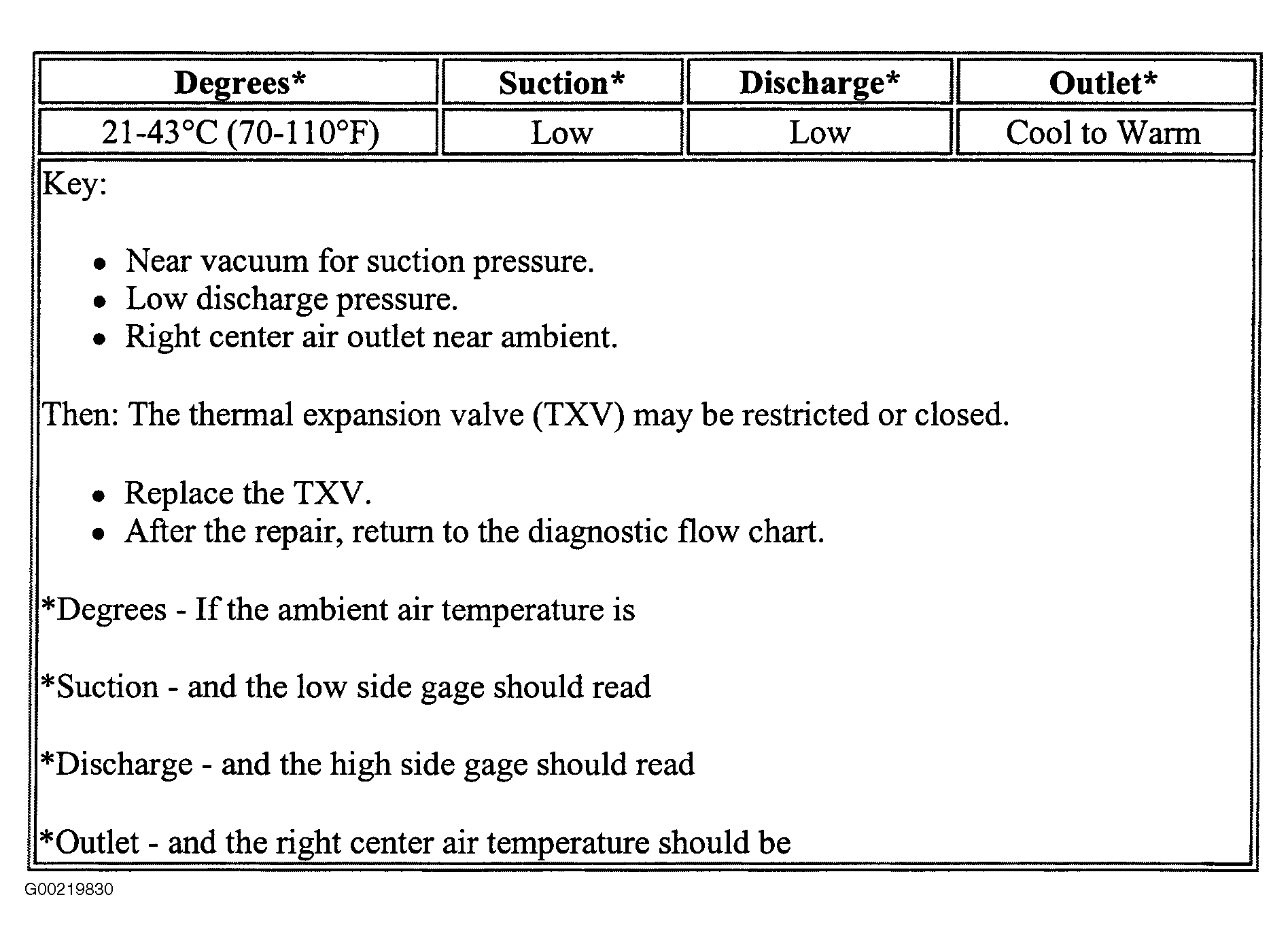

Statements in the following table illustrations contain additional information to help you confirm your diagnosis and lead you to a corrective action. See Fig 1 -Fig 5 . When all pressure and temperature readings fall within the ranges of a given table, use that table to repair the vehicle.
