Master window control switch: Schematic

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

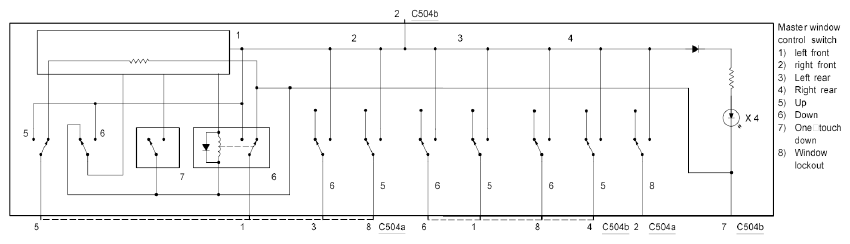

Fig 1: Master Window Control Switch Schematic
G06303562Courtesy of FORD MOTOR CO.
