Window control switch, passenger side (14489): Schematic

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

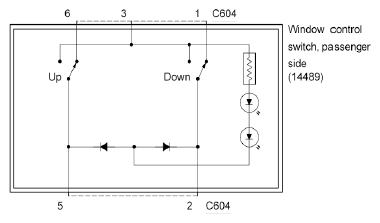

Fig 1: Window Control Switch, Passenger Side (14489) Schematic
G06303564Courtesy of FORD MOTOR CO.
