Master Window Control Switch - Fusion/Milan: Terminals

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

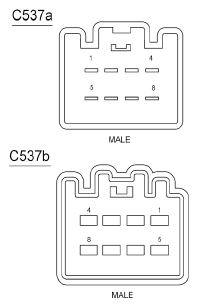

Fig 1: Identifying Master Window Control Switch Terminals (Fusion/Milan)
G06357980Courtesy of FORD MOTOR CO.
