Multifunction Switch, Wiper/Washer Portion: Schematic

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

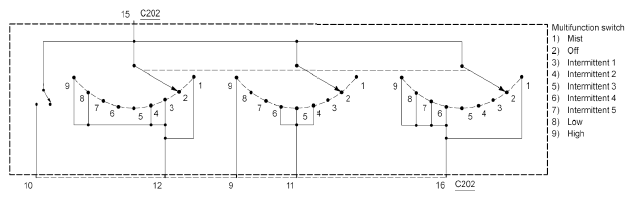

Fig 1: Identifying Multifunction Switch, Wiper/Washer Portion Schematic
G06357965Courtesy of FORD MOTOR CO.
