Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

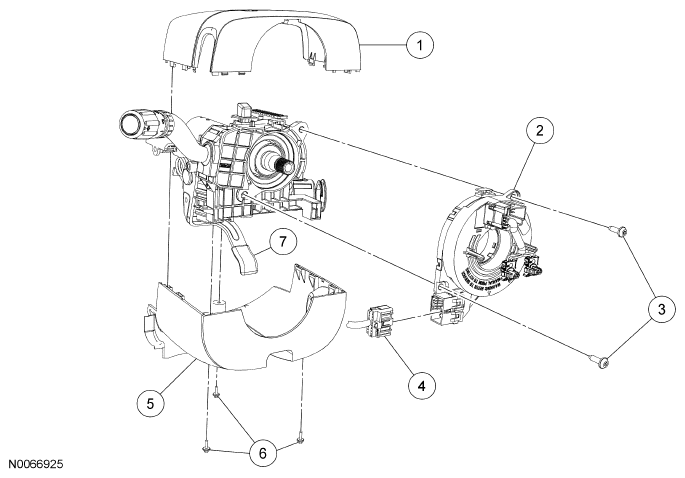

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 14A664 | Clockspring |
| 3 | W506942 | Clockspring screws (2 required) |
| 4 | - | Electrical connector (part of 14401) |
| 5 | 3K512 | Lower steering column shroud |
| 6 | - | Lower steering column shroud screws (part of 3K512) (3 required) |
| 7 | - | Steering column tilt lock/unlock handle |
