Passenger Air Bag Module: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

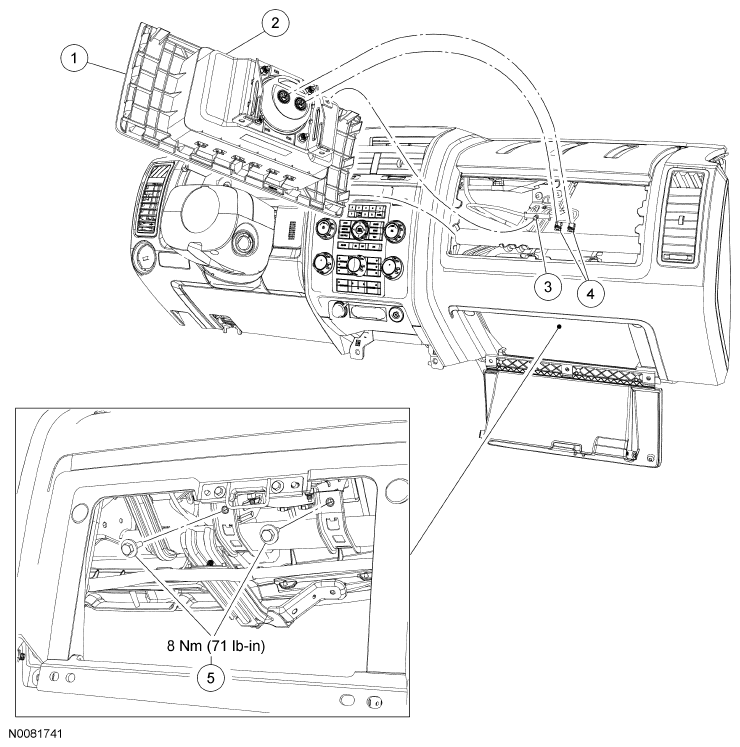

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications
G06100208Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 04338 Passenger air bag cover
2 044A74 Passenger air bag module assembly
3 - Wire harness routing clip (part of 14401)
4 - Passenger air bag module electrical connectors (part of 14401) (2 required)
5 W505422 Passenger air bag module bolts (2 required)
