Safety Canopy Module: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

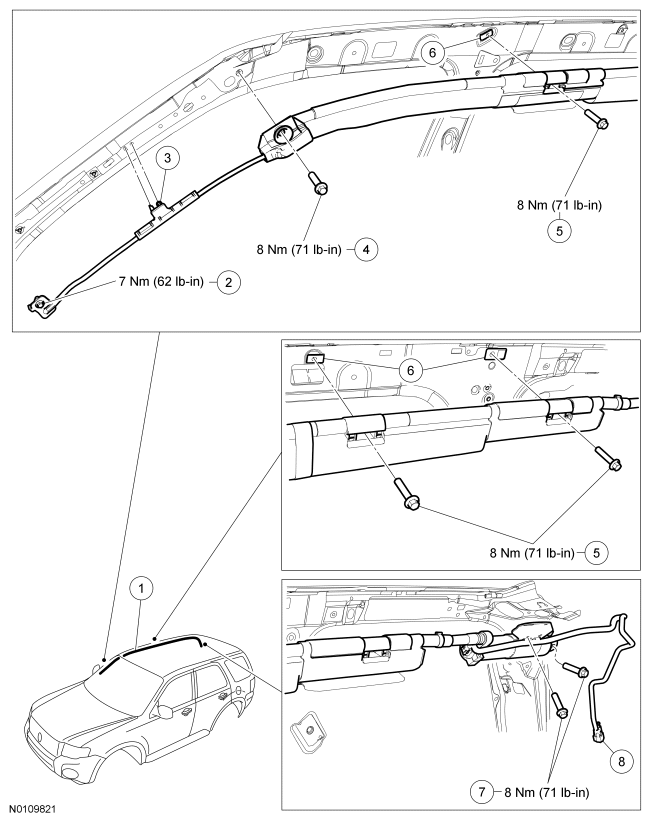

RH side shown, LH similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 | Safety Canopy® module |
| 2 | - | A-pillar tether bolt (part of 042D95) |
| 3 | - | A-pillar tether pin-type retainer (part of 042D95) |
| 4 | W706681 | A-pillar Safety Canopy® module bolt |
| 5 | W711248 | Safety Canopy® module bolts (3 required) |
| 6 | W520822 | Safety Canopy® module U-nuts (5 required) |
| 7 | W500213 | Safety Canopy® module rear bolts (2 required) |
| 8 | - | Safety Canopy® module electrical connector (part of 14A005) |
