Side Impact Sensor - First Row, B-Pillar: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

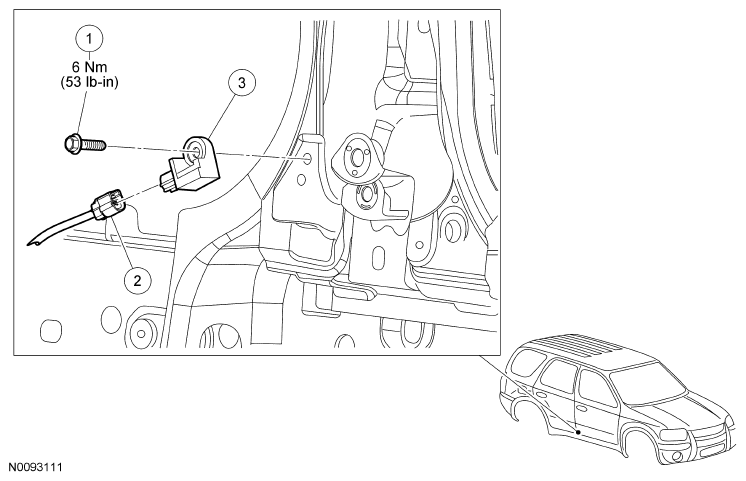

Fig 1: Side Impact Sensor - First Row (B-Pillar) With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W713759	Side impact sensor bolt
2	-	Electrical connector (part of 14A005)
3	14B345	Side impact sensor
