Passive Anti-Theft Transceiver Module Connector - C252

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

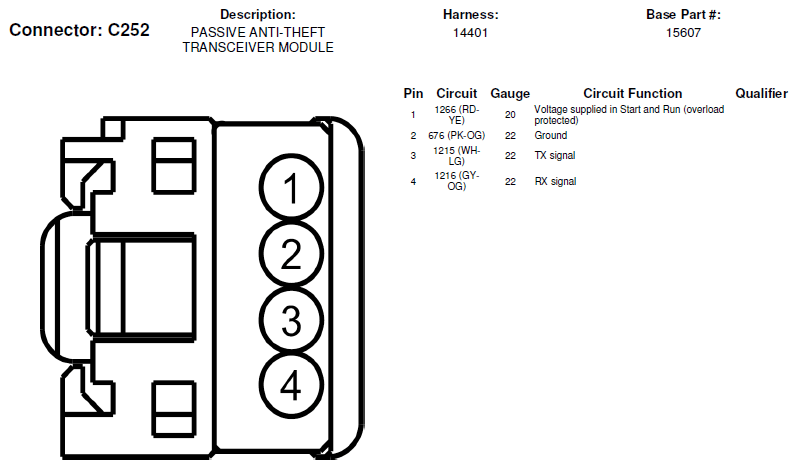

Fig 1: Passive Anti-Theft Transceiver Module Connector End View (C252)
G06414158Courtesy of FORD MOTOR CO.
