Audio Unit: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

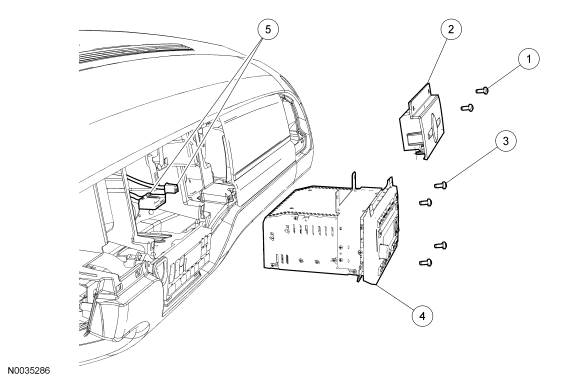

Fig 1: Identifying Audio Unit Components
GF0019066Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Clock screws (2 required)
2 15000 Clock
3 - Audio unit screws (4 required)
4 18C895 Audio unit
5 - Audio unit electrical connectors (part of 14401)
